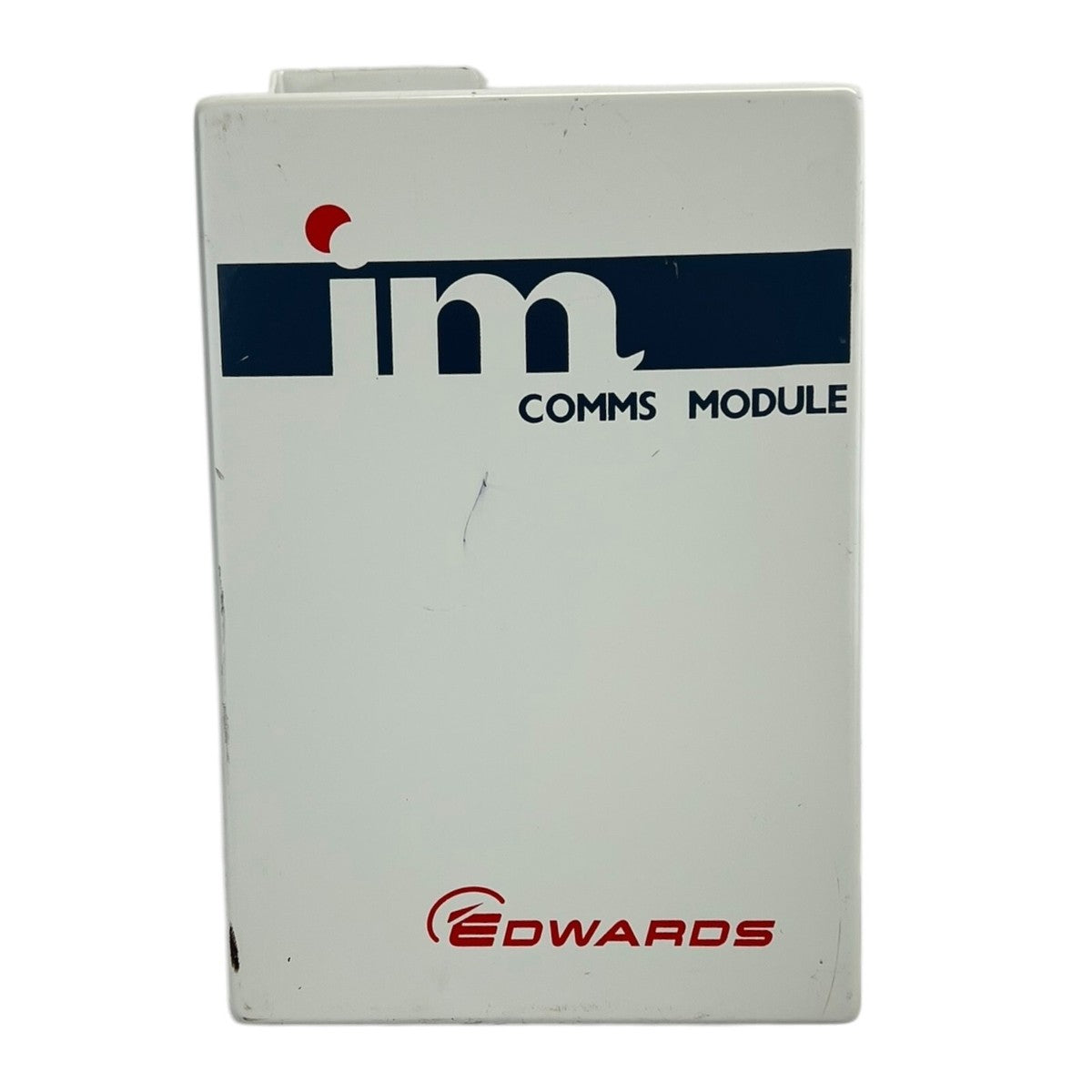

Edwards D37232000 iM RS-232 Serial Communications Module for Dry Vacuum Pump Systems
- Regular price
- $2,449.00
- Sale price
- $2,449.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D37232000
Description
The Edwards D37232000 is an iM Serial Communications Module designed to provide computer or process-tool communication with compatible Edwards semiconductor dry vacuum pumping systems. It uses RS-232 serial communication to enable remote monitoring, status retrieval, parameter access, and pump control for Edwards iQDP, iH, and iL systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Vacuum Equipment |
| Part Number | D37232000 |
| Subcategory | Communication Module |
| Manufacturer Part Number | D372-32-000 |
| Series | iM |
| Product Type | Serial Communications Module |
| Compatible Systems | Edwards iQDP, iH, and iL Dry Pumping Systems |
| Communication Protocol | EIA RS-232 |
| Baud Rate | 9600 baud |
| Data Format | 8 data bits, 1 stop bit, no parity |
| Serial Connector | 9-way D-type socket |
| System Connector | 4-way XLR |
| Operating Temperature | 0°C to 55°C |
| Operating Humidity | 25% to 95% relative humidity at 40°C |
| Maximum Operating Altitude | 4500 meters |
| Mounting Options | Pump System, Wall, or Structural Frame |
| Weight | 2.20 lbs |
Information About D37232000
The D37232000 is an Edwards iM series Serial Communications Module, officially identified by the manufacturer as D372-32-000. The enclosed module incorporates an internal serial interface card and connects to a compatible dry pumping system through a four-way XLR connection while providing a nine-way D-type serial connection for external control equipment. It is compatible with Edwards iQDP, iH, and iL semiconductor dry pumping systems and can communicate with a computer, programmable controller, or suitable Supervisory Control and Data Acquisition software. The serial interface uses the EIA RS-232 protocol at 9600 baud with eight data bits, one stop bit, and no parity for structured pump control and monitoring.
Key Features:
- RS-232 Serial Communication: Provides an EIA RS-232 interface for communication between compatible Edwards dry pumping systems and external control equipment.
- Dry Pump Compatibility: Designed for use with Edwards iQDP, iH, and iL semiconductor vacuum pumping systems.
- Computer-Based Monitoring: Allows a connected computer to retrieve operating status and pump parameters through suitable control or Supervisory Control and Data Acquisition software.
- Remote Pump Control: Supports software-derived control commands without requiring direct electrical wiring to individual pump sensors, valves, or other monitored components.
- Defined Serial Configuration: Communicates at 9600 baud using eight data bits, one stop bit, and no parity.
- Nine-Way Serial Connector: Provides a nine-way D-type socket for connection to compatible computer or process control equipment.
- Four-Way Pump Connection: Connects to the compatible Edwards pumping system through a four-way XLR interface.
- Flexible Mounting: Can be attached directly to a compatible iH or iL pumping system or installed separately on a wall or structural frame.
The D37232000 delivers the reliability and precision required for remote communication, operational monitoring, and control of compatible Edwards semiconductor dry vacuum pumping systems.
