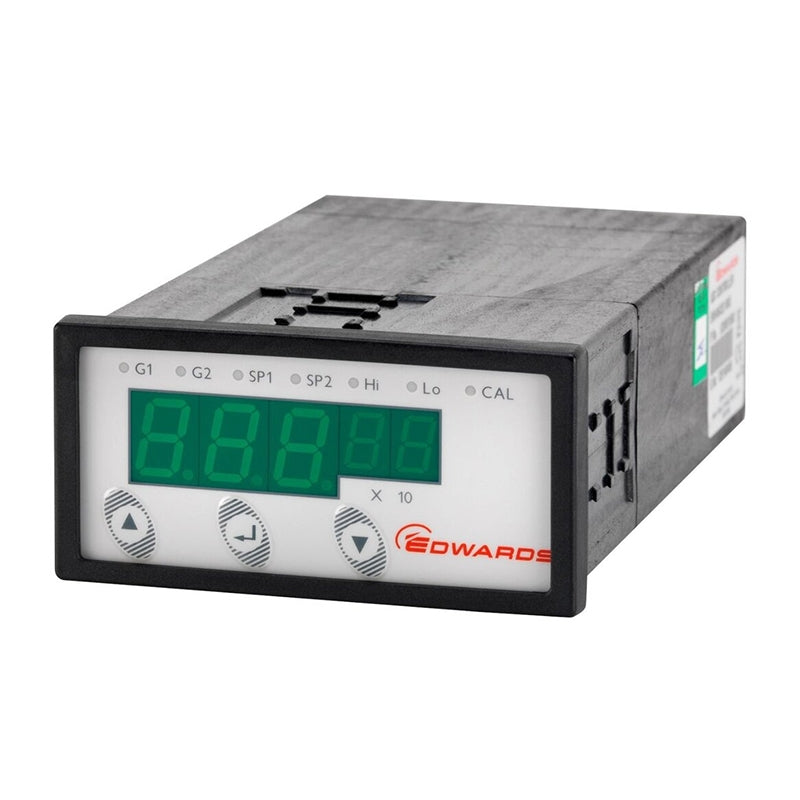

Edwards D39591500 ADC MkII Enhanced Digital Vacuum Gauge Controller
- Regular price
- $1,862.00
- Sale price
- $1,862.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D39591500
Description
The Edwards D39591500 ADC Active Digital Vacuum Gauge Controller is a dual-channel instrument designed to display and monitor pressure readings from compatible Edwards vacuum gauges. It features a high-brightness LED display, selectable measurement units, analog outputs, set-point relays, and serial communication for integration with vacuum monitoring and control systems.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Edwards |
|
Category |
Measuring Instruments |
|
Part Number |
D39591500 |
|
Subcategory |
Vacuum Controllers |
|
Product Series |
ADC MkII Enhanced |
|
Gauge Compatibility |
Compatible Edwards active vacuum gauges |
|
Display Type |
High-brightness green LED |
|
Power Supply |
100–240 V AC |
|
Input Frequency |
47–63 Hz |
|
Rated Power |
15 W |
|
Analog Outputs |
2 × 0–10 V DC |
|
Set-Point Relays |
2 voltage-free changeover relays |
|
Communication Interface |
RS-232 |
|
Communication Connector |
RJ45 female |
|
Enclosure Rating |
IP40 |
|
Operating Temperature |
0 to +40°C |
|
Storage Temperature |
−30 to +70°C |
|
Mounting |
Panel or benchtop |
|
Panel Cutout |
Approximately 92 × 45 mm |
|
Weight |
0.33 kg |
Information About D39591500
The D39591500 belongs to the Edwards ADC MkII Enhanced controller range, designed for monitoring compatible active vacuum gauge heads. Its two measurement channels allow readings from two connected gauges to be monitored using a single instrument. The controller automatically recognizes compatible gauges and selects the appropriate calibration lookup table for pressure display in mbar, Torr, pascals, or volts. Its compact 1/8 DIN enclosure supports panel or benchtop installation, while RS-232 communication and configurable relay outputs facilitate integration with external equipment.
Key Features:
-
Dual-Channel Monitoring: Supports connection and monitoring of up to two compatible gauge heads.
-
Automatic Gauge Recognition: Identifies compatible Edwards gauges and loads the appropriate lookup table.
-
LED Display: Provides a high-brightness green display for clear pressure readings.
-
Multiple Display Units: Shows measurements in mbar, Torr, pascals, or volts.
-
Analog Outputs: Provides two 0–10 V DC outputs for external monitoring.
-
Set-Point Relays: Includes two voltage-free changeover relays rated at 1 A at 48 V DC or 2 A at 24 V DC.
-
Serial Communication: Features an RS-232 interface for connection to compatible monitoring and control systems.
The D39591500 delivers the reliability and precision required for vacuum pressure monitoring, gauge readout, and vacuum system control.
