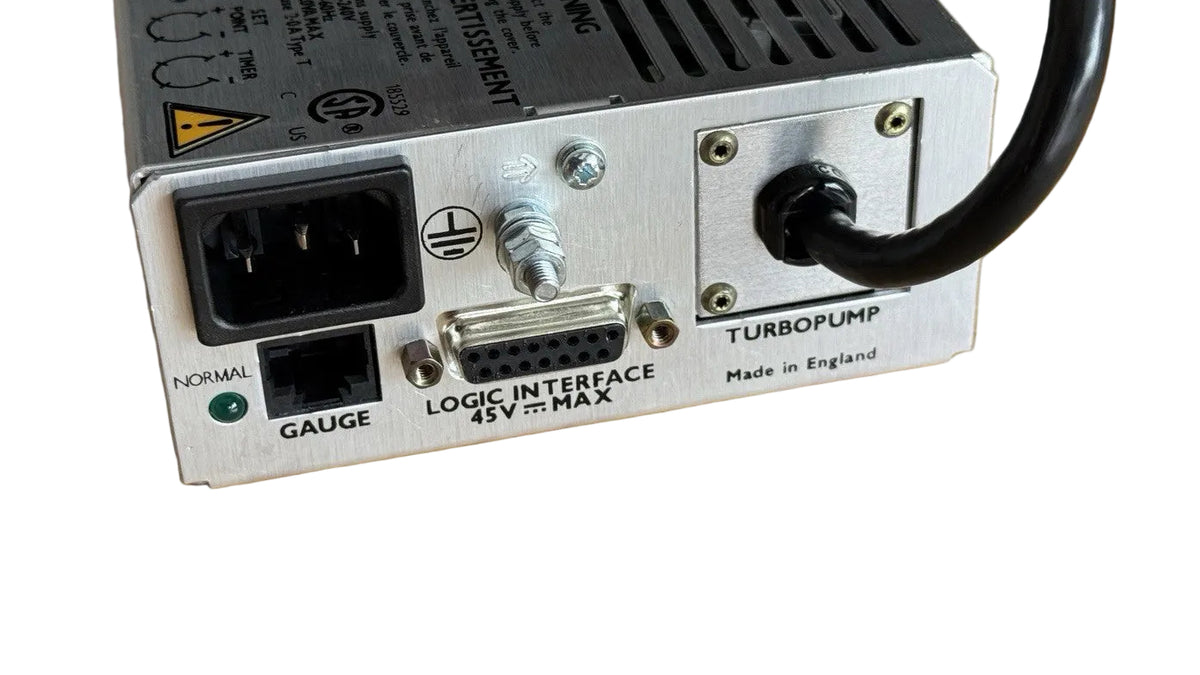

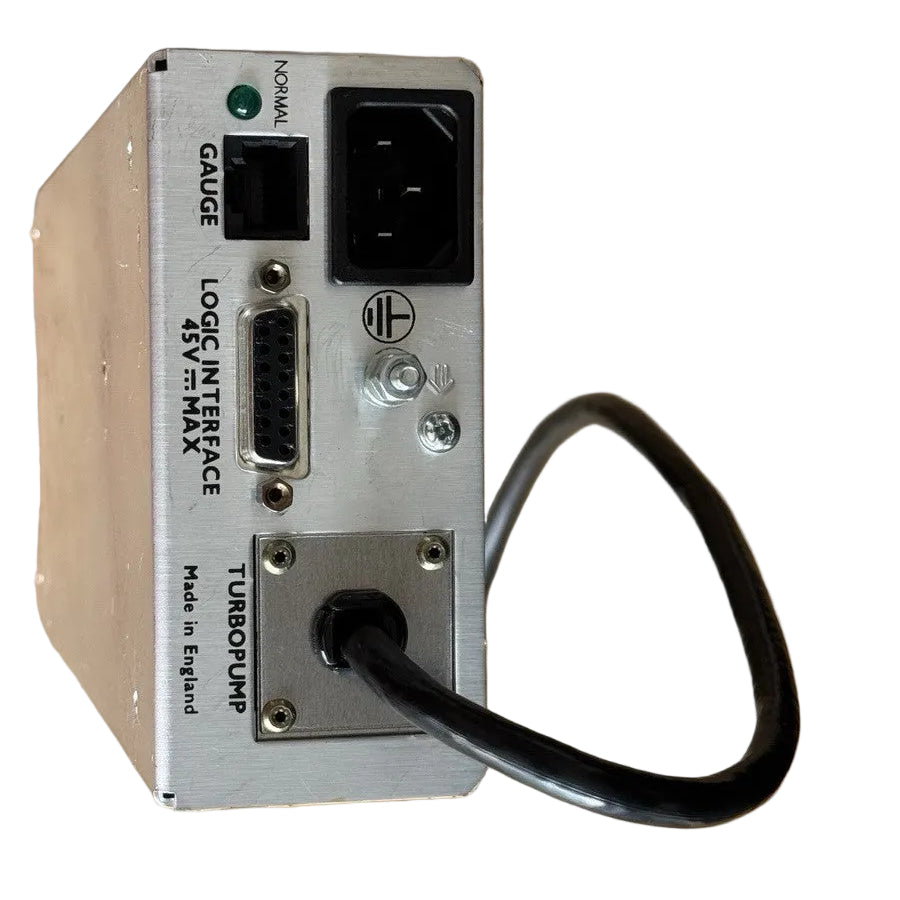

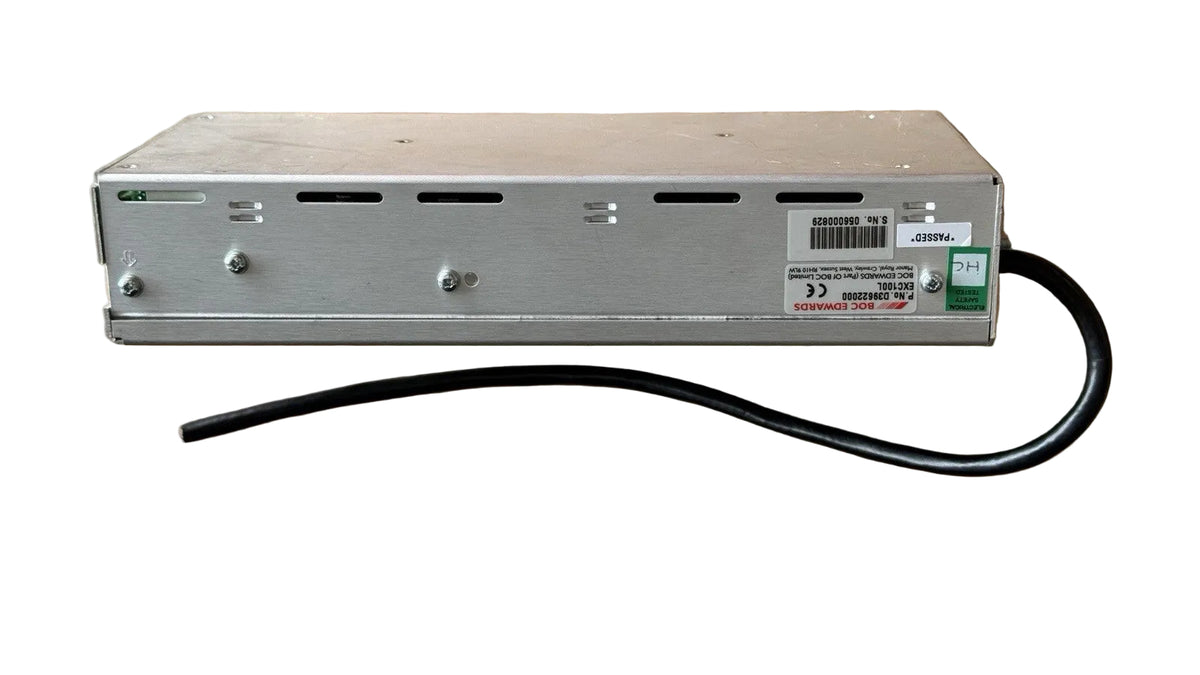

Edwards D39622000 EXC 100L Turbo Pump Controller for EXT Pumps
- Regular price
- $4,265.00
- Sale price
- $4,265.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D39622000
Description
The Edwards D39622000 is an EXC 100L turbo pump controller that supplies electrical power and operating signals to compatible EXT turbomolecular pumps. It combines an auto-ranging power supply, motor-speed regulation, and logic-interface control for integration into vacuum equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Power Supplies |
| Part Number | D39622000 |
| Subcategory | Power Supply |
| Model | EXC 100L |
| Alternate Part Number Format | D396-22-000 |
| Product Type | Turbomolecular pump controller |
| Compatible Pumps | Edwards EXT 70, EXT 70H, EXT 250, EXT 255H |
| Input Supply Type | Single-phase AC; auto-ranging within specified limits |
| Pump Supply | Regulated DC |
| Operating Interface | External logic interface |
| Front-Panel Controls | None |
| Motor Feedback | Pump Hall-effect rotor-position and speed signals |
| Power-Failure Backup | Regenerative supply using the pump motor |
| Supported Accessory Supplies | Vent valve, air cooler, and connected AIM gauge |
| Regenerative Accessory Cutoff | Below 50% of full pump rotational speed |
| Weight | 3.20 lbs |
Information About D39622000
The D39622000 is designed for Edwards EXT 70, EXT 70H, EXT 250, and EXT 255H pumps. It converts a compatible single-phase electrical supply into regulated DC power for pump operation. Hall-effect signals from the pump provide rotor-position and speed information for motor commutation and speed regulation. The controller has no front-panel controls and operates through external equipment connected to its logic interface.
Key Features:
- Auto-Ranging Supply: Adjusts automatically to the incoming electrical supply within its specified voltage range.
- Pump Motor Control: Generates the electrical supply and control signals required by compatible EXT pumps.
- Feedback-Based Regulation: Uses pump Hall-effect signals to control motor commutation and rotational speed.
- Logic-Interface Operation: Accepts operating commands from connected external control equipment.
- Automatic Start Configuration: Allows the mating logic plug to be configured for startup when controller power is applied.
- Regenerative Backup: Uses the rotating pump motor as a generator following an electrical supply failure.
- Accessory Power Support: Maintains connected vent-valve, air-cooler, and AIM gauge supplies until pump speed falls below 50% of full speed.
The D39622000 delivers the reliability and precision required for coordinated turbomolecular pump operation in compatible analytical and vacuum systems.
