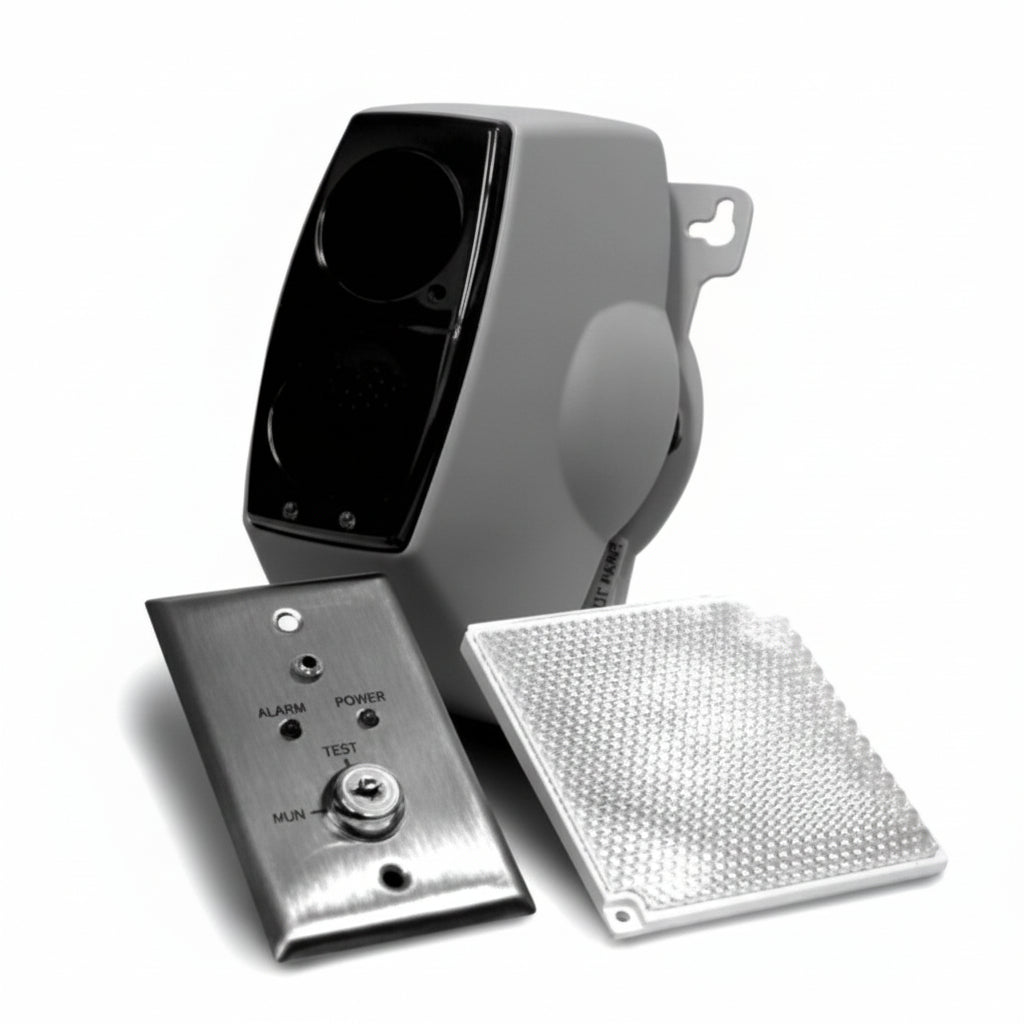

Edwards EC-100R Reflective Beam Smoke Detector with 330 ft Detection Range
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EC-100R
Description
The Edwards EC-100R is a reflective beam smoke detector designed for fire detection in large, open areas. It uses an infrared beam and a remote reflector to identify smoke through changes in light transmission across distances of up to 330 feet. The detector is suitable for applications such as warehouses, industrial facilities, atriums, and other spaces where conventional smoke detectors may be difficult to install or maintain.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Fire Safety |
| Part Number | EC-100R |
| Subcategory | Reflective Beam Smoke Detectors |
| Product Series | EC Series |
| Detector Type | Reflective Beam Smoke Detector |
| Detection Technology | Infrared Optical Beam |
| Optical Wavelength | 880 nm |
| Detection Range | 160–330 ft (48.77–100 m) |
| Beam Coverage Width | Up to 60 ft (18.3 m) |
| Reflector Quantity | Four reflectors |
| Operating Voltage | 10.2–30 VDC |
| Detector Configuration | Four-wire |
| Standby Current | Less than 4 mA |
| Alarm/Trouble Current | Less than 14 mA |
| Alarm Thresholds | 25%, 35%, and 50% obscuration |
| Operating Temperature | 32°F to 100°F (0°C to 37°C) |
| Maximum Relative Humidity | 93%, non-condensing |
| Dimensions (H × W × D) | 8.25 × 5.1 × 4.7 in |
| Alarm Contact Rating | Normally open, 2 A at 30 VDC resistive |
| Trouble Contact Rating | Normally closed, 2 A at 30 VDC resistive |
| Signal Delay | 10 seconds for alarm and trouble |
| Reset Time | More than 5 seconds with power-down reset |
| Listings | UL, ULC, CE |
| Weight | 1.5 lbs |
Information About EC-100R
The EC-100R is part of the Edwards EC Series of reflective beam smoke detectors, combining an infrared transmitter and receiver in a single housing. Its four-reflector configuration supports detection distances ranging from 160 to 330 feet. The unit uses microprocessor-based signal processing and automatic gain compensation to account for gradual optical signal changes caused by lens contamination. It is designed for connection to compatible four-wire fire alarm control panels and supports remote testing through an optional ground-level test station.
Key Features:
- Reflective Beam Detection: Uses an infrared light beam and remote reflectors to detect smoke across large open spaces.
- Extended Detection Range: Supports beam distances from 160 to 330 feet (48.77 to 100 meters).
- Integrated Transmitter and Receiver: Combines both optical components in one detector enclosure.
- Automatic Gain Compensation: Adjusts for gradual signal deterioration caused by dust accumulation on the optical surfaces.
- Microprocessor Control: Processes optical signal changes to support consistent smoke detection.
- Selectable Alarm Thresholds: Provides obscuration settings of 25%, 35%, and 50%.
- Four-Reflector Configuration: Includes four reflectors and a test filter for the EC-100R model.
- Remote Testing Capability: Supports optional key-operated ground-level testing without direct access to the detector.
The EC-100R delivers the reliability and precision required for reflective smoke detection in large commercial, industrial, and institutional facilities.
