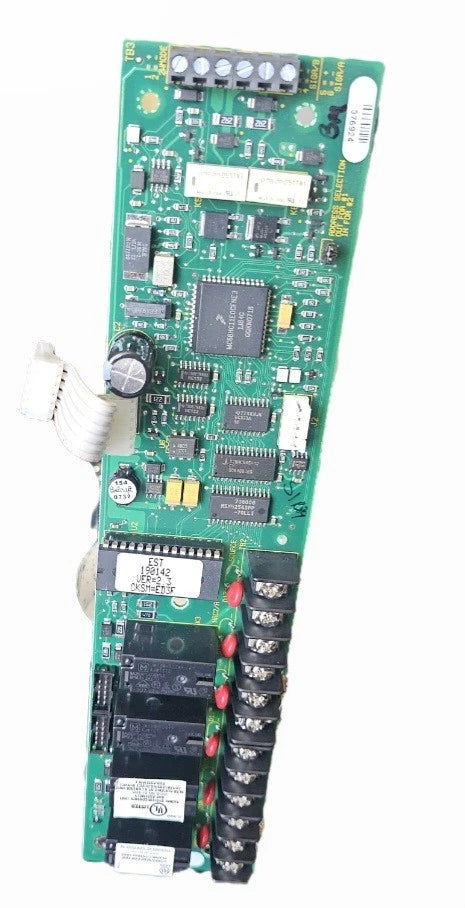

Edwards EST 2-LCX EST2 Signature Data Circuit Loop Expander Module for 2-LCD
- Regular price
- $1,587.00
- Sale price
- $1,587.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 2-LCX
Description
The Edwards EST 2-LCX is an EST2 Series Signature Data Circuit loop expander module designed to add a second intelligent signaling line circuit to a compatible 2-LCD loop controller. Edwards EST part number 2-LCX expands addressable device capacity while retaining Signature Series digital communication, electronic addressing, device mapping, and circuit supervision for commercial fire alarm systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards EST |
| Category | Fire Alarm & Life Safety |
| Part Number | 2-LCX |
| Subcategory | Signature Loop Expander Modules |
| Series | EST2 |
| Product Type | Signature Data Circuit Loop Expander Module |
| Module Function | Adds an Additional Signature Data Circuit |
| Host Controller | Edwards EST 2-LCD Signature Loop Controller |
| Number of Added Circuits | 1 Signature Data Circuit |
| Detector Capacity | Up to 125 Signature Detectors |
| Module Capacity | Up to 125 Signature Module Addresses |
| Maximum Added Addresses | Up to 250 Addresses |
| Communication Protocol | Edwards Signature Series Digital Communication |
| Circuit Type | Supervised Signature Data Circuit / SLC |
| Device Addressing | Electronic |
| Device Mapping | Automatic Signature Device Mapping |
| Compatible Devices | Edwards Signature Series Detectors and Modules |
| Installation Type | Plug-In Expansion Card |
| Standalone Operation | No; Requires Compatible 2-LCD Controller |
| Primary Application | EST2 Addressable Loop and Device Capacity Expansion |
| Weight | Approx. 0.5 lb (0.23 kg) |
Information About 2-LCX
The 2-LCX is an EST2 Series Signature loop expansion card intended for installation with a compatible Edwards 2-LCD Signature Loop Controller. Rather than operating as a standalone loop controller, the module expands the host controller with an additional Signature Data Circuit for compatible intelligent detectors and modules. The added circuit uses Edwards Signature digital communication technology and supports electronic device addressing, automatic mapping, device supervision, and diagnostic information from connected field devices. Its plug-in architecture allows an EST2 system to increase addressable field-device capacity without requiring a separate complete controller assembly, making it useful for panel expansion and higher-density fire detection installations.
Key Features:
- Signature Loop Expansion: Adds an additional Signature Data Circuit to a compatible EST2 loop controller.
- 2-LCD Compatibility: Designed to operate with the Edwards EST2 2-LCD Signature Loop Controller.
- Intelligent Device Support: Communicates with compatible Edwards Signature Series detectors and addressable modules.
- High Address Capacity: Supports up to 125 Signature detectors and 125 Signature module addresses on the added circuit.
- Digital Communication: Uses Edwards Signature fully digital signaling for communication with connected field devices.
- Electronic Addressing: Supports electronically assigned Signature device addresses without conventional DIP-switch addressing.
- Automatic Device Mapping: Enables the system to establish and maintain a map of devices connected to the expanded circuit.
- Device Supervision: Allows the host system to identify missing, added, or improperly connected Signature devices.
- Detector Diagnostics: Supports compatible detector maintenance and sensitivity information through the Signature architecture.
- Supervised Field Circuit: Continuously monitors the expanded signaling line circuit and connected addressable equipment.
- Plug-In Expansion Design: Adds loop capacity without requiring another complete standalone Signature controller.
- EST2 System Integration: Designed specifically around the modular architecture of Edwards EST2 fire alarm control equipment.
The 2-LCX delivers the reliability and precision required for expanding intelligent Signature device capacity in Edwards EST2 fire alarm and life-safety systems.
