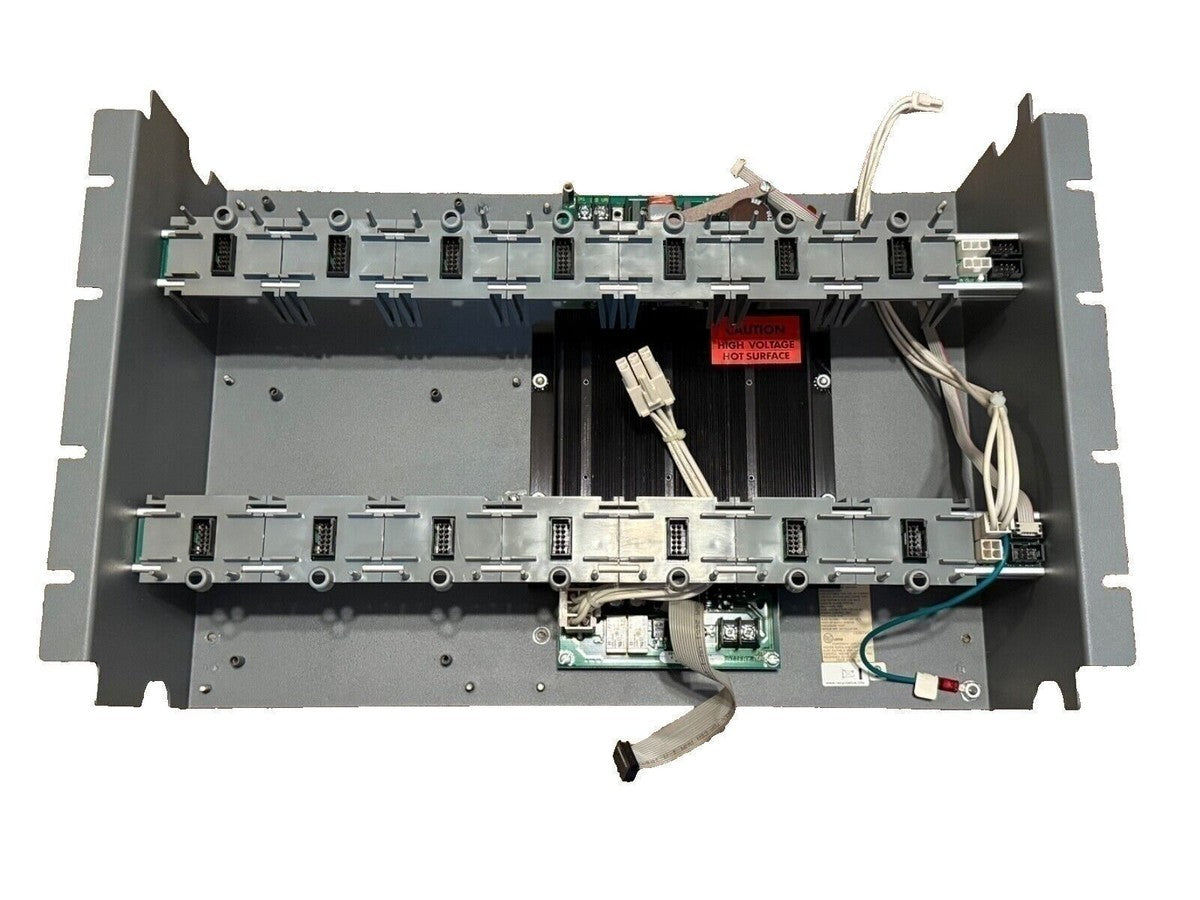

Edwards EST 3-CHAS7 EST3 7-Module Fire Alarm Control Panel Chassis Assembly
- Regular price
- $362.00
- Sale price
- $362.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3-CHAS7
Description
The Edwards EST 3-CHAS7 is an EST3 Series chassis assembly designed to provide the internal mounting structure for modular fire alarm control equipment within compatible EST3 lobby enclosures. Edwards EST part number 3-CHAS7 occupies one chassis space and accommodates seven local rail modules, up to two power supplies, and one half-footprint module for configurable life-safety system installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards EST |
| Category | Fire Alarm & Life Safety |
| Part Number | 3-CHAS7 |
| Subcategory | Fire Alarm Panel Chassis |
| Series | EST3 |
| Product Type | Modular Control Panel Chassis Assembly |
| Chassis Capacity | 7 Local Rail Modules |
| Power Supply Capacity | Up to 2 Compatible Power Supplies |
| Additional Module Capacity | 1 Half-Footprint Module |
| Chassis Space Required | 1 Chassis Space |
| Installation Location | Inside Compatible EST3 Enclosure / Wallbox |
| Compatible System | Edwards EST3 Fire Alarm and Life-Safety Systems |
| Module Architecture | EST3 Local Rail |
| Primary Function | Mechanical Mounting and Organization of EST3 Panel Electronics |
| Electrical Function | Passive Chassis; Function Determined by Installed Modules |
| Construction | Metal Chassis Assembly |
| Installation Type | Cabinet / Wallbox Internal Mounting |
| Application | Modular Fire Alarm Control Panel Assembly and Expansion |
| Weight | Approx. 6 lb (2.7 kg) |
Information About 3-CHAS7
The 3-CHAS7 is an EST3 Series chassis assembly engineered as part of the modular cabinet architecture used in Edwards EST3 fire alarm and life-safety systems. Its mechanical layout provides mounting capacity for seven local rail modules while also supporting as many as two compatible power supplies and a half-footprint module within the designated chassis area. The assembly installs inside compatible EST3 lobby enclosure wallboxes and provides the physical framework needed to organize interconnected control, communication, display, and power components. Because the chassis, enclosure backbox, doors, rail modules, and system electronics are selected according to the required EST3 configuration, the 3-CHAS7 supports flexible panel construction without functioning as an independent electronic control device.
Key Features:
- Seven Local Rail Positions: Provides mounting space for up to seven compatible EST3 local rail modules.
- Dual Power Supply Capacity: Accommodates as many as two compatible EST3 power supply assemblies.
- Half-Footprint Module Space: Includes capacity for one compatible half-footprint module within the chassis arrangement.
- Single Chassis Space: Occupies one designated chassis position within a compatible EST3 enclosure.
- EST3 System Compatibility: Designed specifically around the modular mechanical architecture of Edwards EST3 systems.
- Modular Panel Configuration: Allows control, communication, interface, and other local rail modules to be arranged according to system requirements.
- Integrated Equipment Support: Provides a common mounting structure for both system electronics and associated power equipment.
- Lobby Enclosure Integration: Designed for installation within compatible EST3 lobby enclosure wallboxes.
- Service-Oriented Layout: Organizes modules within the cabinet for installation, wiring, inspection, and maintenance access.
- Durable Construction: Provides the rigid mechanical support required for permanently installed life-safety control equipment.
- Expandable Architecture: Supports the scalable EST3 approach in which chassis and module combinations are selected for individual system requirements.
- Passive Mechanical Assembly: Requires compatible EST3 modules and power supplies to provide system functionality and does not operate independently.
The 3-CHAS7 delivers the reliability and precision required for organizing and supporting modular electronics in Edwards EST3 fire alarm and life-safety control systems.
