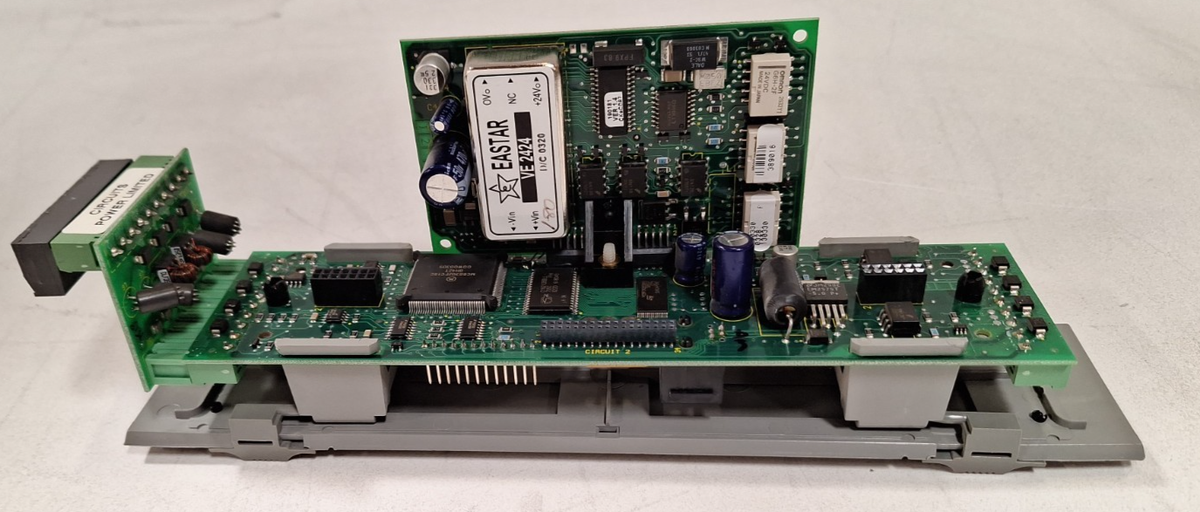

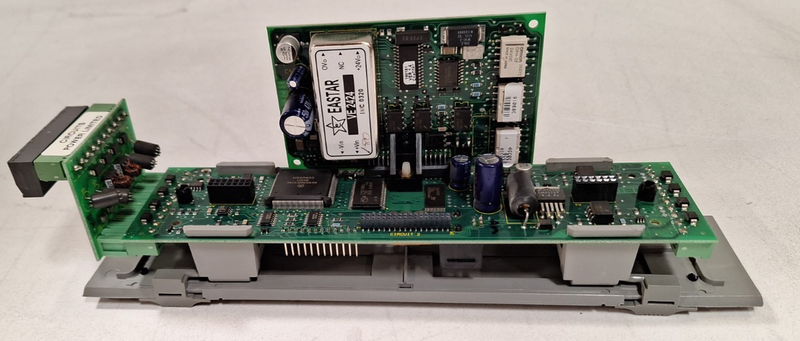

Edwards EST 3-DSDC EST3 Dual Signature Data Loop Controller Module
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3-DSDC
Description
The Edwards EST 3-DSDC is an EST3 Series dual Signature loop controller module designed to provide two intelligent signaling line circuits for compatible fire alarm and life-safety systems. Edwards EST part number 3-DSDC combines two Signature Data Controller circuits in a single local-rail assembly for communication, supervision, and control of addressable Signature detectors and modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards EST |
| Category | Fire Alarm & Life Safety |
| Part Number | 3-DSDC |
| Subcategory | Signature Loop Controllers |
| Series | EST3 |
| Product Type | Dual Signature Data Controller Module |
| Number of Signature Circuits | 2 |
| Detector Capacity | Up to 125 Detectors per Circuit / 250 Total |
| Module Address Capacity | Up to 125 Module Addresses per Circuit / 250 Total |
| Maximum Combined Capacity | 500 Signature Addresses |
| Communication Protocol | Edwards Signature Series Digital Communication |
| Circuit Configuration | Class A or Class B |
| Device Addressing | Electronic Addressing |
| Device Mapping | Automatic Mapping with Nonvolatile Storage |
| Detector Functions | Sensitivity Management and Maintenance Reporting |
| Panel Interface | EST3 Local Rail |
| Module Footprint | 1 Local Rail Module Space |
| Field Connections | Removable Terminal Blocks |
| Compatible Devices | Edwards Signature Series Detectors and Modules |
| Primary Application | Addressable Fire Detection and Signature Loop Control |
| Weight | Approx. 1.5 lb (0.68 kg) |
Information About 3-DSDC
The 3-DSDC is an EST3 local rail module that provides two independent Signature data circuits for high-capacity addressable fire alarm installations. Each circuit supports up to 125 Signature detectors and 125 Signature module addresses, allowing one 3-DSDC to manage as many as 250 detectors and 250 modules across both loops. The controller uses Edwards Signature digital communication technology with electronic addressing, automatic device mapping, nonvolatile mapping storage, detector sensitivity management, and diagnostic reporting for compatible field devices. Class A or Class B circuit configurations and EST3 local-rail integration allow the module to serve as a scalable detection and control interface in commercial, institutional, industrial, and campus fire alarm networks.
Key Features:
- Dual Signature Loops: Provides two independent Signature signaling line circuits from a single EST3 local rail module.
- High Device Capacity: Each loop supports up to 125 Signature detectors and 125 Signature module addresses.
- 500-Address Combined Capacity: Supports as many as 250 detectors plus 250 module addresses across both circuits.
- Signature Digital Protocol: Communicates digitally with compatible Edwards Signature Series detectors and modules.
- Electronic Addressing: Compatible Signature devices are electronically addressed without conventional mechanical address switches.
- Automatic Device Mapping: Creates and maintains a map of connected field devices to simplify commissioning and troubleshooting.
- Device Location Monitoring: Detects changes involving missing, added, or relocated Signature devices.
- Nonvolatile Mapping Storage: Retains circuit mapping information in nonvolatile memory for reliable system operation.
- Detector Sensitivity Management: Supports programmable sensitivity functions and maintenance reporting for compatible Signature detectors.
- Class A or Class B Wiring: Supports common addressable signaling circuit configurations for flexible system design.
- Local Rail Integration: Installs directly into the EST3 local rail architecture for panel power and system communication.
- Removable Field Terminals: Provides service-friendly terminal connections for Signature circuit field wiring.
The 3-DSDC delivers the reliability and precision required for high-capacity addressable detection, supervision, and Signature device control in Edwards EST3 fire alarm systems.
