Edwards EST 4-SDDC EST4 Dual Signature Driver Controller with Two 4-SDC Cards
- Regular price
- $2,592.00
- Sale price
- $2,592.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4-SDDC
Description
The Edwards EST 4-SDDC is an EST4 Dual Signature Driver Controller designed to provide two intelligent Signature Series signaling line circuits for commercial fire alarm and life-safety systems. Edwards EST part number 4-SDDC includes two 4-SDC Signature Driver Cards and supports digital communication, supervision, addressing, and control of Signature detectors and modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards EST |
| Category | Fire Alarm & Life Safety |
| Part Number | 4-SDDC |
| Subcategory | Signature Loop Controllers |
| Series | EST4 |
| Product Type | Dual Signature Driver Controller |
| Included Driver Cards | 2 × 4-SDC Signature Driver Cards |
| Number of Signature Circuits | 2 |
| Detector Capacity | Up to 125 Detectors per Circuit / 250 Total |
| Module Address Capacity | Up to 125 Module Addresses per Circuit / 250 Total |
| Circuit Wiring | Class B, Class A, or Class X |
| Maximum Isolators | Up to 64 per Signature Circuit |
| Communication Protocol | Edwards Signature Series Fully Digital Communication |
| Operating Power | 24 VDC Nominal via Panel Rail Assembly |
| SLC Voltage | 21 VDC Maximum |
| Standby Current | 268 mA, Including Connected Signature Device Load |
| Alarm Current | 309 mA, Including Connected Signature Device Load |
| Device Addressing | Automatic Electronic Addressing |
| Device Mapping | Automatic Mapping with Nonvolatile Storage |
| Maximum Controllers per Supported Node | Up to 5 Dual-Loop Controllers / 10 Signature Circuits |
| Module Footprint | 1 Local Rail Module Space |
| Field Wiring | Removable Terminal Blocks |
| Primary Application | Intelligent Fire Detection and Signature Device Loop Control |
| Dimensions | Approx. 13.5 × 7 × 4 in |
| Weight | Approx. 1.5 lb (0.68 kg) |
Information About 4-SDDC

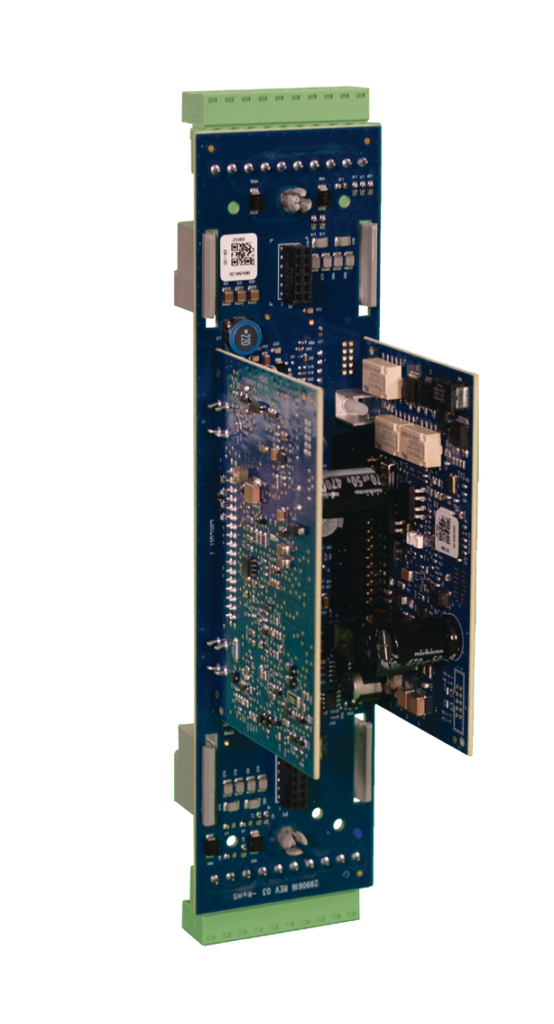

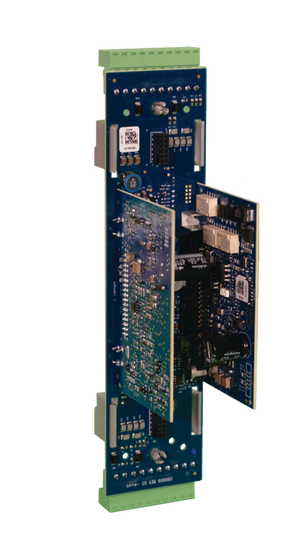

The 4-SDDC is an EST4 Series intelligent dual-loop controller assembly built around two removable 4-SDC Signature Driver Cards installed on a common controller platform. Each Signature circuit supports up to 125 detector addresses and 125 module addresses, providing combined controller capacity for as many as 250 detectors and 250 modules when both loops are fully configured. The circuits support Class B, Class A, and Class X wiring while providing electronic addressing, automatic device mapping, nonvolatile mapping data, device-location supervision, detector sensitivity management, and maintenance reporting. Installed on the EST4 local rail architecture, the controller receives its operating power and system communications through the panel and can be combined with additional dual-loop controllers to create high-capacity Signature device networks.
Key Features:
- Dual Signature Circuits: Includes two 4-SDC driver cards providing two independently supervised Signature signaling line circuits.
- High Device Capacity: Each circuit supports up to 125 Signature detectors plus 125 Signature module addresses.
- 500-Address Total Capacity: Two fully populated circuits can accommodate up to 250 detectors and 250 module addresses.
- Digital Signature Communication: Provides fully digital communication with compatible Edwards Signature Series field devices.
- Multiple Wiring Classes: Supports Class B, Class A, and Class X Signature circuit configurations.
- Electronic Device Addressing: Signature devices use electronic addressing rather than conventional mechanical address switches.
- Automatic Device Mapping: Maintains a map of connected devices and assists in identifying missing, added, or relocated equipment.
- Nonvolatile Mapping Data: Retains Signature circuit mapping information without depending on volatile operating memory.
- Detector Management: Supports automatic day/night sensitivity functions and maintenance reporting for compatible Signature detectors.
- CO Sensor Monitoring: Supports service-life monitoring for compatible Signature devices incorporating carbon monoxide sensing.
- Circuit Isolation Support: Accommodates up to 64 compatible isolators per Signature circuit for enhanced fault isolation and survivability.
- Scalable EST4 Architecture: Up to five dual-loop controllers can be used per supported node configuration, providing as many as ten Signature circuits.
The 4-SDDC delivers the reliability and precision required for intelligent detection, device supervision, and high-capacity Signature loop control in Edwards EST4 fire alarm and life-safety systems.
