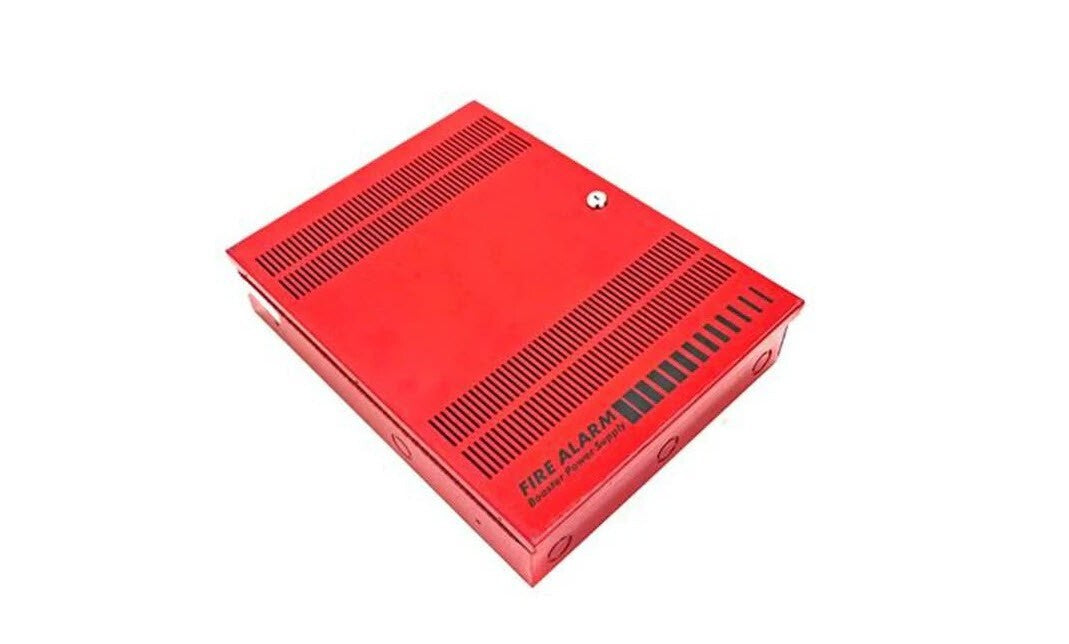

Edwards EST BPS6A/230 6.5A 220-240VAC Remote Fire Alarm Booster Power Supply
- Regular price
- $545.00
- Sale price
- $545.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BPS6A/230
Description
The Edwards EST BPS6A/230 is a 6.5 A remote booster power supply designed to expand supervised 24 VDC notification appliance power in fire alarm and life-safety systems. Edwards EST part number BPS6A/230 operates from 220–240 VAC mains and provides four configurable NAC/auxiliary outputs, battery charging and supervision, signal synchronization, and auxiliary power for compatible system equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards EST |
| Category | Fire Alarm & Life Safety |
| Part Number | BPS6A/230 |
| Subcategory | Booster Power Supplies |
| Series | Edwards BPS Series / Remote Booster Power Supply |
| Product Type | Supervised Remote Booster Power Supply |
| AC Input Voltage | 220–240 VAC, 50/60 Hz |
| AC Input Power | 390 W |
| Nominal Output Voltage | 24 VDC |
| Maximum Total Output | 6.5 A Nominal |
| NAC Output Rating | 3.0 A Maximum per Circuit |
| NAC Configuration | Four Class B or Two Class A Circuits |
| Control Input Compatibility | 12 VDC or 24 VDC Systems |
| Continuous Auxiliary Output | 24 VDC, 200 mA |
| Signal Rates | Continuous, 3-3-3 Temporal, or Follow Host Panel NAC |
| Synchronization Support | Edwards Genesis and Enhanced Integrity Notification Appliances |
| Internal Battery Capacity | Two 12 V Batteries, Up to 10 Ah Each |
| Terminal Wire Gauge | 18–12 AWG |
| Operating Temperature | 32 to 120 °F (0 to 49 °C) |
| Relative Humidity | 0–93% RH, Noncondensing at 32 °C |
| Enclosure Type | Indoor Steel Cabinet with Keyed Lockable Door |
| Agency Listings | UL, ULC, CSFM |
| Weight | Approx. 13 lb (5.9 kg) Shipping Weight |
Information About BPS6A/230
The BPS6A/230 is part of the Edwards EST Remote Booster Power Supply family and is the 220–240 VAC version of the 6.5 A BPS platform. Its steel enclosure contains the power supply electronics, battery charging and supervision circuitry, configuration controls, option-module mounting provisions, and space for two standby batteries up to 10 Ah each. The unit accepts control inputs from compatible 12 or 24 VDC systems and can provide four Class B notification appliance circuits or two Class A circuits, with individual outputs configurable for NAC or auxiliary operation. Integrated Genesis and Enhanced Integrity synchronization, selectable temporal or continuous signaling, ground-fault supervision, battery monitoring, and trouble reporting support installation in fire alarm, emergency communication, security, and access-control systems.
Key Features:
- 6.5 A Output Capacity: Supplies up to 6.5 A total nominal 24 VDC output for notification and auxiliary loads.
- Four Configurable Outputs: Provides four Class B NAC/auxiliary circuits with a maximum rating of 3.0 A per circuit.
- Class A Capability: Four Class B circuits can be configured as two Class A notification appliance circuits.
- 220–240 VAC Input: Designed for 220–240 VAC, 50/60 Hz mains operation with a 390 W input rating.
- Signal Synchronization: Supports synchronization of compatible Edwards Genesis and Enhanced Integrity notification appliances.
- Selectable Signal Coding: Provides continuous, 3-3-3 temporal, or follow-input NAC signaling configurations.
- Auxiliary Power Output: Includes a separate 24 VDC continuous auxiliary output rated up to 200 mA.
- Dual Control Inputs: Two sense inputs allow activation and supervision from compatible external control circuits.
- Battery Backup Support: Integrated charger and supervision circuitry accommodates two 12 V standby batteries, with up to 10 Ah batteries fitting inside the enclosure.
- Ground-Fault Monitoring: Ground-fault detection can be enabled or disabled through an onboard configuration jumper.
- Trouble Relay Output: Provides dedicated trouble relay contacts for communicating power supply fault conditions.
- Expandable Installation: Internal mounting provisions support compatible interface or control modules without requiring a separate electronics enclosure.
The BPS6A/230 delivers the reliability and precision required for expanding supervised notification appliance and auxiliary power in commercial fire alarm and life-safety systems.
