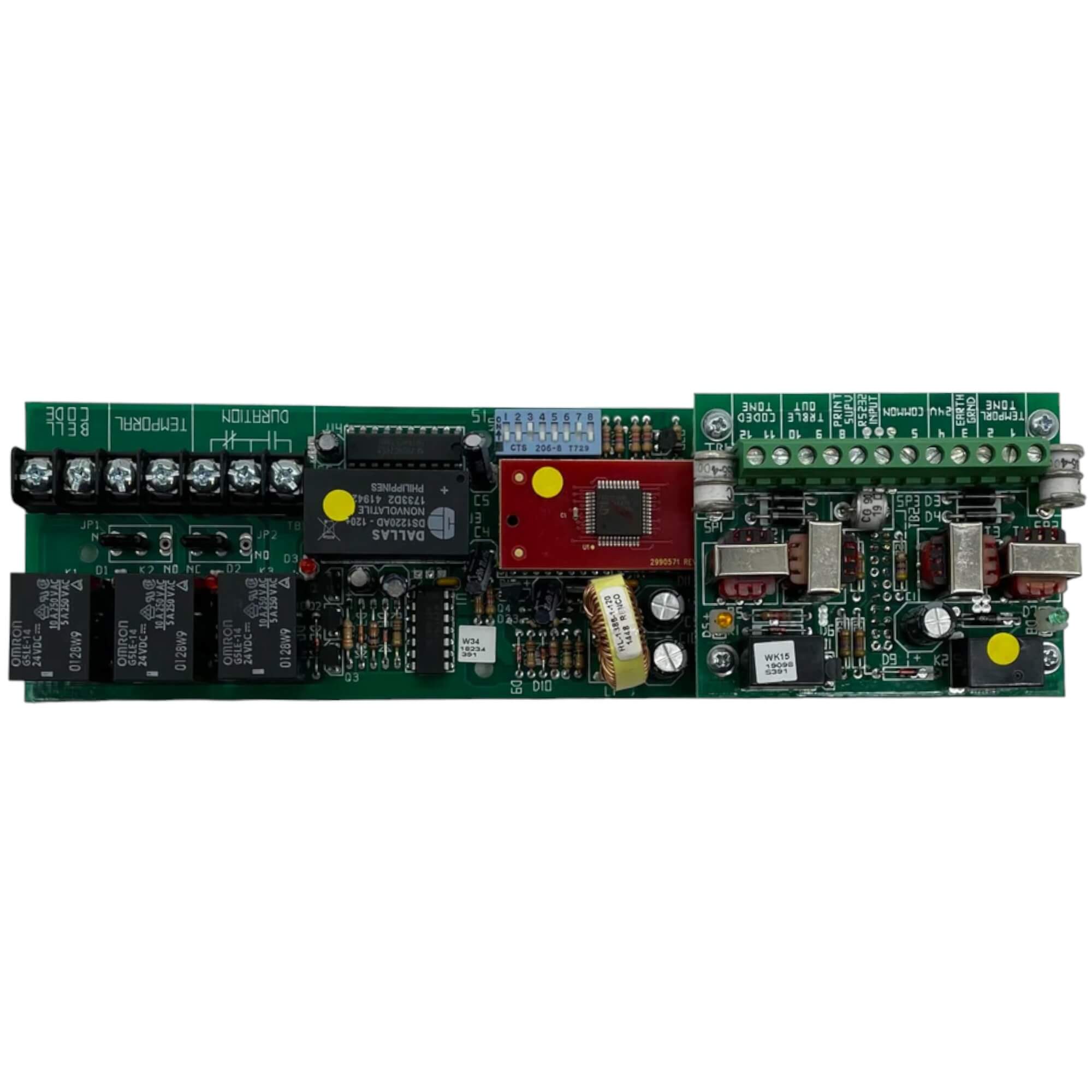

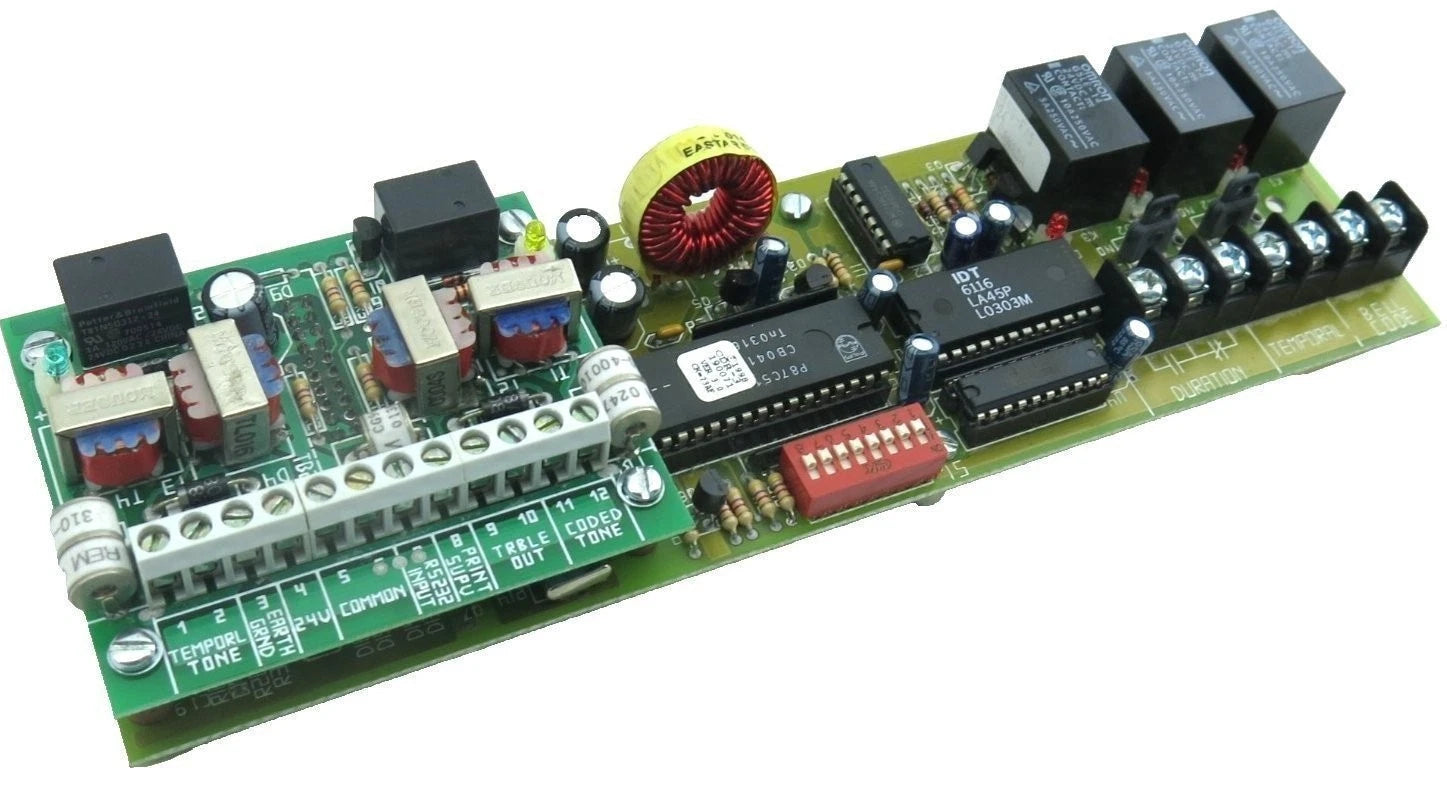

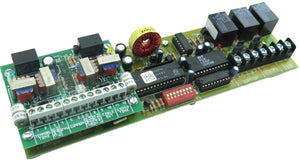

Edwards EST CDR-3 PSNI Coder Module for Fire Alarm Signaling Systems
- Regular price
- $655.00
- Sale price
- $655.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CDR-3
Description
The Edwards EST CDR-3 is a microprocessor-based coder module designed to generate coded outputs in response to alarm information received from compatible fire alarm systems. It provides supervised audio and dry-contact outputs for applications requiring march-time, temporal, or unique coded signaling.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards EST |
| Category | Fire Alarm System Components |
| Part Number | CDR-3 |
| Subcategory | Coder Modules |
| Component Type | PSNI Coder Module |
| Input Voltage | 24 VDC |
| Standby Current | 60 mA |
| Active Current | 100 mA |
| Communication Interface | Supervised RS-232 |
| RS-232 Baud Rate | 600, 1200, 2400, or 4800 baud |
| Tone Output Impedance | 1.2 kΩ |
| Tone Output Voltage | 3.5 VRMS |
| End-of-Line Resistance | 10 kΩ |
| Dry Contact Rating | 30 VDC @ 4 A maximum; 25/70 VRMS @ 100 W maximum |
| Code Format | 4 or 6 rounds, 1–4 digits |
| Code Capacity | Up to 1,000,000 codes |
| March-Time Output | 60 or 90 beats per minute, configurable |
| Mounting | 1/2 footprint module space |
| Status Indicators | 5 LED indicators |
| Weight | 0.80 lb |
Information About CDR-3
The CDR-3 is an Edwards EST fire alarm signaling accessory designed for integration with compatible EST systems through a supervised RS-232 communications connection. The module decodes alarm codes received from the fire alarm panel and converts them into configured signaling outputs. It provides five LED status indicators and supervises RS-232 communication, 24 VDC power, and microprocessor operation. The module can be mounted in a half-footprint space within a compatible fire alarm enclosure.
Key Features:
- Microprocessor Control: Processes alarm information and generates configured coded outputs.
- RS-232 Interface: Receives alarm code information through a supervised RS-232 communications connection.
- Multiple Code Formats: Supports march-time, temporal, and unique coded signaling configurations.
- Supervised Outputs: Provides isolated supervised tone outputs with a 1.2 kΩ output impedance and 3.5 VRMS output.
- Dry-Contact Outputs: Provides coded relay contacts rated up to 30 VDC at 4 A maximum.
- Fail-Safe Operation: Generates a temporal signal if communication with the host panel is lost.
- LED Status Indication: Includes five LEDs for power, module trouble, and output status monitoring.
- Compact Mounting: Installs in a half-footprint module space within compatible enclosures.
The CDR-3 delivers the reliability and precision required for coded signaling and alarm notification functions in compatible Edwards EST fire alarm systems.
