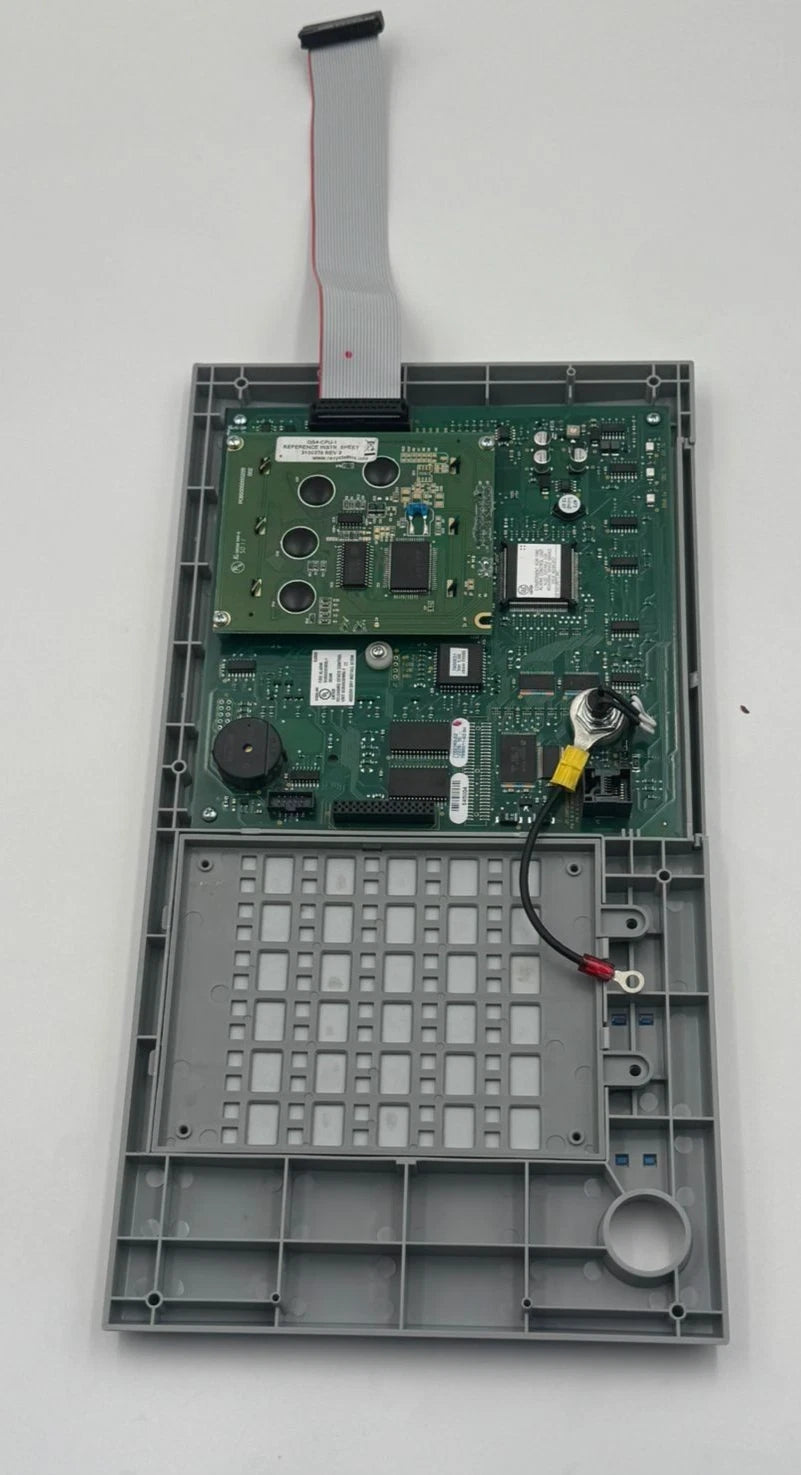

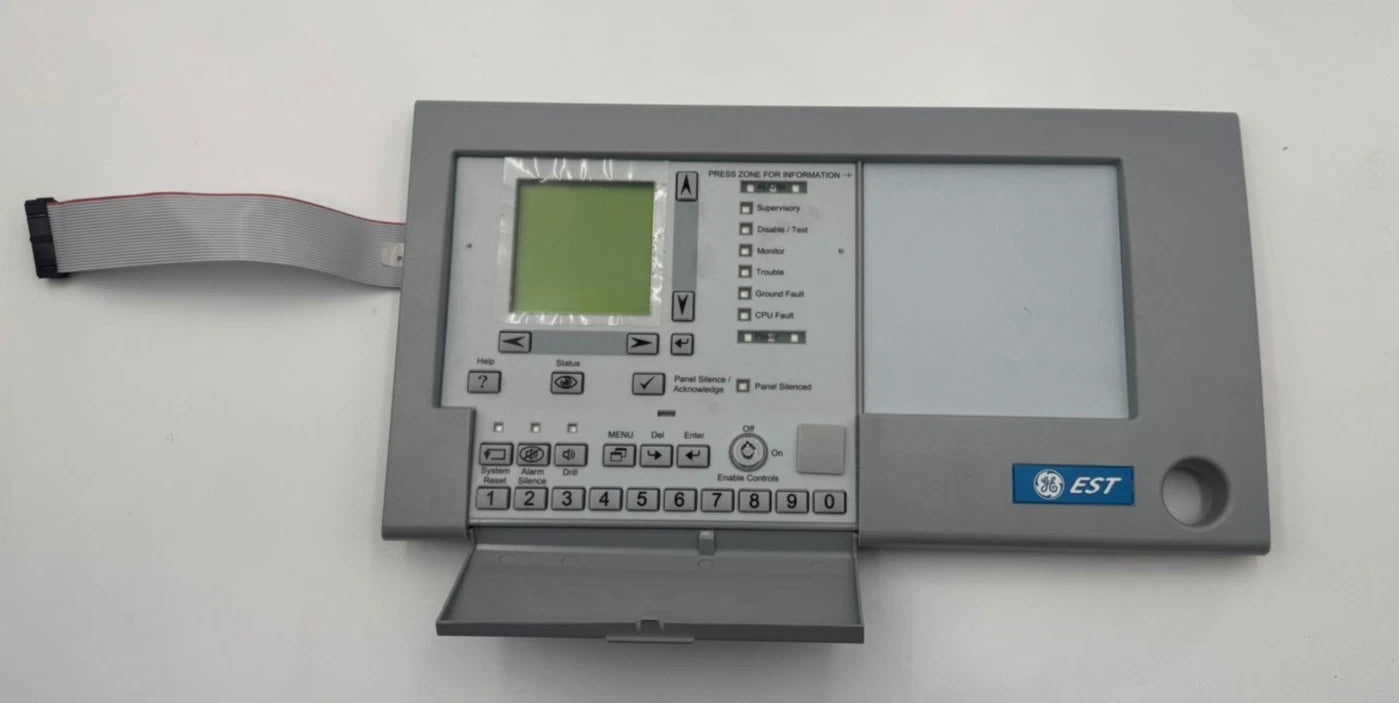

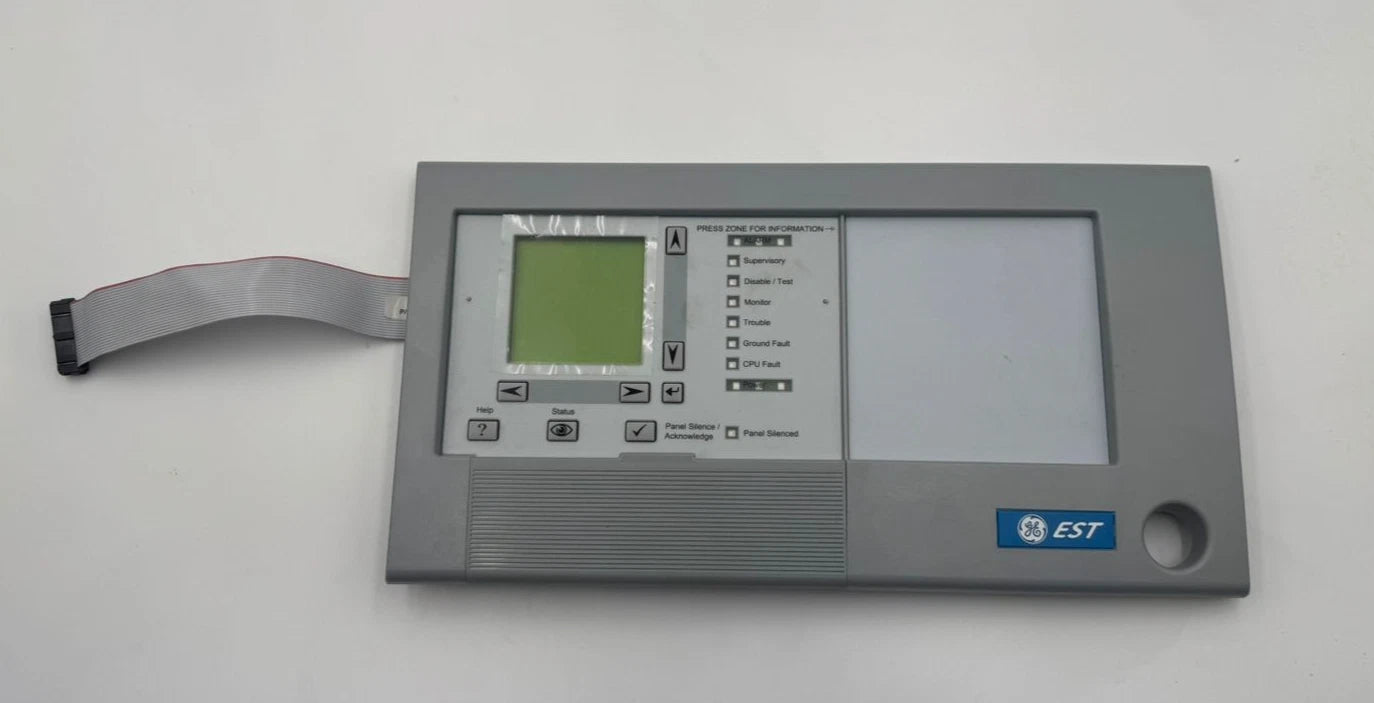

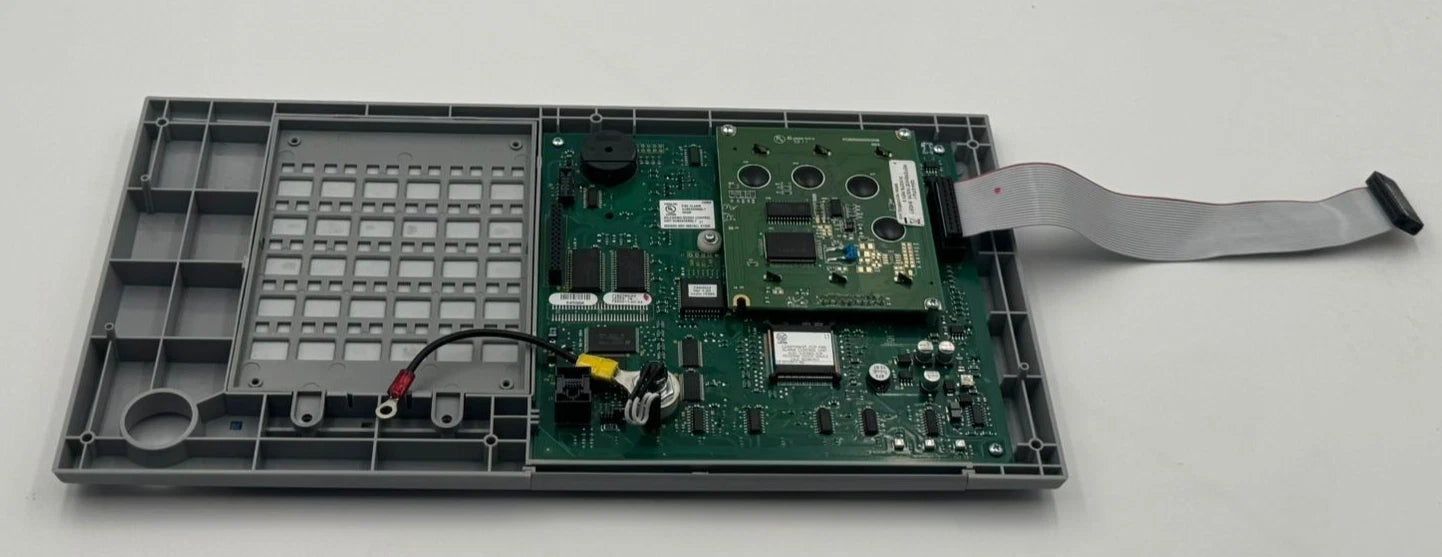

Edwards EST QS4-CPU-1 QuickStart QS4 Fire Alarm Control CPU Board

Description

The Edwards EST QS4-CPU-1 is a QuickStart Series central processing unit board designed to manage fire alarm detection, notification, system logic, and communications within compatible QS4 control panels. Edwards EST part number QS4-CPU-1 serves as the primary processing module for the panel, coordinating installed circuits and option modules while monitoring system alarm, supervisory, and trouble conditions.

Technical Specifications

Information About QS4-CPU-1

The QS4-CPU-1 is a central processor board developed for the Edwards EST QuickStart QS4 fire alarm control platform. Its electronics provide the processing and system-control functions required to coordinate addressable detection devices, notification circuits, user-programmed system responses, and compatible expansion hardware installed within the control panel. The CPU continuously evaluates system events and executes programmed alarm, supervisory, trouble, notification, and control functions while supporting communication between the panel's internal modules. Designed as a service-replaceable control board, the QS4-CPU-1 is primarily used for maintaining or restoring compatible legacy QuickStart QS4 fire alarm systems.

Key Features:

• Central Processing Function: Provides the primary logic and processing functions for compatible QuickStart QS4 fire alarm control panels.
• QuickStart QS4 Compatibility: Engineered specifically for the Edwards EST QS4 fire alarm control platform.
• System Event Processing: Evaluates fire alarm, supervisory, trouble, and other programmed system events.
• Detection Coordination: Processes information received through compatible QS4 detection and signaling circuitry.
• Notification Control: Coordinates programmed operation of compatible notification appliance circuits and related output functions.
• Programmable System Logic: Executes configured system responses based on incoming events and programmed operating sequences.
• Internal Module Communication: Coordinates data exchange among compatible modules and electronics installed in the QS4 panel.
• System Supervision: Supports continuous monitoring of connected system components for abnormal and fault conditions.
• Diagnostic Support: Provides the processing foundation for panel status reporting, troubleshooting, and system service functions.
• Modular Construction: Board-level design allows replacement of the processor assembly without replacing the complete fire alarm control panel.
• Legacy System Support: Suitable for maintenance and repair of existing Edwards EST QuickStart QS4 installations.
• Life-Safety Application: Designed for centralized control of commercial and institutional fire detection and notification systems.

The QS4-CPU-1 delivers the reliability and precision required for central processing, event management, supervision, and coordinated control within Edwards EST QuickStart QS4 fire alarm systems.
