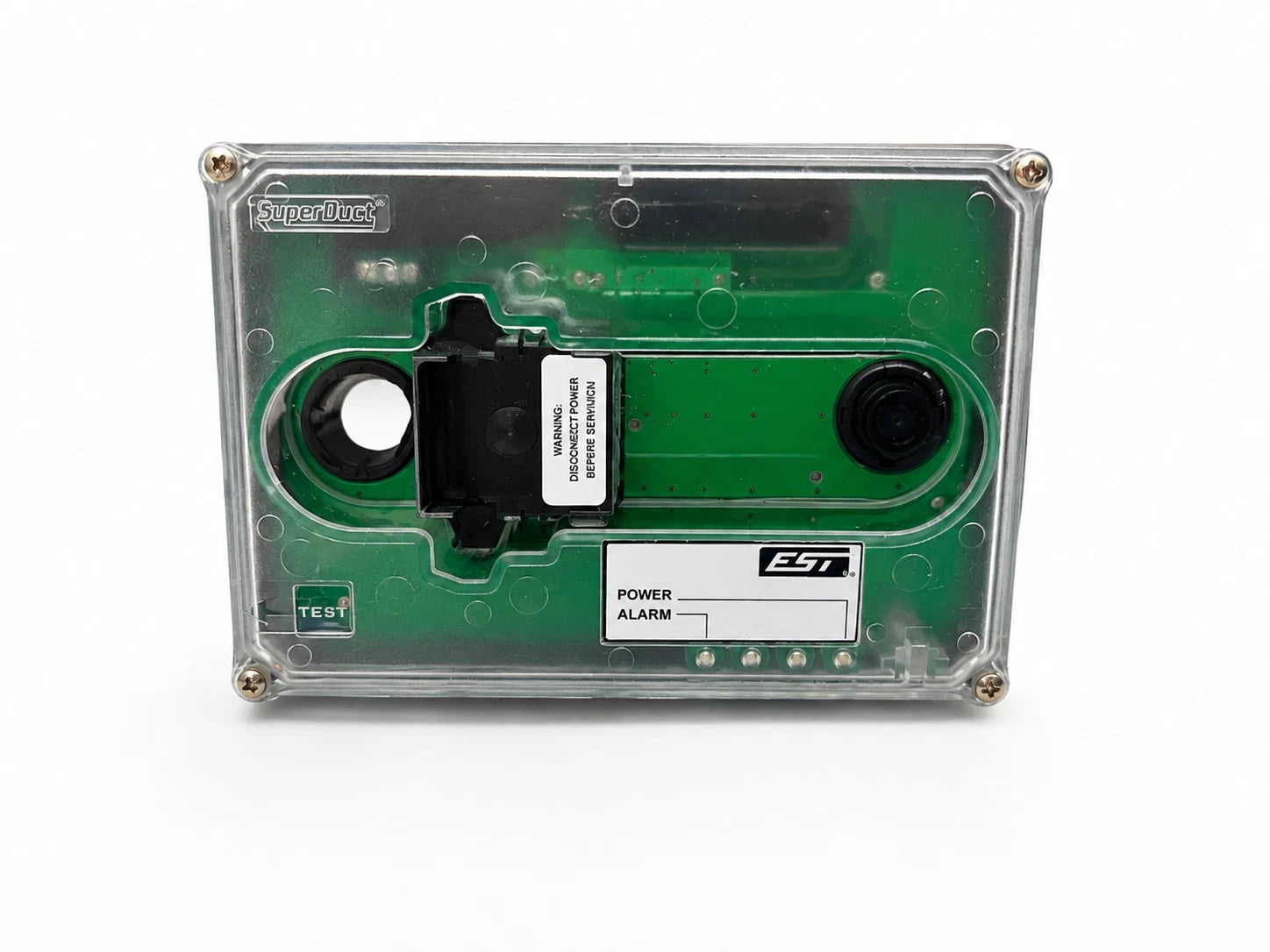

Edwards EST SIGA-SD Signature Series Intelligent Addressable Duct Smoke Detector
- Regular price
- $279.00
- Sale price
- $279.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SIGA-SD
Description
The Edwards EST SIGA-SD is a Signature Series intelligent addressable duct smoke detector designed to detect smoke within HVAC supply and return ductwork. Edwards EST part number SIGA-SD combines photoelectric light-scattering detection, onboard signal processing, environmental compensation, and an auxiliary Form C relay for fire alarm monitoring and HVAC control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards EST |
| Category | Fire Alarm & Life Safety |
| Part Number | SIGA-SD |
| Subcategory | Addressable Duct Smoke Detectors |
| Series | Signature Series / SuperDuct |
| Product Type | Intelligent Addressable Duct Smoke Detector |
| Detection Method | Photoelectric Light-Scattering |
| Communication | Edwards Signature Data Circuit / SLC |
| Addressing | Electronic |
| Operating Voltage | 15.2–19.95 VDC |
| Operating Current | 45 µA Standby; 45 µA Addressable Alarm; 18 mA Standalone Alarm |
| Smoke Sensitivity | 0.79–2.46% Obscuration/ft |
| Air Velocity Range | 100–4,000 ft/min |
| Air Pressure Differential | 0.005–1.00 in. Water Column |
| Alarm Relay | One Form C Auxiliary Relay, 2.0 A at 30 VDC Resistive |
| Alarm Test Response Time | 5 Seconds |
| Indicators | Green Power LED; Red Alarm LED |
| Operating Temperature | -20 to 158 °F (-29 to 70 °C) |
| Operating Humidity | Up to 93% RH, Noncondensing |
| Wire Size | 14–22 AWG |
| Dimensions | 8.70 × 5.45 × 1.90 in. (221 × 138 × 48 mm) |
| Sampling Tube | Field Installed; Ordered Separately |
| Exhaust Tube | Included |
| Weight | Approx. 2.4 lb (1.1 kg) |
Information About SIGA-SD
The SIGA-SD is an intelligent SuperDuct detector from the Edwards EST Signature Series, engineered for integration with compatible Signature data loops and fire alarm control systems. Its low-profile housing incorporates a photoelectric smoke sensor, clear removable cover, status LEDs, conformally coated electronics, and connections for field-installed sampling tubes. Air drawn from the duct is analyzed by onboard electronics that use digital filtering, historical data, and differential sensing to distinguish rapid smoke-related changes from gradual contamination or environmental drift. Electronic addressing, automatic device mapping, self-diagnostics, maintenance reporting, dirty-sensor indication, remote test/reset support, and nonvolatile operating history simplify system commissioning and ongoing service.
Key Features:
- Intelligent Addressable Operation: Communicates over the Edwards Signature data circuit with electronic device addressing.
- Photoelectric Smoke Detection: Uses the light-scattering principle to detect combustion particles sampled from HVAC duct airflow.
- Wide Airflow Capability: Rated for duct velocities from 100 to 4,000 ft/min when the required pressure differential is maintained.
- Environmental Compensation: Differential sensing compensates for gradual environmental changes and contamination without shifting alarm performance.
- Adjustable Smoke Sensitivity: Provides a specified sensitivity range of 0.79 to 2.46% obscuration per foot.
- Built-In Alarm Relay: Includes one Form C auxiliary relay rated at 2.0 A at 30 VDC resistive for ancillary control functions.
- Local Status Indication: Green power and red alarm LEDs remain visible through the clear detector cover.
- Magnetic Functional Testing: Built-in magnet-activated test capability allows convenient detector testing at the housing.
- Maintenance Diagnostics: Identifies dirty or defective sensing conditions and stores diagnostic information in nonvolatile memory.
- Low-Profile Construction: Housing depth of approximately 1.90 inches supports installation where duct clearance is restricted.
- Flexible Sampling Tube Installation: Sampling tubes can be positioned in 45-degree increments for alignment with duct airflow.
- Remote Accessories Support: Compatible with remote alarm LED and magnetic or keyed test/reset stations.
The SIGA-SD delivers the reliability and precision required for intelligent HVAC duct smoke detection and integration with commercial fire alarm and smoke-control systems.
