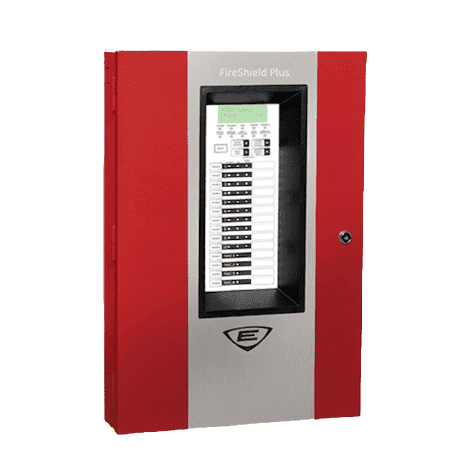

Edwards FSP1004R FireShield Plus Conventional Fire Alarm Control Panel
- Regular price
- $827.00
- Sale price
- $827.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FSP1004R
Description
The Edwards FSP1004R FireShield Plus is a conventional fire alarm control panel configured with 10 Class B initiating device circuits and four Class B notification appliance circuits. Operating from a 120 VAC input, the panel provides a 24 VDC power supply for fire detection, notification, and auxiliary system loads. The FSP1004R supports configurable Class A circuit operation and expanded system power for commercial fire alarm installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Fire Alarm Systems |
| Part Number | FSP1004R |
| Subcategory | Conventional Fire Alarm Control Panels |
| Product Series | FireShield Plus |
| Product Type | Conventional Fire Alarm Control Panel |
| Zone Capacity | 10 Class B or 5 Class A IDCs |
| NAC Circuits | 4 Class B or 2 Class A |
| NAC Output per Circuit | 2.0 A |
| Primary Input Power | 120 VAC |
| Internal Power Supply | 24 VDC, 4.25 A |
| Expanded Power Capacity | Up to 7.5 A |
| System NAC/Aux Output | 3.5 A total; 7.0 A with F-XTR120 |
| Battery Support | Up to two 24 Ah sealed lead-acid batteries |
| Internal Battery Capacity | Up to 18 Ah batteries fit within cabinet |
| Dimensions | 3.75 × 15.00 × 30.00 in |
| Weight | 16 lb |
Information About FSP1004R
The FSP1004R is an Edwards FireShield Plus conventional fire alarm control panel designed for multi-zone fire detection and notification applications. Its circuit architecture supports 10 Class B or five Class A initiating device circuits, along with four Class B or two Class A notification appliance circuits. The panel operates from 120 VAC and incorporates a 24 VDC, 4.25 A power supply with support for increased capacity through the F-XTR120 transformer configuration. Battery standby capability accommodates up to two 24 Ah sealed lead-acid batteries, with batteries up to 18 Ah fitting within the control panel cabinet.
Key Features:
- Conventional Fire Alarm Control: Provides centralized monitoring and notification for conventional initiating and signaling circuits.
- Ten Initiating Circuits: Supports 10 Class B IDCs or five Class A IDCs for configurable detection zoning.
- Four Notification Circuits: Provides four Class B NACs or two Class A NACs for alarm signaling devices.
- NAC Output Capacity: Supports up to 2.0 A per notification appliance circuit within the panel's total available output.
- Expandable System Power: Provides 3.5 A total NAC/auxiliary output, expandable to 7.0 A with an F-XTR120 transformer.
- 120 VAC Operation: Designed for connection to a 120 VAC primary electrical supply.
- Battery Backup Support: Accommodates up to two 24 Ah sealed lead-acid standby batteries.
- Integrated 24 VDC Supply: Provides a 4.25 A internal power supply with capacity expandable to 7.5 A.
The FSP1004R delivers the reliability and precision required for conventional multi-zone fire detection, alarm notification, and life safety system control.
