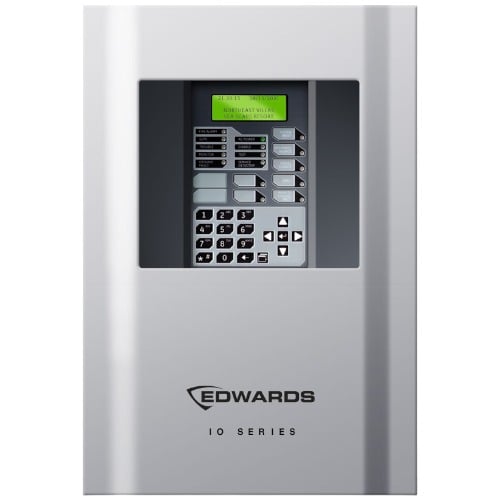

Edwards IO64G iO Series 64-Point Addressable Fire Alarm Control Panel
- Regular price
- $1,019.00
- Sale price
- $1,019.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IO64G
Description
The Edwards IO64G is an addressable iO Series fire alarm control panel equipped with one 64-point Signature device loop and a gray enclosure door. Designed for 110/120V installations, the panel provides centralized fire detection, notification, supervision, and control for systems supporting up to 64 intelligent devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Fire Alarm Systems |
| Part Number | IO64G |
| Subcategory | Fire Alarm Control Panels |
| Series | iO Series |
| Product Type | Addressable Fire Alarm Control Panel |
| Device Loop | 1 Class B Signature Loop |
| Maximum Intelligent Devices | 64 |
| Maximum Isolators | 64 |
| Notification Appliance Circuits | 2 Class B NACs, 2.5 A Each |
| Power Supply | 3.75 A FWR Total at 120/230 VAC, 60 Hz |
| Primary Power | 120 VAC, 60 Hz or 230 VAC, 50–60 Hz |
| Auxiliary Power | 24 VDC Nominal, 500 mA Continuous and 500 mA Resettable |
| Display | 4 × 20-Character Backlit LCD |
| Remote Annunciators | Up to 8 Serial Annunciators |
| Agency Listings | UL, CSFM, ULC |
| Enclosure Color | Gray |
| Weight | 16 lb |
Information About IO64G
The IO64G is an Edwards iO Series addressable fire alarm control panel configured with one installed 64-point Signature signaling line circuit. Its architecture supports up to 64 intelligent devices in any compatible mix, along with as many as 64 isolators for structured device-loop installations. The panel includes two Class B notification appliance circuits, auxiliary power outputs, a 4 × 20-character backlit LCD, and interfaces for up to eight serial remote annunciators. Class A operation for the Signature loop and NACs can be added using a compatible SA-CLA Class A adapter module.
Key Features:
- 64-Point Signature Loop: Supports up to 64 compatible intelligent devices on one installed Signature signaling line circuit.
- Addressable Architecture: Provides individual device identification and centralized system monitoring.
- Dual NACs: Includes two Class B notification appliance circuits rated at 2.5 A each.
- Class A Expansion: Supports optional Class A SLC and NAC operation with an SA-CLA adapter.
- Integrated LCD: Features a 4 × 20-character backlit display for local system information and operation.
- Auxiliary Power Outputs: Provides continuous and resettable 24 VDC auxiliary outputs rated at 500 mA each.
- Remote Annunciation: Accommodates up to eight compatible serial LCD, LED, or graphic annunciator interfaces.
- Battery Backup Support: Accepts sealed lead-acid batteries up to 10 Ah internally or 26 Ah with an external cabinet.
The IO64G delivers the reliability and precision required for addressable fire detection, notification, supervision, and centralized life-safety system control.
