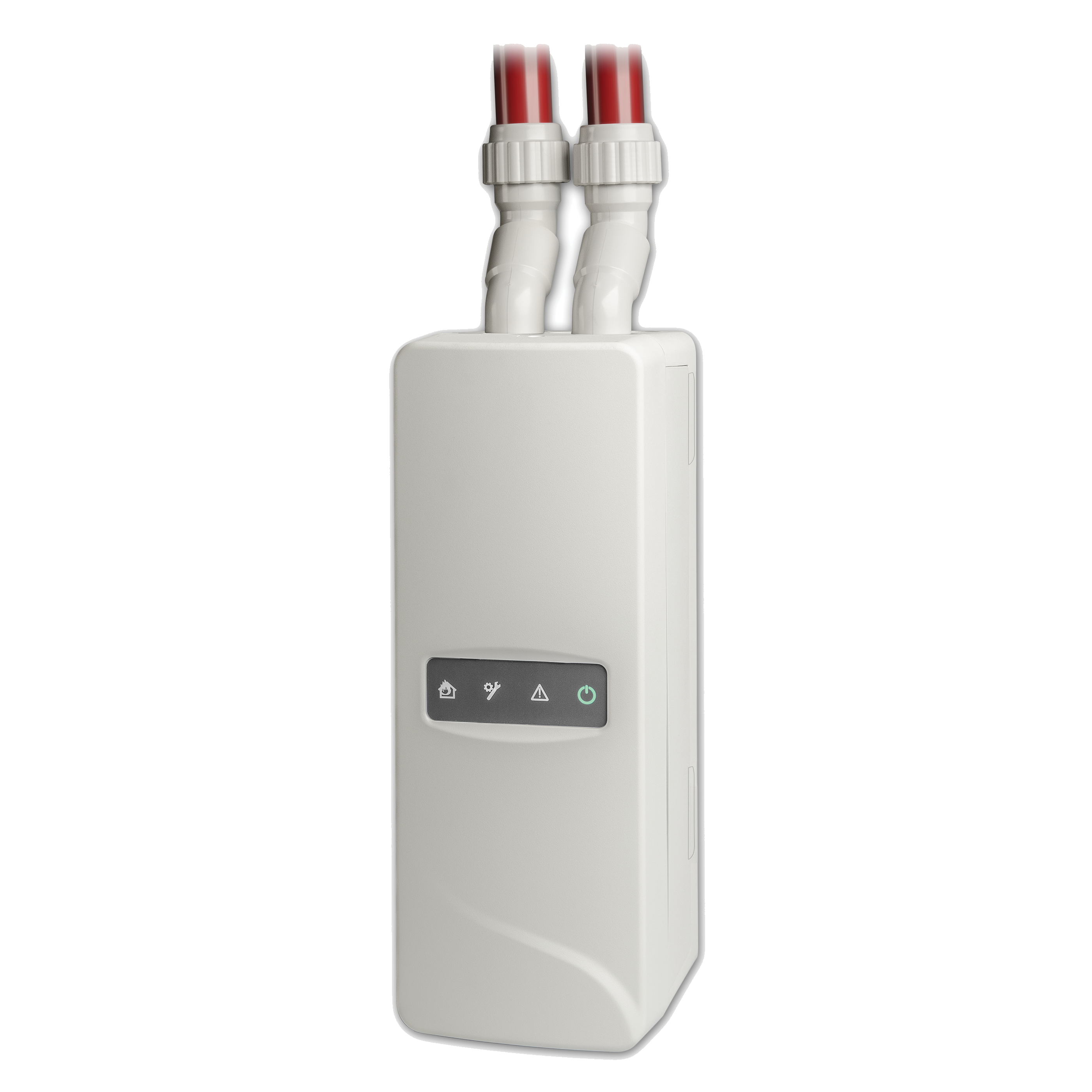

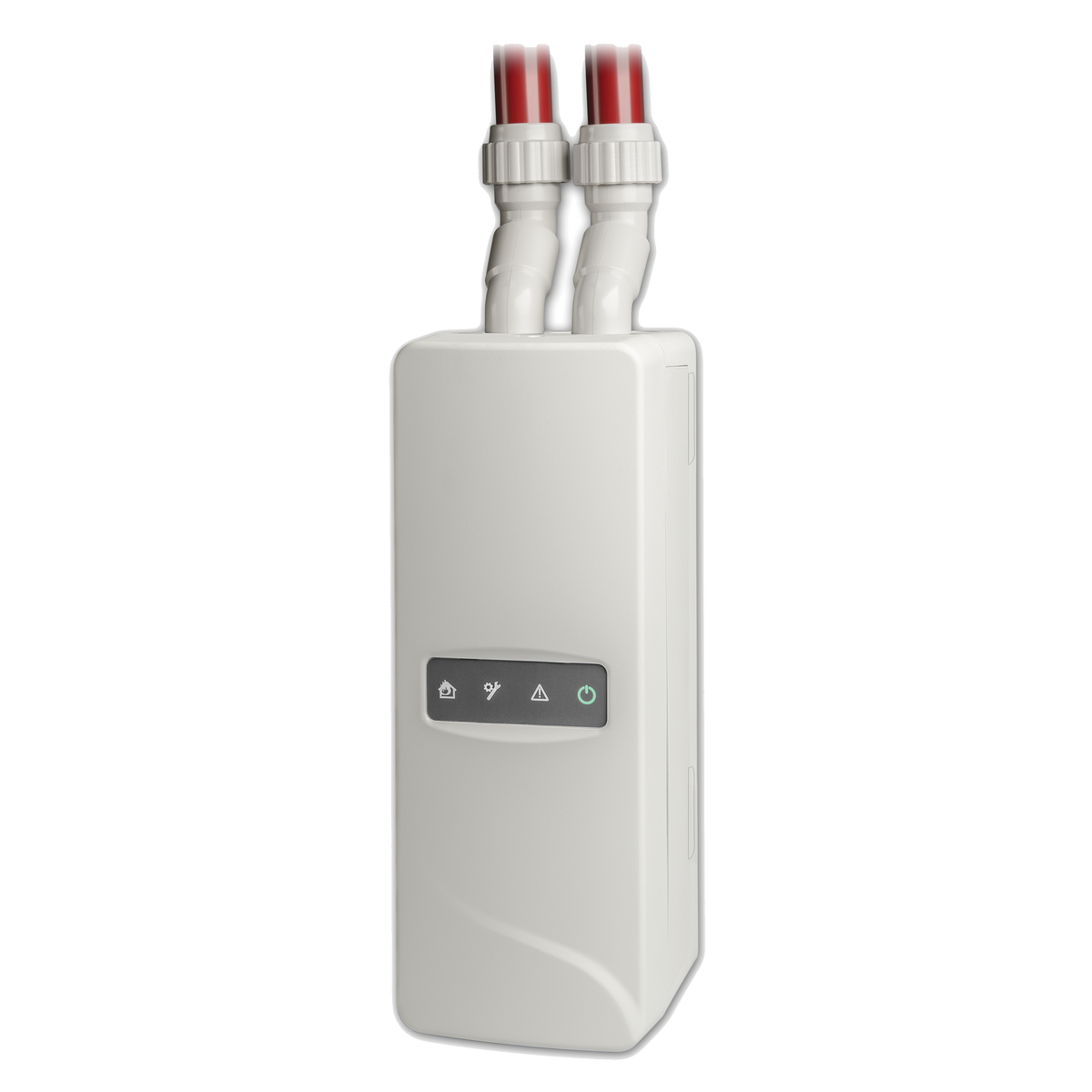

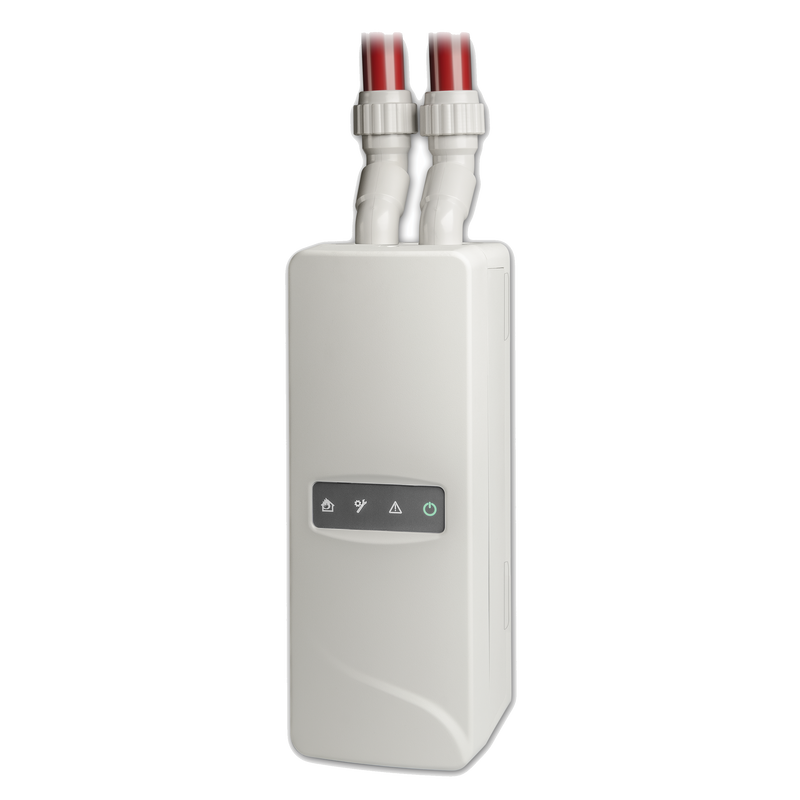

Edwards LaserSense FHSD8330 ModuLaser Aspirating Smoke Detector Module 250m
- Regular price
- $1,525.00
- Sale price
- $1,525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FHSD8330
Description
The Edwards LaserSense FHSD8330 is a ModuLaser detector module designed for scalable aspirating smoke detection in commercial, industrial, and high-risk environments. Edwards part number FHSD8330 uses laser light-scattering detection with ClassiFire particle evaluation, supports up to 250 m (820 ft) of sampling pipe, and provides four programmable alarm levels for early smoke detection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards LaserSense |
| Category | Fire Alarm & Life Safety |
| Part Number | FHSD8330 |
| Subcategory | Aspirating Smoke Detectors |
| Series | ModuLaser |
| Product Type | Aspirating Smoke Detector Module |
| Detection Principle | Laser Light Scattering with Particle Evaluation |
| Sensitivity Range | 0.002–25% obs/m (0.0006–7.62% obs/ft) |
| Particle Sensitivity Range | 0.003–10 Microns |
| Alarm Levels | 4 – Auxiliary, Pre-Alarm, Alarm, Alarm 2 |
| Operating Voltage | 18–30 VDC |
| Current at 24 VDC | Approx. 260 mA at Fan Speed 1; 380 mA at Default Speed 6; 940 mA at Speed 16 |
| Sampling Pipe Capacity | Up to 250 m (820 ft) Combined per Detector Module |
| Sampling Holes | Up to 20 Class A / 40 Class B / 50 Class C |
| Sampling Pipe Inlets | 1 per Detector Module |
| Communication | RS-485 / SenseNET / SenseNET+ |
| Inputs / Outputs | 2 Supervised Inputs / 3 Programmable Relay Outputs |
| Relay Rating | 2 A at 30 VDC, NO / NC / Common |
| Operating Temperature | -10°C to +60°C (14°F to 140°F); Sampled Air -20°C to +60°C (-4°F to 140°F) |
| Relative Humidity | 0–95%, Noncondensing |
| Enclosure Rating | IP40 |
| Dimensions | 110.5 × 133.5 × 300 mm (4.35 × 5.25 × 11.8 in.) |
| Approvals / Compliance | EN 54-20 Classes A, B and C; CPR, LPCB, VdS, BOSEC, RoHS, REACH |
| Weight | 1.57 kg (3.46 lb) |
Information About FHSD8330
The FHSD8330 is an Edwards LaserSense ModuLaser detector module that continuously draws air from a protected area through a dedicated sampling-pipe network and analyzes it for airborne combustion particles. Its ClassiFire processing and environmental compensation provide a sensitivity range of 0.002 to 25% obscuration/m while helping the detector adapt to changing background conditions and contamination. Each module supports one sampling-pipe network up to 250 m combined length, RS-485 communication, two supervised inputs, three programmable relay outputs, and integration with compatible ModuLaser display modules through SenseNET communications. The modular docking architecture allows individual detector sections to be installed, serviced, or replaced independently and is approved for EN 54-20 Classes A, B, and C applications when configured according to system requirements.
Key Features:
- Aspirating smoke detection: Actively draws air through a sampling-pipe network for continuous analysis and early smoke identification.
- Laser detection technology: Uses laser light scattering with particle evaluation to detect very low concentrations of airborne smoke.
- ClassiFire processing: Automatically evaluates sampled conditions to provide stable detection across changing operating environments.
- Wide sensitivity range: Supports detection sensitivity from 0.002 to 25% obscuration/m for applications ranging from very early warning to standard detection.
- Four alarm levels: Provides Auxiliary, Pre-Alarm, Alarm, and Alarm 2 stages for progressive event response.
- Extended sampling network: Supports up to 250 m (820 ft) of combined sampling pipe from each detector module.
- Multi-hole sampling: Supports up to 20 Class A, 40 Class B, or 50 Class C sampling holes per detector module, subject to system design requirements.
- RS-485 communications: Interfaces with ModuLaser display modules through SenseNET and SenseNET+ network architecture.
- Programmable I/O: Includes two supervised inputs and three programmable voltage-free relay outputs for system integration.
- Modular servicing: Individual detector modules can be maintained without taking the entire multi-zone aspirating detection system out of service.
- Harsh-environment capability: Environmental compensation and particle evaluation help maintain stable operation where dust and background contamination are present.
- Integrated data recording: Supports adjustable chart-recorder sampling for detector level, alarm thresholds, airflow, and temperature information.
The FHSD8330 delivers the reliability and precision required for very-early-warning aspirating smoke detection in data facilities, industrial areas, warehouses, critical infrastructure, and other high-value protected spaces.
