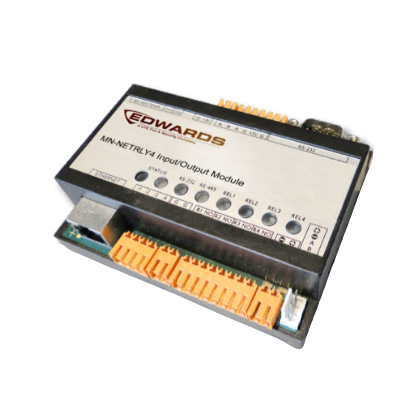

Edwards MN-NETRLY4 Ethernet Network Relay 4 Input 4 Relay Multi-I/O Module
- Regular price
- $539.00
- Sale price
- $539.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MN-NETRLY4
Description
The Edwards MN-NETRLY4 is an Ethernet-controllable multi-I/O module that provides four unsupervised input zones and four programmable normally-open relay outputs. It communicates with FireWorks V1.6 or later over a 10/100 Mbps TCP/IP network for mass notification, life safety monitoring, and third-party system interfacing.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Fire Alarm Network Modules |
| Part Number | MN-NETRLY4 |
| Subcategory | Network Relay Modules |
| Product Type | Ethernet Controllable Multi-I/O Unit |
| Input Zones | 4 Unsupervised Inputs |
| Input Functions | Alarm, Supervisory, Trouble, Monitor |
| Relay Outputs | 4 Normally-Open Relays |
| Relay Contact Type | Form A |
| Relay Rating | 24 VDC @ 0.5 A Resistive |
| Network Interface | RJ-45 Ethernet |
| Network Data Rate | 10/100 Mbps |
| Communication Protocol | TCP/IP |
| Cable Type | Cat5 or Better |
| Operating Voltage | 18–28 VDC |
| Standby Current | 95 mA |
| Current with All Relays Active | 152.5 mA |
| Housing Material | Polymer |
| Operating Temperature | 32 to 120 °F (0 to 49 °C) |
| Humidity | 0–93% RH, Noncondensing at 90 °F (32 °C) |
| FireWorks Compatibility | FireWorks V1.6 or Greater |
| Mounting | DIN Rail / Edwards Enclosure Mounting |
| Listings | UL864, UL2572, CSFM |
| Weight | 1 lbs |
Information About MN-NETRLY4
The MN-NETRLY4 is designed for FireWorks-based applications requiring multiple monitored inputs and controlled outputs over an Ethernet network. Its four input zones can be configured as Alarm, Supervisory, Trouble, or Monitor inputs and can initiate FireWorks events and logic. Four Form A relay outputs are controlled through FireWorks and can respond to automatic or manual commands. The module operates from 18 to 28 VDC and uses an RJ-45 network connection with Cat5 or better cabling and a fixed IP address.
Key Features:
- Multi-I/O Configuration: Provides four input zones and four programmable relay outputs in one module.
- Ethernet Communication: Uses 10/100 Mbps TCP/IP communication through an RJ-45 interface.
- Input Configuration: Supports Alarm, Supervisory, Trouble, and Monitor input functions.
- Relay Outputs: Provides four normally-open Form A relays controlled through FireWorks.
- FireWorks Integration: Designed for communication with FireWorks V1.6 or later systems.
- Third-Party Interface: Supports connections to external systems for monitoring and control applications.
- Flexible Mounting: Mounts on the included DIN rail bracket and supports several Edwards enclosure configurations.
- Power Requirements: Operates from 18–28 VDC with 95 mA standby current and 152.5 mA with all relays active.
The MN-NETRLY4 delivers the reliability and precision required for Ethernet-based life safety monitoring, mass notification, and third-party system interfacing.
