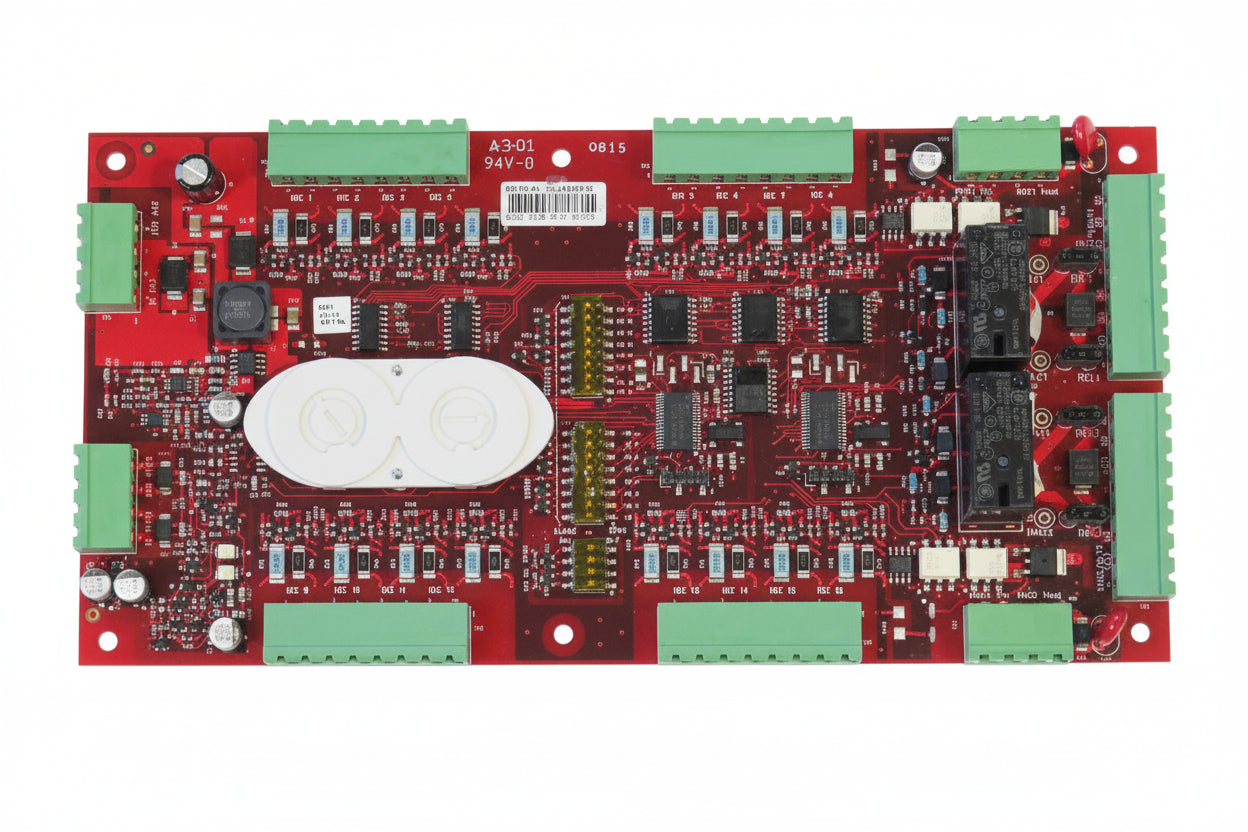

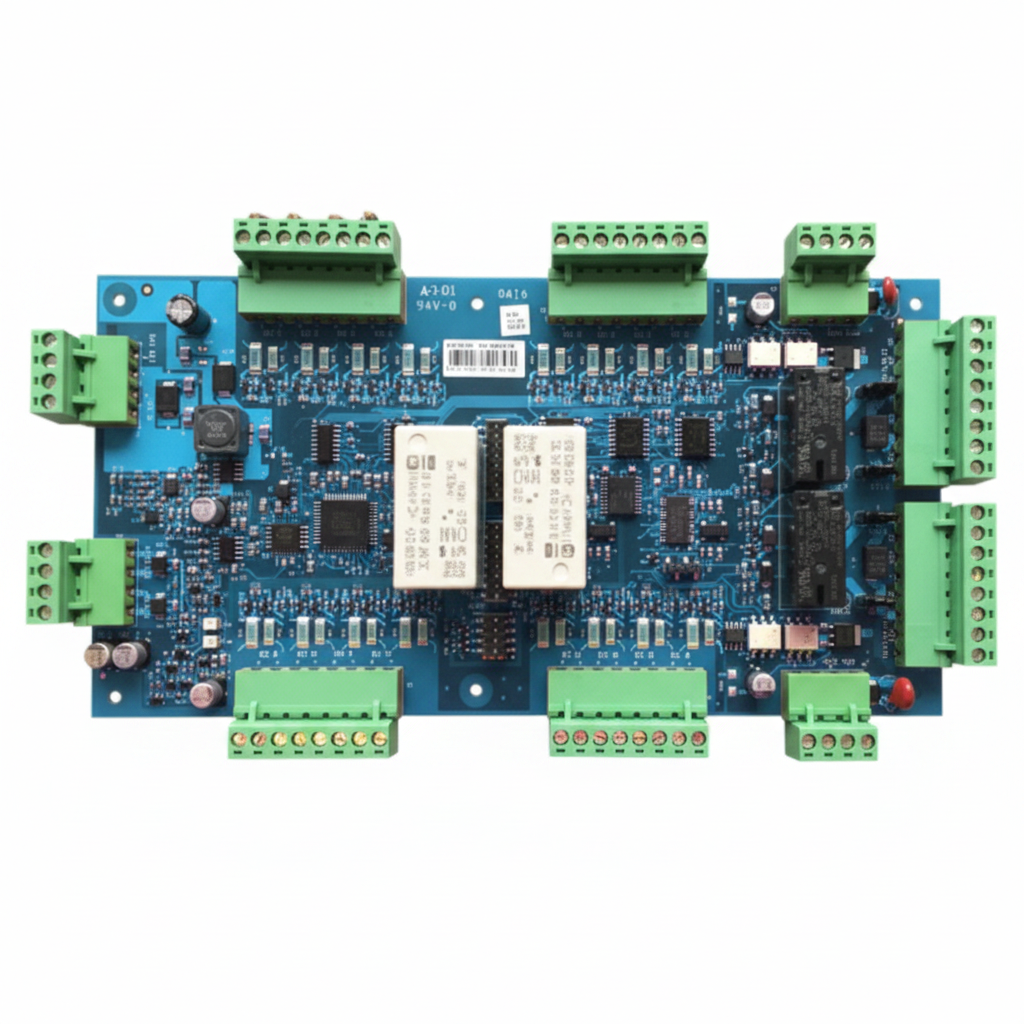

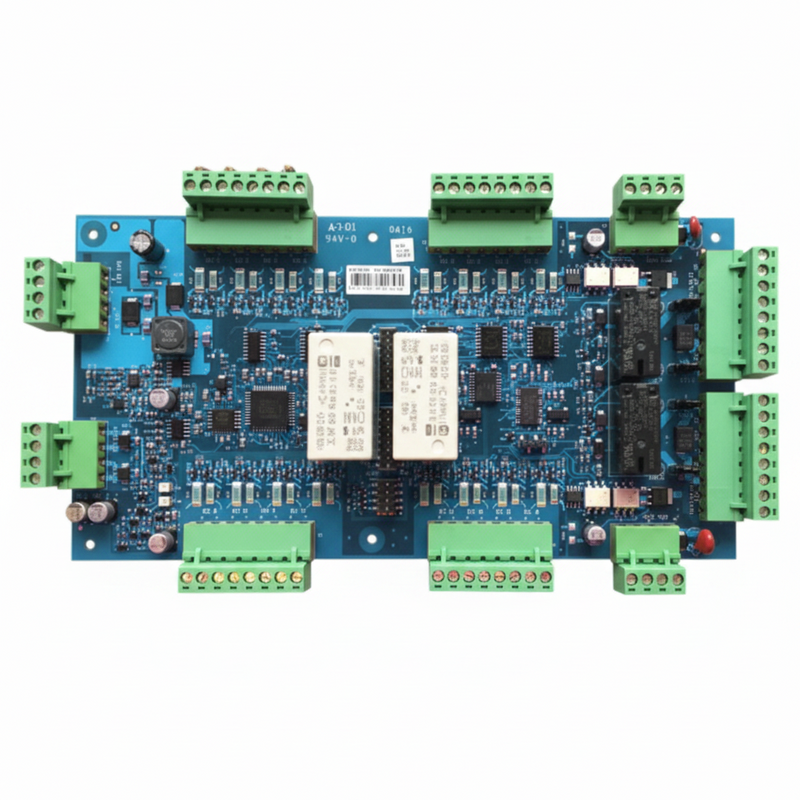

Edwards RZI16-2RS Remote Zone Interface Module with 16 Class B Inputs
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RZI16-2RS
Description
Edwards RZI16-2RS is an addressable Remote Zone Interface Module designed to connect conventional fire alarm devices to compatible Edwards/Kidde intelligent fire alarm systems. It provides sixteen Class B initiating device circuits and two Class B supervised outputs, with rotary switches used for module addressing.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Fire Safety |
| Part Number | RZI16-2RS |
| Subcategory | Zone Interface Modules |
| Product Type | Remote Zone Interface Module |
| Input Circuits | 16 Class B Initiating Device Circuits |
| Output Circuits | 2 Class B Supervised Output Circuits |
| Addressing | Rotary Switch |
| SLC Addresses Required | 18 consecutive addresses |
| Configuration | DIP switch selectable |
| Default Input Types | Alarm or Supervisory |
| Default Output Types | Relay or NAC |
| Mounting | Mounting bracket included |
| Application | Conventional-to-addressable fire alarm integration |
| Compatible System Family | Edwards/Kidde FX Series |
| Maximum Alarm Current | 1 A |
| Minimum Input Voltage | 18.4 VDC |
| Weight | 1.7 lbs |
Information About RZI16-2RS
The RZI16-2RS is a remote zone interface module used within Edwards FX Series intelligent fire alarm installations. It bridges conventional initiating circuits with an addressable signaling line circuit, allowing existing conventional devices to operate within an intelligent system. The module uses rotary switches for address selection and DIP switches to configure default device types for the input and output circuits. It requires 18 consecutive SLC addresses and includes a mounting bracket for installation.
Key Features:
- 16 Class B Inputs: Provides sixteen conventional Class B initiating device circuits.
- 2 Supervised Outputs: Includes two Class B supervised output circuits configurable for supported applications.
- Addressable Interface: Connects conventional field devices to an intelligent fire alarm system through the SLC.
- Rotary Addressing: Uses front-mounted rotary switches for device address selection.
- DIP Configuration: Two 8-position DIP switches configure default device types for the sixteen input circuits.
- Output Configuration: A dedicated DIP switch selects the default relay or NAC output device type.
- Mounting Bracket: Supplied with a mounting bracket for installation within the appropriate enclosure.
- FX Series Integration: Designed for use with compatible Edwards/Kidde FX fire alarm control equipment.
The RZI16-2RS delivers the reliability and precision required for conventional device integration within addressable fire alarm systems.
