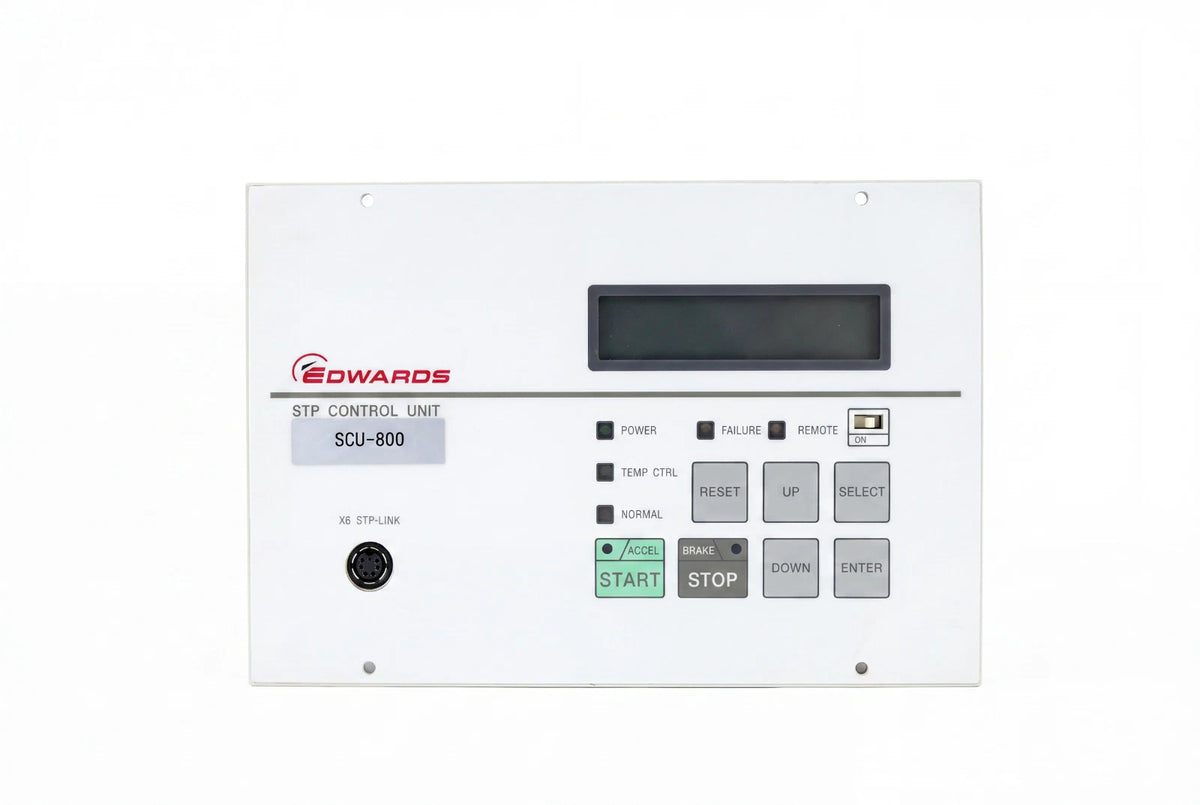

Edwards SCU-800 Digital Turbomolecular Vacuum Pump Control Unit
- Regular price
- $10,999.00
- Sale price
- $10,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SCU-800
Description
The Edwards SCU-800 is a digital turbomolecular vacuum pump controller designed to operate compatible Edwards STP-series pumps. It converts single-phase AC input power into three-phase DC motor drive power and manages pump operation, magnetic bearings, and the optional Temperature Management System (TMS).
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Edwards |
|
Category |
Vacuum Equipment |
|
Part Number |
SCU-800 |
|
Subcategory |
Pump Controllers |
|
Compatible Pump Models |
STP-603/1003, STPH301/H451, STP-H803/A1303, STP-A803/A1303, STP-A1603 |
|
Input Voltage |
100–120 VAC / 200–240 VAC ±10% |
|
Input Frequency |
50/60 Hz ±2 Hz |
|
Power Consumption with TMS |
Maximum 850 VA |
|
Power Consumption without TMS |
Maximum 1,200 VA |
|
Motor Drive System |
Three-phase DC |
|
Bearing Control |
Digital magnetic bearing control |
|
Communication Interfaces |
RS-232 and RS-485 |
|
Display |
LCD |
|
Main Breaker Rated Current |
10 A |
|
Leakage Current |
3.5 mA |
|
Operating Temperature |
0 to 40°C |
|
Dimensions (H × W × L) |
132.5 × 209.7 × 380 mm |
|
Weight |
19 lb |
Information About SCU-800
The SCU-800 is a universal control unit compatible with selected Edwards turbomolecular pumps, including the STP-603/1003, STPH301/H451, STP-H803/A1303, STP-A803/A1303, and STP-A1603 models. Its digital control architecture coordinates the pump motor and magnetic bearing system to support controlled operation. Standard RS-232 and RS-485 communication interfaces allow integration with remote control equipment and monitoring systems. Additional functions include automatic vibration reduction, automatic balancing, an LCD display, and pre-maintenance notification.
Key Features:
-
Pump Compatibility: Designed for selected Edwards STP-series turbomolecular vacuum pumps.
-
Digital Control System: Coordinates pump operation and magnetic bearing functions.
-
AC Power Input: Supports 100–120 VAC and 200–240 VAC single-phase supplies.
-
Motor Drive: Converts AC input power to three-phase DC for the pump motor.
-
Magnetic Bearing Control: Manages the pump's magnetic bearing system.
-
Vibration Management: Includes automatic vibration reduction and automatic balancing functions.
-
Communication Interfaces: Provides RS-232 and RS-485 ports for remote control and monitoring.
-
Temperature Management: Supports an optional Temperature Management System (TMS).
The SCU-800 delivers the reliability and precision required for turbomolecular vacuum pump operation in industrial and scientific vacuum systems.
