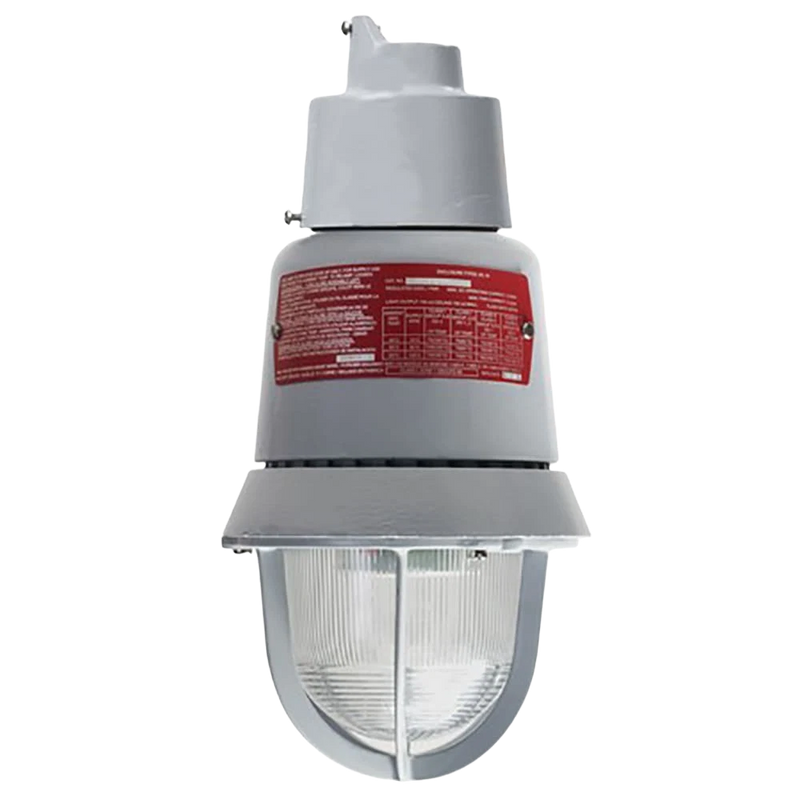

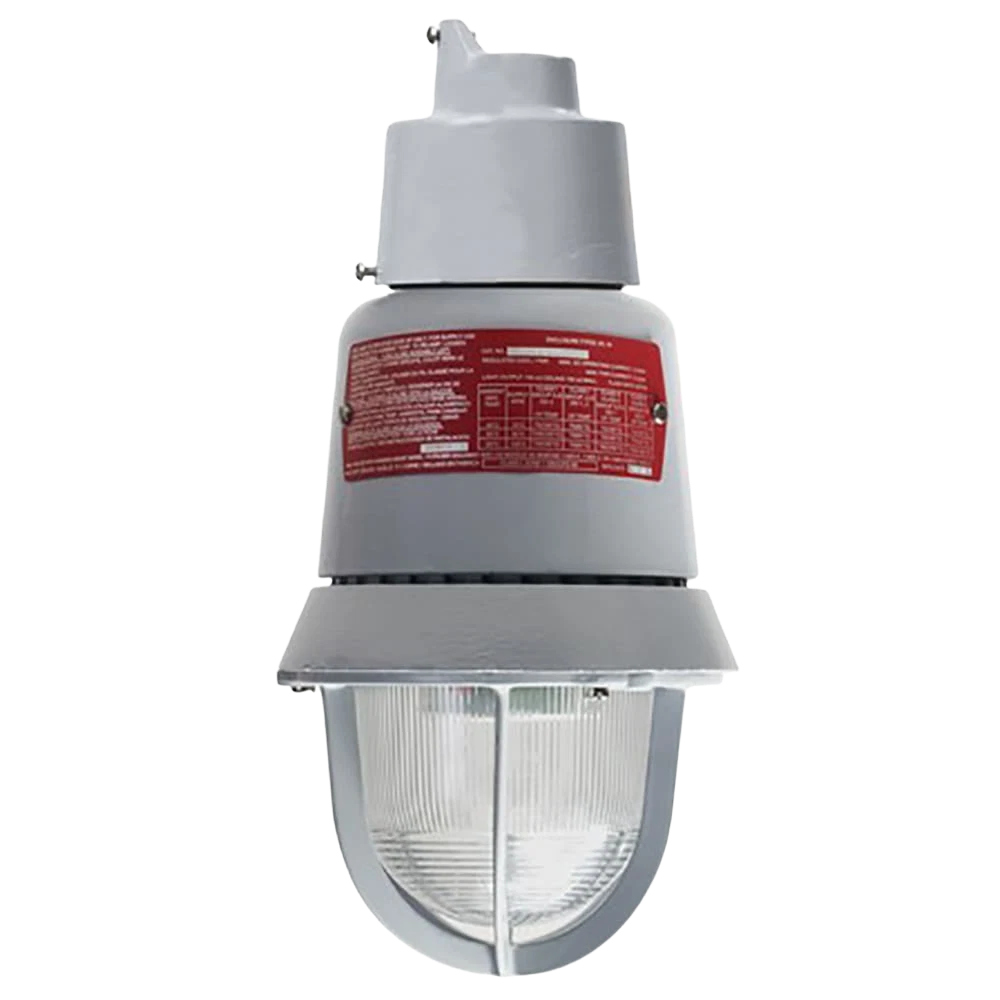

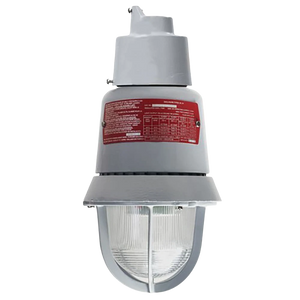

Edwards Signaling 116DEGEX-FJ Hazardous Location Xenon Strobe for Industrial Fire Alarm Systems
- Regular price
- $1,459.00
- Sale price
- $1,459.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 116DEGEX-FJ
Description
The Edwards Signaling 116DEGEX-FJ is a hazardous location xenon strobe designed to provide high-intensity visual notification in classified industrial environments. Manufactured by Edwards Signaling, the 116DEGEX-FJ operates on 16–33 VDC or 16–33 VFWR and is engineered for dependable emergency signaling in facilities requiring explosion-proof visual alarms.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Industrial Signaling |
| Part Number | 116DEGEX-FJ |
| Subcategory | Hazardous Location Strobe |
| Strobe Type | Xenon, Clear/White Flash |
| Lens Color | Clear |
| Rated Strobe Intensity | 125 cd (Ceiling), 60 cd (Wall) |
| Operating Voltage | 16–33 VDC, 16–33 VFWR |
| Operating Current | 0.505 A @ 24 VDC, 0.683 A @ 24 VFWR |
| Flash Rate | 1 Hz (65 FPM) |
| Mounting | Pendant, Ceiling, Wall |
| Operating Temperature | -40°F to 150°F (-40°C to 66°C) |
| Hazardous Location Rating | Class I Div. 1 Groups C & D; Div. 2 Groups A, B, C & D; Class II Div. 1 Groups E, F & G; Div. 2 Groups F & G; Class III Div. 1 & 2 |
| NEMA Rating | Type 3R, Type 4X |
| Standards | UL 1971, ULC-S526-07, UL Listed, cUL Listed |
| ADA Compliance | UL 1971 Listed for Hearing Impaired (Indoor, Non-Sleeping Areas) |
| Finish | Gray Powder Coat Epoxy |
| Synchronization Compatibility | SIGA-CC1S, SIGA-MCC1S, SIGA-CC2A, SIGA-MCC2A, G1M-RM, BPS6A, BPS10A, APS6A, APS10A, iO64, iO500, Fireshield Plus, EST3X |
| Weight | 18 lb (8.2 kg) |
Information About 116DEGEX-FJ
The 116DEGEX-FJ is part of the Edwards Signaling hazardous location visual notification product line developed for use in Class I, II, and III hazardous areas. It features a rugged gray powder-coated epoxy enclosure with a clear xenon strobe lens that provides reliable warning signals under demanding environmental conditions. The unit supports pendant, ceiling, and wall mounting while offering synchronization compatibility with a variety of Edwards fire alarm control modules and power supplies. Certified with UL, cUL, NEMA Type 3R, and Type 4X ratings, it is suitable for industrial facilities where hazardous location compliance and weather resistance are essential.
Key Features:
- Hazardous Location Certified: Approved for Class I, II, and III hazardous locations with multiple division and group classifications.
- Xenon Strobe Technology: Utilizes a clear xenon strobe to produce a high-visibility white flash.
- Wide Operating Voltage: Supports 16–33 VDC and 16–33 VFWR power sources.
- High Light Output: Rated at 125 cd for ceiling mounting and 60 cd for wall mounting under UL 1971.
- Synchronization Compatible: Works with compatible Edwards synchronization modules and fire alarm systems.
- Flexible Installation: Supports pendant, ceiling, and wall mounting configurations.
- Weather-Resistant Enclosure: NEMA Type 3R and Type 4X rated for indoor and outdoor applications.
- Broad Temperature Range: Operates reliably from -40°F to 150°F (-40°C to 66°C).
The 116DEGEX-FJ delivers the reliability and precision required for hazardous location fire alarm notification, emergency warning, and industrial safety signaling applications.
