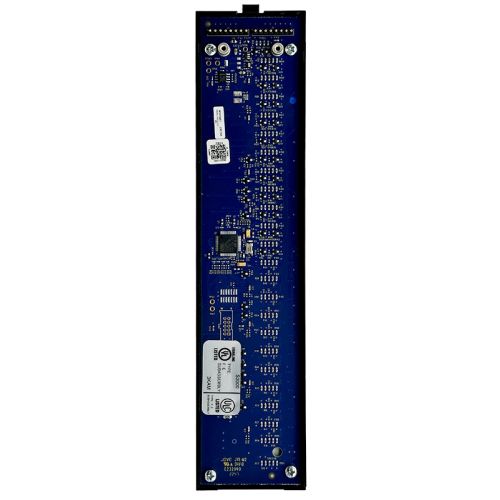

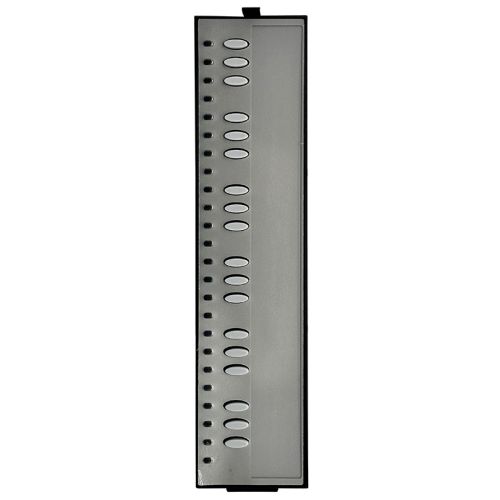

Edwards Signaling 4-24L18S Display Module with 24 Indicators and 18 Control Buttons
- Regular price
- $537.00
- Sale price
- $537.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4-24L18S
Description
The 4-24L18S is a multifunction display module that combines extensive visual indication with dedicated control capabilities for life safety systems. Its integrated design enhances operator awareness and system management while maintaining compliance with recognized fire alarm industry standards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Fire Alarm Systems |
| Part Number | 4-24L18S |
| Subcategory | Display Control Modules |
| Product Type | Indicator and Control Display Module |
| Indicator Quantity | 24 Indicators |
| Control Buttons | 18 Buttons |
| Input Voltage | 24 VDC Nominal |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity Tolerance | 10% to 93% Non-Condensing |
| Primary Function | System Monitoring and Control |
| Application | Fire Alarm and Life Safety Systems |
| Regulatory Compliance | UL 864 |
| Standards Compliance | NFPA 72 |
| Electrical Compliance | NEC Article 760 |
| Interface Type | Operator Control and Annunciation Interface |
| Weight | 1.5 lb (0.68 kg) |
Information About 4-24L18S
The 4-24L18S is a display and control module developed for integration within Edwards Signaling fire alarm and emergency communication systems. Combining twenty-four visual indicators with eighteen dedicated control buttons, the module allows users to monitor system conditions while performing operational functions directly from the interface. Operating from a nominal 24 VDC power source, it is designed for installation in regulated life safety environments requiring dependable performance and compliance with industry standards. Its robust construction supports operation across a wide temperature and humidity range, making it suitable for a variety of facility applications.
Key Features:
- 24 Status Indicators: Provides visual monitoring of multiple system conditions and events.
- 18 Control Buttons: Enables direct operator interaction and system control functions.
- Centralized User Interface: Combines monitoring and control capabilities in a single module.
- 24 VDC Operation: Designed for compatibility with standard life safety system power requirements.
- Wide Operating Temperature Range: Supports reliable performance from 0°C to 49°C.
- High Humidity Tolerance: Operates in environments with up to 93% non-condensing humidity.
- Regulatory Compliance: Meets UL 864 requirements for fire alarm control equipment.
- Life Safety System Integration: Suitable for fire alarm and emergency communication applications.
The 4-24L18S delivers the reliability and precision required for fire alarm system monitoring, annunciation, and operator control.
