Edwards Signaling 51R-G5-20W 24 VAC Flashing Beacon with Horn Red Incandescent Light
- Regular price
- $779.00
- Sale price
- $779.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 51R-G5-20W
Description

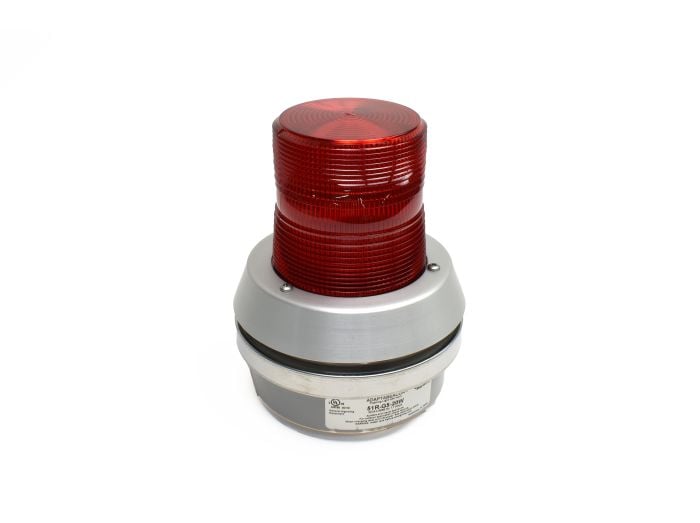

The Edwards Signaling 51R-G5-20W is a flashing beacon with an integrated horn designed to provide simultaneous visual and audible warning for industrial, commercial, and security applications. Manufactured by Edwards Signaling, the 51R-G5-20W operates on 24 VAC and combines a red incandescent flashing beacon with a synchronized horn to deliver effective alarm notification. Its durable construction and weather-resistant design make it suitable for dependable indoor and outdoor signaling installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Audible & Visual Signaling |
| Part Number | 51R-G5-20W |
| Subcategory | Flashing Beacon with Horn |
| Series | 51 Series |
| Product Type | Flashing Light with Horn |
| Operating Voltage | 24 VAC |
| Frequency | 50/60 Hz |
| Operating Current | 1.1 A |
| Lamp Type | Incandescent |
| Lens Color | Red |
| Visual Function | Flashing |
| Audible Function | Horn |
| Flash Rate | 65 FPM |
| Light Output | 266 Lumens |
| Sound Intensity | 85 dB at 10 ft |
| Lens Material | Shatter-Resistant Polycarbonate |
| Lens Type | Fresnel |
| Lamp Life | 3,920 Hours |
| Mounting | 1/2 in. Conduit, 4 in. Octagon Box |
| Operating Temperature | -31°F to 150°F (-35°C to 66°C) |
| Approvals | UL 1638, cUL |
| Application | Indoor, Outdoor, Signaling, Security Systems, Airport Baggage Carousels |
| Weight | 1.705 lb (0.77 kg) |
Information About 51R-G5-20W
The 51R-G5-20W is part of the Edwards Signaling 51 Series of AdaptaBeacon audible and visual signaling devices engineered for reliable warning applications. It features a shatter-resistant polycarbonate Fresnel lens that improves light distribution while protecting the incandescent lamp from impact. The integrated base-mounted horn provides synchronized audible notification to complement the flashing beacon for enhanced awareness. Designed for conduit or 4-inch octagon box mounting, the unit is commonly installed in industrial facilities, security systems, and airport baggage carousel applications.
Key Features:
- Combined Audible and Visual Signaling: Integrates a flashing beacon with a synchronized horn.
- 24 VAC Operation: Designed for 24 VAC, 50/60 Hz power systems.
- Incandescent Beacon: Produces 266 lumens of flashing red illumination.
- Integrated Horn: Delivers 85 dB at 10 feet for effective audible notification.
- 65 FPM Flash Rate: Provides consistent flashing for clear visual warning.
- Fresnel Lens Design: Improves light distribution while protecting the lamp.
- Flexible Mounting: Supports 1/2-inch conduit and 4-inch octagon box installation.
- Indoor and Outdoor Use: Suitable for signaling, security, and industrial warning applications.
The 51R-G5-20W delivers the reliability and precision required for industrial safety notification, security systems, and combined audible and visual warning applications.
