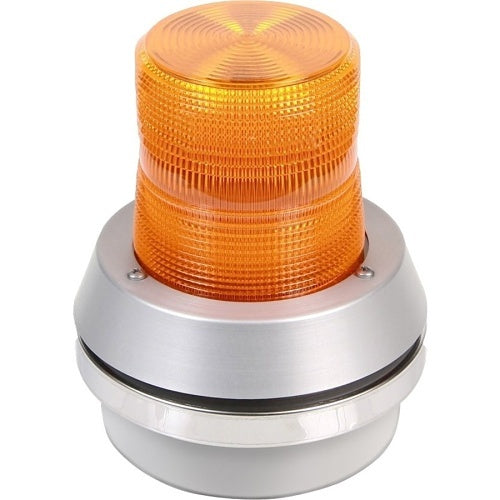

Edwards Signaling 51XBRFA24D Xtra-BRITE LED Beacon with Horn 24 VDC Amber Lens
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 51XBRFA24D
Description
The Edwards Signaling 51XBRFA24D is a combination LED flashing beacon with an integrated horn designed to provide simultaneous audible and visual warning in industrial, commercial, and security applications. Manufactured by Edwards Signaling, the 51XBRFA24D operates on 24 VDC and features a high-visibility amber Xtra-BRITE™ LED beacon synchronized with a built-in horn for effective emergency and status notification. Its rugged construction and weather-resistant design make it suitable for reliable indoor and outdoor operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Audible & Visual Signaling |
| Part Number | 51XBRFA24D |
| Subcategory | LED Beacon with Horn |
| Series | 51XBR Series |
| Product Type | Flashing Light with Horn |
| Operating Voltage | 24 VDC |
| Operating Current | 0.275 A |
| Lamp Type | LED |
| Lens Color | Amber |
| Visual Function | Flashing |
| Audible Function | Integrated Horn |
| Flash Rate | 65 FPM |
| Sound Intensity | 95 dB at 1 m; 85 dB at 10 ft |
| Lamp Life | 148,000 Hours |
| Material | Shatter-Resistant Polycarbonate Lens, Cast Metal Base |
| Mounting | 1/2 in. Threaded Conduit, 4 in. Octagon Box, Surface, Wall, Panel |
| Operating Temperature | -31°F to 150°F (-35°C to 66°C) |
| Approvals | UL (U.S. and Canada) |
| Dimensions | 6 in. Diameter × 7-3/8 in. Height |
| Application | Indoor, Outdoor, Industrial, Commercial, Security Systems |
| Weight | 1.8 lb (0.82 kg) |
Information About 51XBRFA24D
The 51XBRFA24D is part of the Edwards Signaling 51XBR Series of Xtra-BRITE™ signaling devices engineered to deliver combined audible and visual notification from a single unit. It features a cast metal base with a shatter-resistant polycarbonate lens, providing durability in demanding industrial environments. The integrated horn operates in synchronization with the flashing LED beacon, ensuring clear notification for machinery, security systems, and process alarms. The unit supports conduit, wall, surface, and 4-inch octagon box mounting, allowing flexible installation across a wide range of facilities.
Key Features:
- Combined Audible and Visual Signal: Integrates a flashing LED beacon with a synchronized horn.
- Xtra-BRITE™ LED Technology: Provides high-visibility amber signaling with extended service life.
- 24 VDC Operation: Designed for low-voltage industrial and security control systems.
- Integrated Horn: Produces 95 dB at 1 meter and 85 dB at 10 feet for effective audible notification.
- 65 FPM Flash Rate: Delivers consistent flashing for improved visibility.
- Durable Construction: Cast metal base with a shatter-resistant polycarbonate lens.
- Flexible Mounting Options: Supports conduit, wall, surface, and 4-inch octagon box installation.
- Long LED Life: Rated for approximately 148,000 hours of operation.
The 51XBRFA24D delivers the reliability and precision required for industrial safety notification, security systems, and combined audible and visual warning applications.
