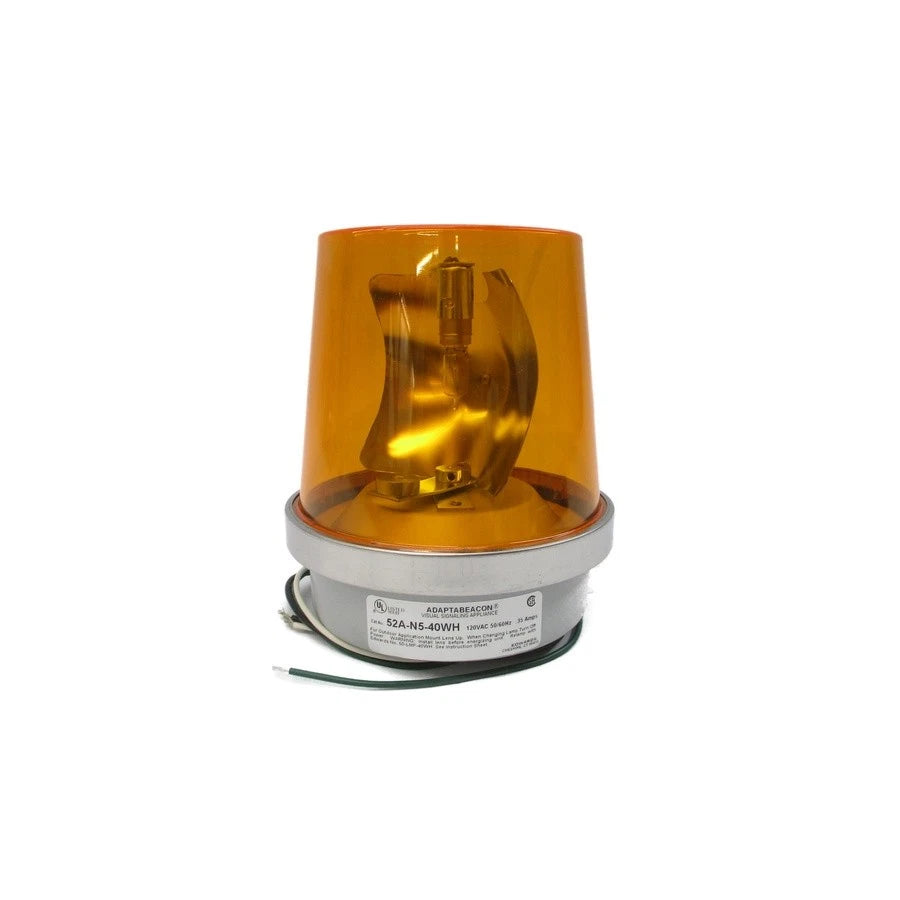

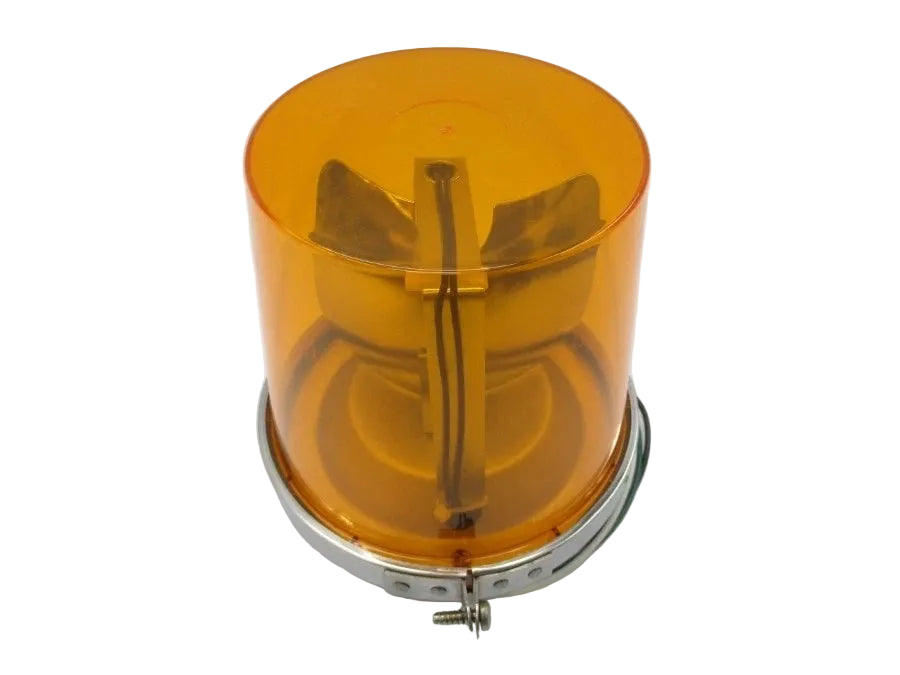

Edwards Signaling 52A-N5-40WH 120 VAC Amber Rotating Beacon for Indoor and Outdoor Industrial Signaling
- Regular price
- $495.00
- Sale price
- $495.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 52A-N5-40WH
Description
The Edwards Signaling 52A-N5-40WH is a weatherproof rotating beacon designed to provide highly visible warning signals for industrial, commercial, and safety applications. Manufactured by Edwards Signaling, the 52A-N5-40WH operates on 120 VAC and utilizes a 40 W halogen lamp with an amber rotating dome to deliver reliable visual notification in both indoor and outdoor environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Industrial Signaling |
| Part Number | 52A-N5-40WH |
| Subcategory | Rotating Beacon |
| Series | 52 Series |
| Type | Rotating Light |
| Lens Color | Amber |
| Operating Voltage | 120 VAC, 50/60 Hz |
| Current Rating | 0.35 A |
| Lamp Type | 40 W Halogen |
| Lamp Life | 25,000 Hours |
| Flash Rate | 65 FPM |
| Light Output | 3328 cd (265 Lumens) |
| Housing Material | Cast Metal Base with Polycarbonate Dome |
| Mounting Type | 1/2 in. Threaded Conduit, Surface, 4 in. Octagon Box |
| Operating Temperature | -31°F to 150°F (-35°C to 66°C) |
| Dimensions | 6 in. Diameter × 8.5 in. Height |
| Environmental Rating | Weatherproof, Indoor/Outdoor Use |
| Standards | UL 1638, cUL Listed |
| Weight | 3.5 lb (1.59 kg) |
Information About 52A-N5-40WH
The 52A-N5-40WH is part of the Edwards Signaling 52 Series, a range of rotating beacons engineered for dependable visual signaling in demanding environments. It features a cast metal base with a durable polycarbonate dome and an integrated light-intensifying reflector for enhanced visibility. The beacon is compatible with 1/2-inch threaded conduit, surface mounting, and 4-inch octagon electrical boxes, allowing flexible installation across a variety of facilities. Designed for continuous service, it operates within temperatures from -31°F to 150°F while meeting UL 1638 and cUL certification requirements.
Key Features:
- 52 Series Construction: Designed as part of the Edwards Signaling 52 Series rotating beacon family.
- Rotating Visual Signal: Produces a continuous rotating amber warning light for clear visual indication.
- 120 VAC Operation: Operates on a standard 120 VAC, 50/60 Hz power supply.
- 40 W Halogen Lamp: Provides bright illumination with a long service life of approximately 25,000 hours.
- Weatherproof Design: Suitable for dependable indoor and outdoor installations.
- Durable Housing: Features a cast metal base with a rugged polycarbonate dome for extended durability.
- Flexible Mounting: Supports 1/2-inch threaded conduit, surface mounting, and 4-inch octagon box installation.
- Certified Performance: UL 1638 and cUL Listed for industrial visual signaling applications.
The 52A-N5-40WH delivers the reliability and precision required for industrial visual warning, process indication, and facility safety notification systems.
