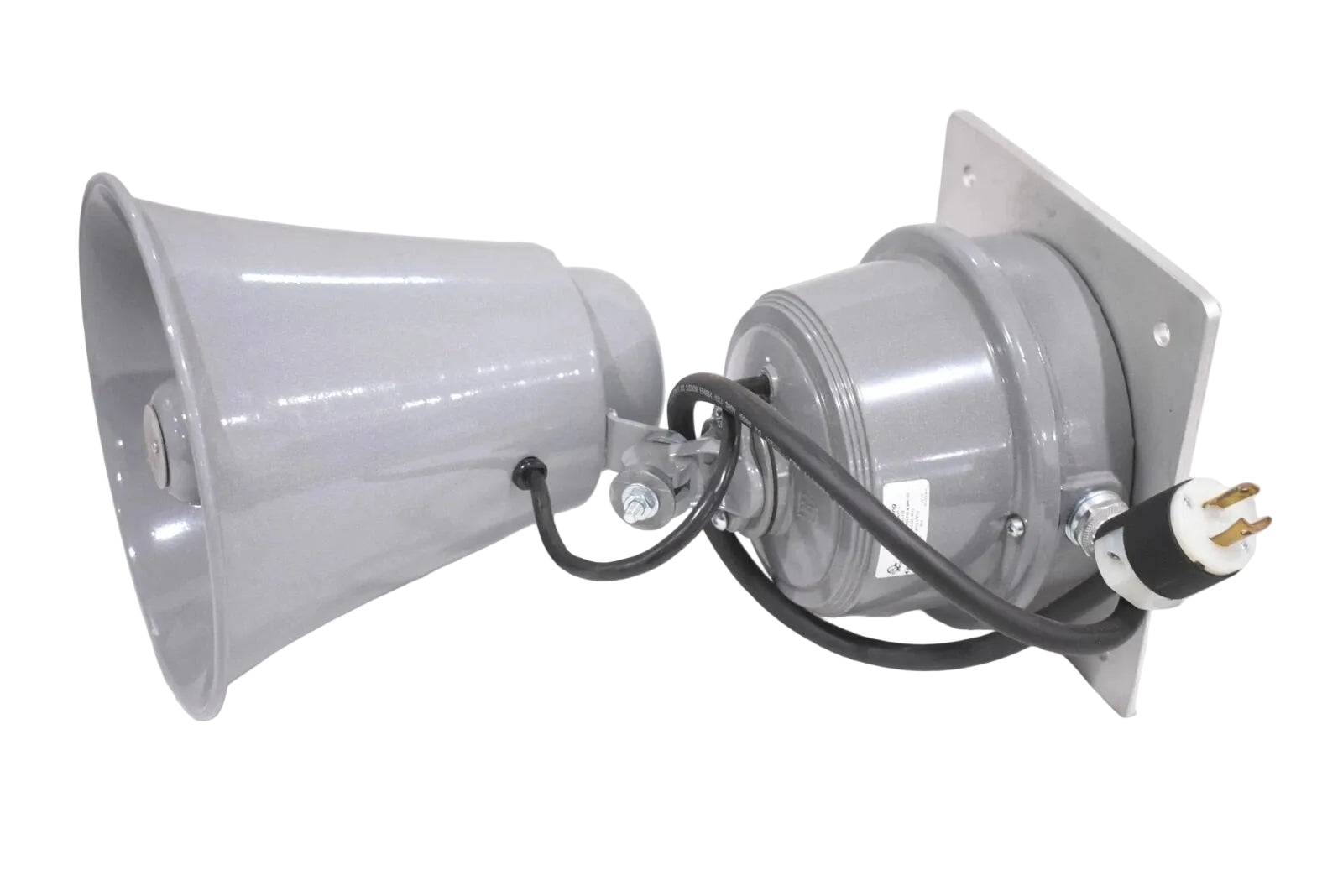

Edwards Signaling 5521-S1 Duotronic Electronic Horn 250VDC High-Decibel Audible Signal
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5521-S1
Description
The Edwards Signaling 5521-S1 Duotronic® Electronic Horn is a high-performance audible signaling device designed for industrial, commercial, and institutional notification applications. Engineered to deliver a powerful 114 dB output at 10 feet while maintaining low current consumption, it provides dependable alarm signaling for emergency warning, paging, and timing functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Audible Signaling Devices |
| Part Number | 5521-S1 |
| Subcategory | Electronic Horns |
| Series | Duotronic® |
| Model | 5521 |
| Product Type | Single Projector Electronic Horn |
| Voltage Rating | 250 VDC |
| Current Rating | 0.065 A |
| Power Rating | 16.3 VA |
| Output Frequency | 1.1 kHz |
| Sound Intensity | 114 dB at 10 ft |
| Housing Material | Metallic |
| Color | Gray |
| Mounting Type | Box Mount |
| Horizontal Adjustment | 180° Swivel |
| Vertical Adjustment | 90° Swivel |
| Approvals | UL, FM |
| Dimensions | 13-1/2 in W x 14 in H |
| Application | Alarm, Commercial, Factory, Lumber Yard, Paging, School, Timing Systems |
| Weight | 8 lb (3.63 kg) |
Information About 5521-S1
The 5521-S1 is a single-projector electronic horn from the Edwards Duotronic® Series, developed to provide high-decibel audible notification with efficient power utilization. Operating at 250 VDC, the unit generates a 1.1 kHz output frequency that delivers a clear and attention-grabbing signal suitable for alarm and communication applications. The horn features a durable metallic housing and an adjustable mounting design that swivels 180 degrees horizontally and 90 degrees vertically, allowing precise sound direction. Commonly installed in factories, schools, lumber yards, commercial facilities, and industrial plants, it can be used as either a coded signal or a continuous alarm device.
Key Features:
- High Sound Output: Produces 114 dB at 10 feet for effective audible notification.
- Low Current Consumption: Operates with only 0.065 A current draw.
- Solid-State Design: Provides dependable performance with minimal maintenance requirements.
- Single Projector Horn: Delivers focused sound projection for enhanced coverage.
- Adjustable Positioning: Swivels 180° horizontally and 90° vertically for directional control.
- 1.1 kHz Output Frequency: Generates a clear and recognizable warning tone.
- Industrial-Duty Construction: Features a durable metallic housing for demanding environments.
- Flexible Signaling Modes: Suitable for coded signaling or continuous alarm operation.
The 5521-S1 delivers the reliability and precision required for industrial alarm notification, paging, and facility-wide signaling applications.
