Edwards Signaling 5530M-120N5 Adaptatone Millennium Multi-Tone Signaling Device 120 VAC
- Regular price
- $2,369.00
- Sale price
- $2,369.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5530M-120N5
Description

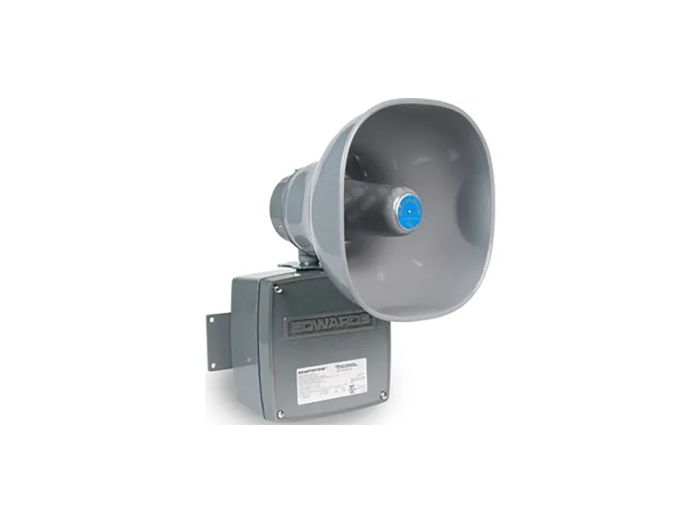

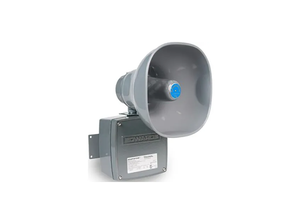

The Edwards Signaling 5530M-120N5 is a multi-tone signaling device designed to provide powerful audible notification for industrial, commercial, and hazardous-location applications. Operating on 120 VAC, the unit delivers up to 120 dB sound output and supports multiple selectable alarm tones for emergency warning and process signaling.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Industrial Signaling |
| Part Number | 5530M-120N5 |
| Subcategory | Multi-Tone Audible Signaling Devices |
| Product Series | 5530M Series |
| Product Type | Multi-Tone Signaling Device |
| Voltage Rating | 120 VAC |
| Frequency Rating | 50/60 Hz |
| Operating Current | 0.38 A |
| Standby Current | 0.1 A |
| Power Rating | 15 W |
| Tone Capacity | 55 Tones |
| Output Type | 1 Selectable Tone |
| Sound Pressure Level | 120 dB at 1 m (110 dB at 10 ft) |
| Input Activation Voltage | 120 VAC |
| Battery Backup | 24 VDC Battery Backup Terminal Included |
| Mounting Type | Conduit Mount |
| Hazardous Location Rating | Class I Div 2 Groups A, B, C, D |
| Dust Hazard Rating | Class II Div 2 Groups F, G |
| Additional Classification | Class III |
| Enclosure Rating | NEMA 3R |
| Approvals | UL (Canada and US), UL 464, UL 1604, CUL C22.2 |
| External Depth | 222 mm |
| Weight | 7.5 lb |
Information About 5530M-120N5
The 5530M-120N5 is part of the Edwards Signaling 5530M Series, a family of Adaptatone Millennium electronic signaling devices engineered for industrial safety and alarm notification systems. Designed with advanced tone generation capabilities, the unit supports up to 55 alarm tones while allowing the selection of a specific notification pattern for the application. The device is approved for Class I, Class II, and Class III hazardous locations, enabling deployment in environments where explosive gases, dust, or fibers may be present. Its integrated battery backup connection, high sound output, and conduit-mount configuration make it a dependable solution for critical facility warning systems.
Key Features:
- Multi-Tone Signaling: Supports up to 55 selectable alarm tones.
- High Audible Output: Produces up to 120 dB at 1 meter for effective notification.
- Hazardous Location Rated: Approved for Class I, II, and III hazardous environments.
- Single Tone Selection: Configured for one active selectable tone output.
- 120 VAC Operation: Designed for standard industrial AC power systems.
- Battery Backup Connection: Includes terminals for 24 VDC backup battery integration.
- NEMA 3R Enclosure: Suitable for indoor and outdoor installations.
- Adaptatone Millennium Platform: Part of the proven Edwards industrial signaling family.
The 5530M-120N5 delivers the reliability and precision required for industrial audible warning and hazardous-location notification systems.
