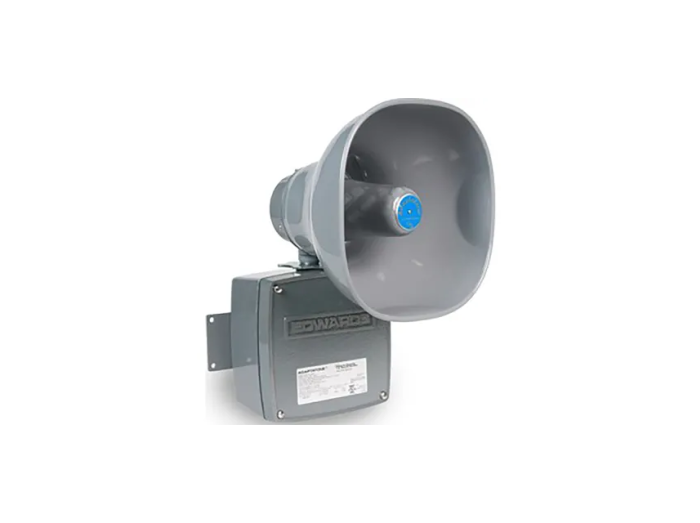

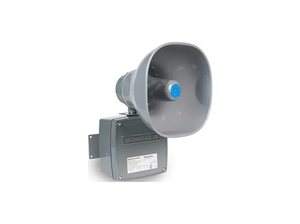

Edwards Signaling 5530MV-485Y6 Adaptatone Multi-Tone Voice Signaling Device with RS485
- Regular price
- $1,597.00
- Sale price
- $1,597.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5530MV-485Y6
Description
The Edwards Signaling 5530MV-485Y6 is a PLC-compatible multi-tone and voice signaling device designed for industrial notification and emergency communication systems. Featuring RS485 network connectivity, selectable alarm tones, and field-recordable voice messaging capabilities, it provides flexible audible notification for commercial and industrial facilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Industrial Signaling |
| Part Number | 5530MV-485Y6 |
| Subcategory | Multi-Tone Signaling Devices |
| Product Series | 5530MV |
| Product Type | PLC Compatible Multi-Tone and Voice Signaling Device |
| Brand Name | Adaptatone® |
| Communication Interface | RS485 |
| Tone Capacity | 27 Tones |
| Selectable Outputs | 4 Selectable Tones |
| Voice Capability | Field-Recordable Voice Messages |
| Nominal Voltage | 120 VAC, 240 VAC, 125 VDC, 250 VDC |
| Voltage Rating | 120/240 VAC at 50/60 Hz, 125/250 VDC |
| Operating Current @ 120 VAC | 0.24 A |
| Operating Current @ 240 VAC | 0.15 A |
| Operating Current @ 125 VDC | 0.16 A |
| Operating Current @ 250 VDC | 0.08 A |
| Current Rating Range | 0.08–0.24 A |
| PLC Compatible | Yes |
| Mounting Type | Conduit or Surface Mount |
| Construction Features | Indoor/Outdoor, Hazardous Location |
| Hazardous Location Rating | Class I Div 2 Groups A, B, C, D |
| Dust Hazard Rating | Class II Div 2 Groups F, G |
| Additional Classification | Class III |
| Enclosure Rating | NEMA 3R |
| Battery Backup | Includes 24 VDC Battery |
| Approvals | UL 464, UL 1604, CUL C22.2, CE |
| Weight | 10.6 lb (4.81 kg) |
Information About 5530MV-485Y6
The 5530MV-485Y6 is part of the Edwards Signaling Adaptatone Millennium Voice series, developed for advanced audible signaling and voice communication requirements. Designed with integrated RS485 networking, the device can be connected to distributed notification systems while supporting both tone generation and recorded voice message playback. Its PLC-compatible architecture allows seamless integration into industrial automation and safety systems. The unit is housed in a NEMA 3R enclosure and certified for Class I, II, and III Division 2 environments, making it suitable for demanding industrial facilities where reliable emergency communication is critical.
Key Features:
- RS485 Network Connectivity: Supports serial communication for distributed signaling systems.
- Voice Messaging Capability: Includes field-recordable voice message functionality.
- Multi-Tone Signaling: Supports up to 27 tones with four selectable output tones.
- PLC Compatible Design: Integrates with industrial automation and control systems.
- Dual Power Compatibility: Operates from AC or DC power sources.
- Hazardous Location Approved: Rated for Division 2 classified environments.
- Indoor and Outdoor Installation: Suitable for a wide range of facility applications.
- Battery Backup Support: Includes 24 VDC battery backup capability.
The 5530MV-485Y6 delivers the reliability and precision required for industrial audible notification, emergency communication, and process safety applications.
