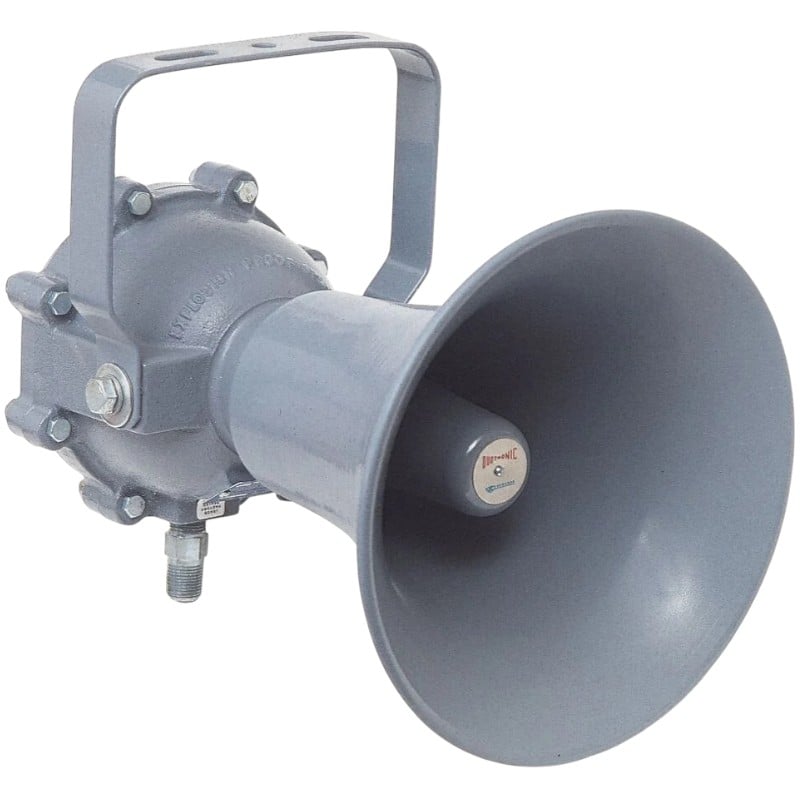

Edwards Signaling 5533M-Y6 Explosion-Proof Multi-Tone Electronic Signal Device
- Regular price
- $2,675.00
- Sale price
- $2,675.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5533M-Y6
Description
The Edwards Signaling 5533M-Y6 is an explosion-proof electronic signaling device designed to deliver high-output audible notification in hazardous industrial environments. Engineered for use with Millennium Class multi-tone signaling systems, it provides up to 55 selectable tones and powerful sound output for emergency warning and process notification applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Industrial Signaling |
| Part Number | 5533M-Y6 |
| Subcategory | Multi-Tone Signaling Devices |
| Model | 5533M |
| Product Type | Explosion-Proof Remote Speaker/Amplifier |
| Tone Capacity | 55 Selectable Tones |
| Output Type | 2 Selectable Tones |
| Sound Output | 120 dB at 1 m (110 dB at 10 ft) |
| Voltage Rating | 120–240 VAC, 50/60 Hz; 125–250 VDC |
| Input Activation Voltage | 24 VDC |
| Operating Current | 0.26 A @ 240 VAC, 0.13–0.07 A @ 250 VDC |
| Standby Current | 0.88 A @ 120/240 VAC, 0.31–0.019 A @ 125/250 VDC |
| Hazardous Location Rating | Class I Div 2 Groups A, B, C, D |
| Dust Hazard Rating | Class II Div 2 Groups F, G |
| Additional Hazard Rating | Class III |
| Enclosure Rating | NEMA 3R |
| Approvals | UL, UL (Canada and US) |
| Weight | 10.5 lb (4.76 kg) |
Information About 5533M-Y6
The 5533M-Y6 is part of the Edwards Signaling 5533M series of hazardous-location electronic signaling devices developed for industrial and fire alarm notification systems. Designed as a remote speaker/amplifier, the unit integrates with Millennium Class multi-tone signaling platforms and supports multiple audible warning patterns for flexible alarm management. The device is housed in a heavy-duty enclosure certified for Class I, II, and III hazardous locations, allowing deployment in environments where flammable gases, vapors, dust, or fibers may be present. Its high acoustic output, broad voltage compatibility, and UL approvals make it a dependable solution for critical notification applications.
Key Features:
- Explosion-Proof Design: Suitable for hazardous industrial and commercial environments.
- Multi-Tone Capability: Supports up to 55 selectable audible tones.
- High Sound Output: Produces up to 120 dB at 1 meter for effective notification.
- Dual Tone Selection: Allows selection of two different alarm tones.
- Wide Voltage Compatibility: Operates from 120–240 VAC or 125–250 VDC power sources.
- Millennium Class Integration: Designed for use with Millennium Class multi-tone signaling systems.
- Hazardous Area Certified: Rated for Class I, II, and III hazardous locations.
- Industrial Enclosure Protection: NEMA 3R enclosure for indoor and outdoor applications.
The 5533M-Y6 delivers the reliability and precision required for hazardous-location audible warning and emergency notification systems.
