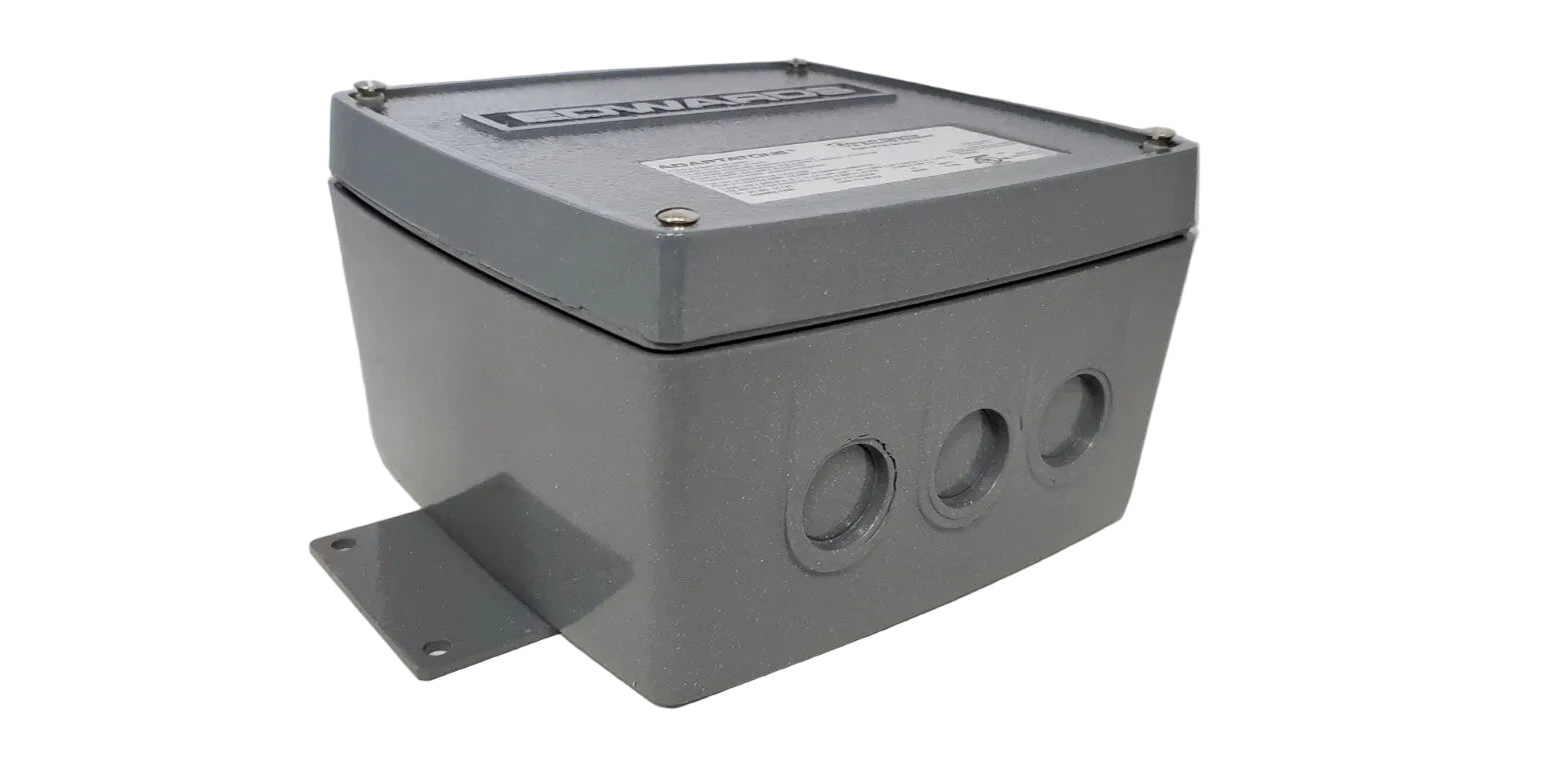

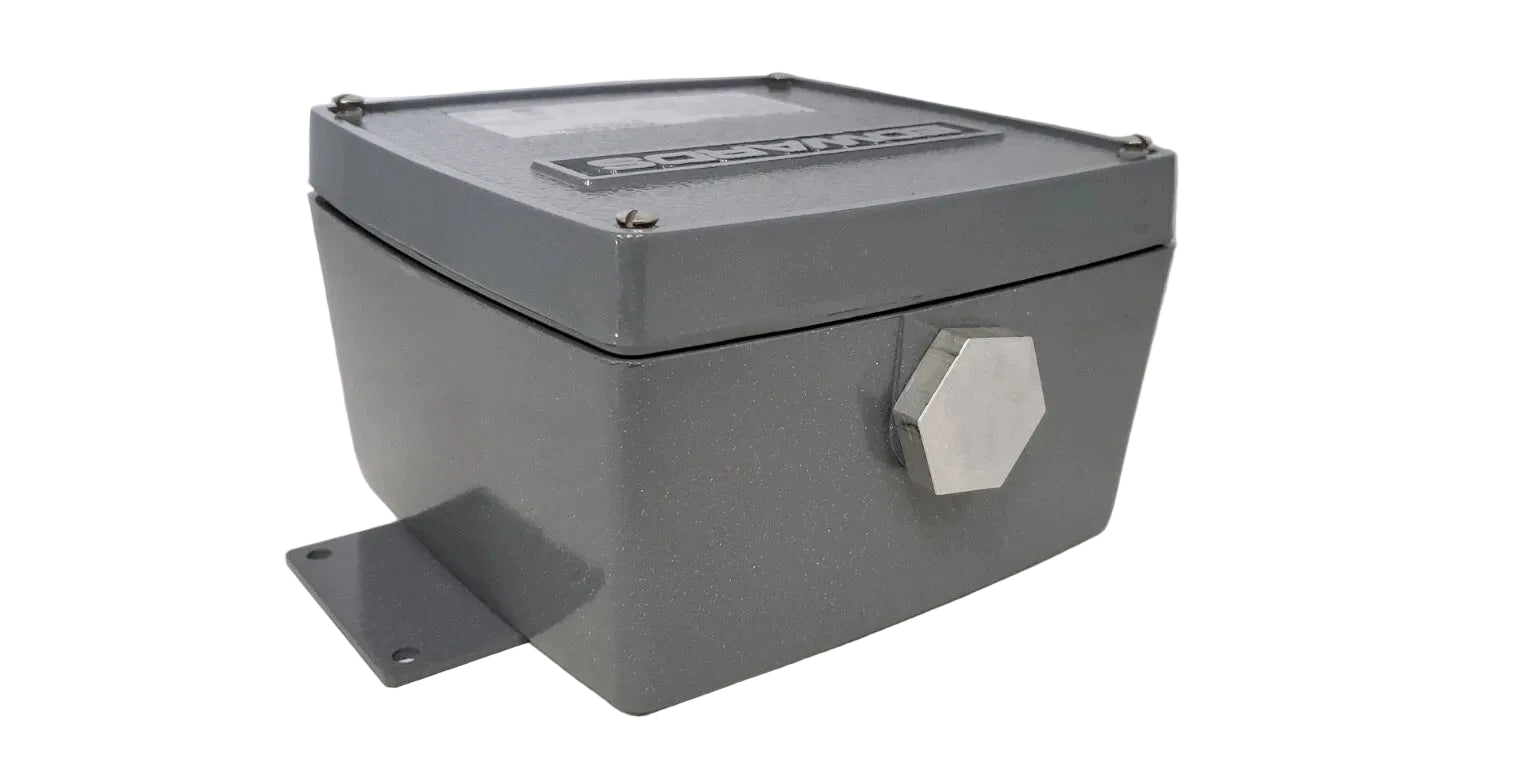

Edwards Signaling 5540MV-24N5 Adaptatone Multi-Tone Generator Module with Voice Messaging
- Regular price
- $2,074.00
- Sale price
- $2,074.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5540MV-24N5
Description
The Edwards Signaling 5540MV-24N5 Adaptatone Tone Generator Module is a programmable multi-tone signaling device designed for industrial notification, emergency warning, and plant communication applications. Supporting up to 55 selectable tones and voice-recorded messaging capabilities, it provides flexible audible signaling for a wide range of operational and safety requirements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Sound & Audio Systems |
| Part Number | 5540MV-24N5 |
| Subcategory | Tone Generator Modules |
| Series | Adaptatone® Millennium Class |
| Model | 5540MV |
| Product Type | Multi-Tone Generator Module |
| Number of Tones | 55 |
| Tone Selection | Selectable |
| Tone Selection Type | Centralized Programmable |
| Voltage Rating | 120 VAC, 50/60 Hz |
| Card Activation Voltage | 24 VDC |
| Battery Voltage | 24 VDC |
| Operating Current | 0.10 A (Signal Off), 0.36 A (Signal On) |
| Inputs | 4 |
| Outputs | 4 |
| Repetition Rate | 20 Seconds |
| Voice Message Feature | Included |
| Enclosure Rating | NEMA 3R, IP44 |
| Hazardous Location Rating | Class I Division 2 Groups A, B, C, D |
| Hazardous Location Rating | Class II Division 2 Groups F, G |
| Hazardous Location Rating | Class III |
| Approvals | UL (Canada and US) |
| Dimensions | 8 in L x 6 in W x 3-1/2 in D |
| Applications | Emergency Warning, Evacuation, Security, Paging, Process Monitoring |
| Weight | 5 lb (2.27 kg) |
Information About 5540MV-24N5
The 5540MV-24N5 is part of the Edwards Adaptatone® Millennium Class signaling platform, engineered to deliver centralized programmable audible notification in industrial and commercial facilities. The module features 55 selectable tones, four inputs, four outputs, and an integrated voice-recorded message function, allowing customized signaling based on operational requirements. Designed for use in hazardous locations, the unit is housed in a NEMA 3R and IP44 rated enclosure suitable for both indoor and outdoor installations. Common applications include emergency warning systems, plant evacuation alarms, security intrusion notification, process monitoring, shift start and dismissal signaling, and facility paging systems.
Key Features:
- 55 Selectable Tones: Provides a wide range of audible signaling options for various applications.
- Voice Message Capability: Includes recorded message functionality for enhanced communication.
- Centralized Programming: Supports centralized tone selection and system configuration.
- Four Inputs and Four Outputs: Enables flexible integration with signaling and control systems.
- Hazardous Location Rated: Approved for Division 2 classified industrial environments.
- Adaptatone® Compatibility: Designed for use with Millennium Class multi-tone signaling systems.
- Indoor and Outdoor Installation: NEMA 3R and IP44 enclosure supports challenging environments.
- Emergency Notification Support: Suitable for evacuation, process monitoring, paging, and security applications.
The 5540MV-24N5 delivers the reliability and precision required for industrial audible signaling, emergency communication, and facility-wide notification systems.
Description
The Edwards Signaling 5540MV-24N5 Adaptatone Tone Generator Module is a programmable multi-tone signaling device designed for industrial notification, emergency warning, and plant communication applications. Supporting up to 55 selectable tones and voice-recorded messaging capabilities, it provides flexible audible signaling for a wide range of operational and safety requirements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Sound & Audio Systems |
| Part Number | 5540MV-24N5 |
| Subcategory | Tone Generator Modules |
| Series | Adaptatone® Millennium Class |
| Model | 5540MV |
| Product Type | Multi-Tone Generator Module |
| Number of Tones | 55 |
| Tone Selection | Selectable |
| Tone Selection Type | Centralized Programmable |
| Voltage Rating | 120 VAC, 50/60 Hz |
| Card Activation Voltage | 24 VDC |
| Battery Voltage | 24 VDC |
| Operating Current | 0.10 A (Signal Off), 0.36 A (Signal On) |
| Inputs | 4 |
| Outputs | 4 |
| Repetition Rate | 20 Seconds |
| Voice Message Feature | Included |
| Enclosure Rating | NEMA 3R, IP44 |
| Hazardous Location Rating | Class I Division 2 Groups A, B, C, D |
| Hazardous Location Rating | Class II Division 2 Groups F, G |
| Hazardous Location Rating | Class III |
| Approvals | UL (Canada and US) |
| Dimensions | 8 in L x 6 in W x 3-1/2 in D |
| Applications | Emergency Warning, Evacuation, Security, Paging, Process Monitoring |
| Weight | 5 lb (2.27 kg) |
Information About 5540MV-24N5
The 5540MV-24N5 is part of the Edwards Adaptatone® Millennium Class signaling platform, engineered to deliver centralized programmable audible notification in industrial and commercial facilities. The module features 55 selectable tones, four inputs, four outputs, and an integrated voice-recorded message function, allowing customized signaling based on operational requirements. Designed for use in hazardous locations, the unit is housed in a NEMA 3R and IP44 rated enclosure suitable for both indoor and outdoor installations. Common applications include emergency warning systems, plant evacuation alarms, security intrusion notification, process monitoring, shift start and dismissal signaling, and facility paging systems.
Key Features:
- 55 Selectable Tones: Provides a wide range of audible signaling options for various applications.
- Voice Message Capability: Includes recorded message functionality for enhanced communication.
- Centralized Programming: Supports centralized tone selection and system configuration.
- Four Inputs and Four Outputs: Enables flexible integration with signaling and control systems.
- Hazardous Location Rated: Approved for Division 2 classified industrial environments.
- Adaptatone® Compatibility: Designed for use with Millennium Class multi-tone signaling systems.
- Indoor and Outdoor Installation: NEMA 3R and IP44 enclosure supports challenging environments.
- Emergency Notification Support: Suitable for evacuation, process monitoring, paging, and security applications.
The 5540MV-24N5 delivers the reliability and precision required for industrial audible signaling, emergency communication, and facility-wide notification systems.
