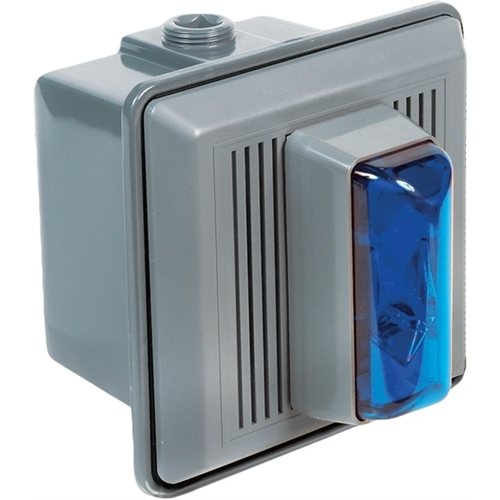

Edwards Signaling 867STRB-AQ Surface-Mount 24 VAC/VDC Blue Xenon Horn/Strobe
- Regular price
- $425.00
- Sale price
- $425.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 867STRB-AQ
Description
The Edwards Signaling 867STRB-AQ is a surface-mount electronic horn/strobe designed to provide simultaneous audible and visual notification for indoor fire alarm and emergency signaling systems. Manufactured by Edwards Signaling, the 867STRB-AQ operates on 24 VAC/VDC and combines a blue 20-candela xenon strobe with a high-decibel electronic horn for dependable occupant notification. Its low-current design and engineered thermoplastic housing make it suitable for commercial, institutional, and industrial indoor applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Fire Alarm Systems |
| Part Number | 867STRB-AQ |
| Subcategory | Horn/Strobe |
| Series | 860 Series |
| Product Type | Surface-Mount Electronic Horn/Strobe |
| Operating Voltage | 24 VAC/VDC |
| Lamp Type | Xenon |
| Light Output | 20 cd |
| Flash Rate | 60 FPM |
| Sound Intensity | 100 dB at 1 m; 90 dB at 10 ft |
| Operating Current | 0.06 A (Horn) / 0.39 A (Strobe) @ 24 VAC; 0.02 A (Horn) / 0.39 A (Strobe) @ 24 VDC |
| Housing Material | Gray Engineered Thermoplastic |
| Lens Color | Blue |
| Mounting | Surface Mount |
| Application | Indoor Fire Alarm and General Signaling |
| Approvals | UL, cUL |
| Dimensions | 5-1/2 in. W × 5-1/2 in. H |
| Weight | 3.45 lb (1.56 kg) |
Information About 867STRB-AQ
The 867STRB-AQ is part of the Edwards Signaling 860 Series of combination horn/strobe notification appliances developed for life safety systems. It incorporates a xenon strobe and electronic horn that may operate independently, allowing flexible integration into fire alarm and general signaling installations. The unit is designed for surface mounting using the supplied back box and features a durable gray engineered thermoplastic housing. Its efficient power consumption and UL-listed construction make it suitable for offices, schools, healthcare facilities, and commercial buildings.
Key Features:
- Combination Horn/Strobe: Integrates audible and visual notification in a single unit.
- 24 VAC/VDC Operation: Compatible with low-voltage fire alarm and signaling systems.
- Blue Xenon Strobe: Provides a 20-candela visual warning signal.
- Electronic Horn: Produces 100 dB at 1 meter and 90 dB at 10 feet.
- Independent Operation: Horn and strobe may be operated separately.
- Surface Mount Design: Installs using the supplied surface back box.
- Low Current Draw: Minimizes power consumption while maintaining performance.
- UL Listed: Designed for indoor life safety and emergency notification applications.
The 867STRB-AQ delivers the reliability and precision required for indoor fire alarm notification, emergency communication, and life safety signaling applications.
