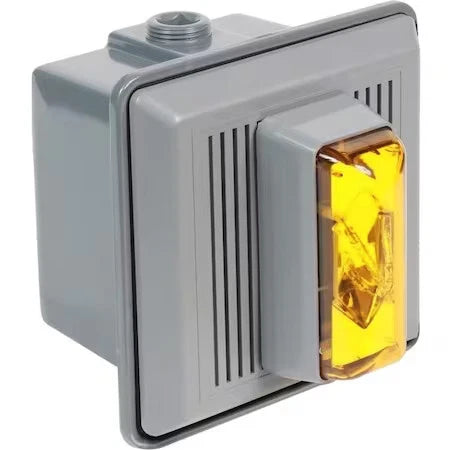

Edwards Signaling 869STRA-AQ Flush-Mount 24 VAC/VDC Horn/Strobe with Amber Xenon Lens
- Regular price
- $359.00
- Sale price
- $359.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 869STRA-AQ
Description
The Edwards Signaling 869STRA-AQ is a flush-mount horn/strobe designed to provide simultaneous audible and visual notification in indoor fire alarm and emergency signaling systems. Manufactured by Edwards Signaling, the 869STRA-AQ operates on 24 VAC/VDC and combines a 90 cd xenon strobe with a high-decibel electronic horn for effective occupant notification. Its low-current design and thermoplastic housing make it suitable for commercial, institutional, and industrial indoor installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Fire Alarm Systems |
| Part Number | 869STRA-AQ |
| Subcategory | Horn/Strobe |
| Series | 860 Series |
| Product Type | Flush-Mount Horn/Strobe |
| Operating Voltage | 24 VAC/VDC |
| Lamp Type | Xenon |
| Light Output | 90 cd |
| Flash Rate | 60 FPM |
| Sound Intensity | 90 dB at 10 ft |
| Operating Current | 0.37 A (Strobe), 0.072 A (Horn) @ 24 VAC; 0.39 A (Strobe), 0.022 A (Horn) @ 24 VDC |
| Housing Material | Gray Engineered Thermoplastic |
| Lens Color | Amber |
| Mounting | Flush Mount, 4 in. Square Box |
| Application | Indoor |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Approvals | UL 1638 (Strobe), UL 464 (Horn) |
| Dimensions | 5-1/2 in. W × 5-1/2 in. H |
| Weight | 0.9 lb (0.41 kg) |
Information About 869STRA-AQ
The 869STRA-AQ is part of the Edwards Signaling 860 Series of combination horn/strobe notification appliances engineered for indoor life safety applications. It features a xenon strobe and electronic horn that can operate independently, providing installation flexibility for fire alarm and emergency communication systems. The device is designed for flush mounting on a standard 4-inch square electrical box and incorporates a durable gray engineered thermoplastic housing. Its UL-listed construction and efficient power consumption make it suitable for offices, schools, healthcare facilities, commercial buildings, and industrial environments.
Key Features:
- Combination Horn/Strobe: Integrates audible and visual notification in one device.
- 24 VAC/VDC Operation: Compatible with low-voltage fire alarm and signaling systems.
- 90 Candela Xenon Strobe: Provides bright visual notification for emergency events.
- Independent Operation: Horn and strobe can be controlled separately.
- Electronic Horn: Produces 90 dB at 10 feet for clear audible signaling.
- Flush Mount Design: Installs on a standard 4-inch square electrical box.
- Low Current Consumption: Reduces power requirements while maintaining performance.
- UL Certified: UL 1638 listed for the strobe and UL 464 listed for the horn.
The 869STRA-AQ delivers the reliability and precision required for indoor fire alarm notification, emergency communication, and life safety applications.
