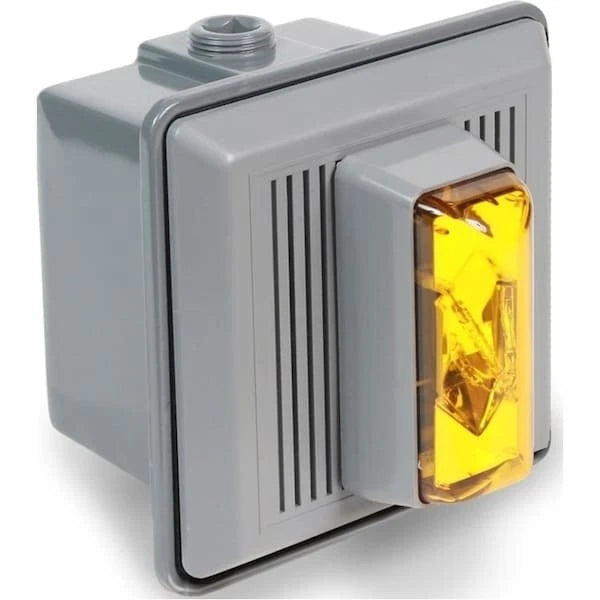

Edwards Signaling 869STRA-N5 Amber Horn Strobe Unit 120VAC Flush Mount Notification Appliance
- Regular price
- $445.00
- Sale price
- $445.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 869STRA-N5
Description
The Edwards Signaling 869STRA-N5 Horn/Strobe Unit is a combined audible and visual signaling device designed for indoor fire alarm and emergency notification applications. Featuring a high-intensity 90 candela amber xenon strobe and an integrated electronic horn, it provides effective occupant alerting in commercial, institutional, and industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Audible & Visual Signaling Devices |
| Part Number | 869STRA-N5 |
| Subcategory | Horn/Strobe Units |
| Series | 860 Series |
| Product Type | Strobe Light with Horn |
| Operating Voltage | 120 VAC |
| Operating Current (Strobe) | 0.115 A |
| Operating Current (Horn) | 0.033 A |
| Lamp Type | Xenon |
| Lens Color | Amber |
| Light Intensity | 90 cd |
| Flash Rate | 60 FPM |
| Sound Intensity | 90 dB at 10 ft |
| Housing Material | Gray Engineered Thermoplastic |
| Mounting Type | Flush Mount, 4-Inch Square Box |
| Application | Indoor |
| Ambient Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Approvals | UL 1638 (Strobe), UL 464 (Horn) |
| Dimensions | 5-1/2 in W x 5-1/2 in H |
| Weight | 1.5 lb (0.68 kg) |
Information About 869STRA-N5
The 869STRA-N5 is part of the Edwards 860 Series notification appliance family, engineered to deliver synchronized audible and visual signaling from a single compact device. Designed for flush mounting on a standard 4-inch square electrical box, the unit incorporates a durable gray engineered thermoplastic housing and an amber xenon strobe lens for enhanced visibility. Operating on 120 VAC, the appliance combines low current consumption with dependable performance, making it suitable for fire alarm, security, and emergency communication systems. Its UL-listed horn and strobe components comply with recognized life safety standards for notification appliances.
Key Features:
- Integrated Horn and Strobe: Combines audible and visual notification in one device.
- Independent Operation: Horn and strobe circuits can operate separately when required.
- 90 Candela Strobe Output: Provides high-visibility visual signaling.
- Amber Xenon Lens: Enhances notification effectiveness in indoor environments.
- Electronic Horn Design: Produces a clear 90 dB audible warning signal.
- Flush Mount Installation: Designed for standard 4-inch square electrical boxes.
- Low Current Consumption: Supports efficient system operation.
- UL Certified Components: Complies with UL 1638 and UL 464 standards.
The 869STRA-N5 delivers the reliability and precision required for indoor emergency notification and life safety signaling applications.
