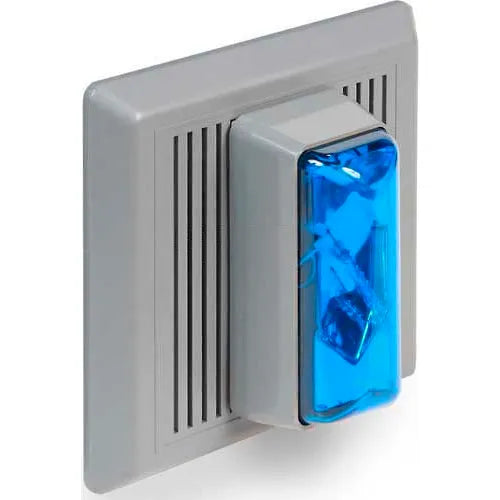

Edwards Signaling 869STRB-N5 Flush-Mount Blue Horn/Strobe 120 VAC Notification Appliance
- Regular price
- $569.00
- Sale price
- $569.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 869STRB-N5
Description
The Edwards Signaling 869STRB-N5 is a flush-mount horn and blue strobe notification appliance designed for indoor audible and visual signaling applications. Operating on 120 VAC, the device combines a high-visibility blue strobe with an electronic horn to provide effective alerting for alarms, paging, process control, and scheduling systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Notification Appliances |
| Part Number | 869STRB-N5 |
| Subcategory | Horn/Strobe Notification Devices |
| Product Series | 869STR Series |
| Brand Name | AdaptaBeacon® |
| Model | 869STR |
| Product Type | Strobe Light with Horn |
| Operating Voltage | 120 VAC |
| Operating Current | 90 mA |
| Lens Color | Blue |
| Sound Intensity | 90 dB at 10 ft |
| Flash Rate | 1 FPS |
| Housing Material | Gray Engineered Thermoplastic |
| Mounting Type | Flush Mount |
| Mounting Box | 4 in Square Box |
| Application | General Alarm, Paging, Process Control, Scheduling, Timing |
| Lamp Life | 1,000 Hours |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Approvals | UL 1638 |
| Dimensions | 5-1/2 in W × 5-1/2 in H |
| Weight | 2.97 lb (1.35 kg) |
Information About 869STRB-N5
The 869STRB-N5 is part of the Edwards Signaling AdaptaBeacon® 869STR series, developed to deliver integrated audible and visual notification from a single device. Designed with a blue strobe lens and electronic horn, the unit provides clear indication of alarms and operational events while supporting independent activation of each signaling function. The appliance is intended for flush mounting in a standard 4-inch square electrical box, offering a clean installation appearance. Its reliable performance, UL approval, and low current consumption make it a widely used solution for commercial and industrial signaling applications.
Key Features:
- Combination Horn and Strobe: Integrates audible and visual notification in one device.
- Blue Strobe Lens: Provides highly visible visual signaling for alert applications.
- Flush-Mount Installation: Designed for mounting in a standard 4-inch square box.
- Independent Operation: Horn and strobe can operate separately or together.
- 120 VAC Operation: Suitable for standard AC-powered signaling systems.
- High Audible Output: Produces 90 dB at 10 feet for effective notification.
- Low Current Consumption: Operates at only 90 mA.
- AdaptaBeacon® Design: Part of the proven Edwards visual signaling product family.
The 869STRB-N5 delivers the reliability and precision required for indoor audible and visual emergency notification applications.
