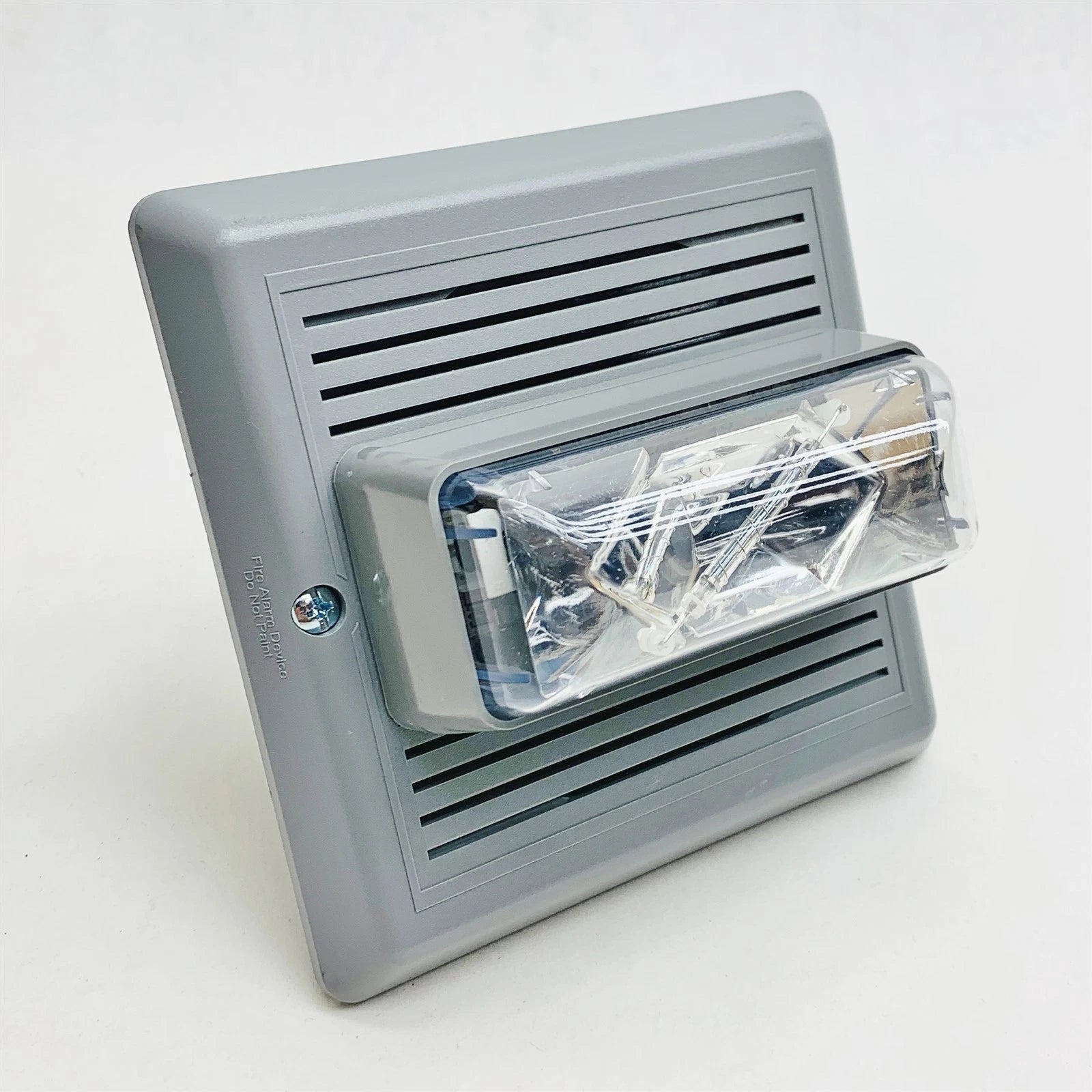

Edwards Signaling 869STRC-AQ 24V 150 Candela Clear Xenon Electronic Horn-Strobe
- Regular price
- $379.00
- Sale price
- $379.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 869STRC-AQ
Description
The Edwards Signaling 869STRC-AQ is a 24 VAC/VDC combination electronic horn-strobe designed to provide high-output audible and visual signaling for indoor fire alarm and emergency notification applications. Edwards Signaling part number 869STRC-AQ combines a high-decibel electronic horn with a clear xenon strobe in a flame-resistant gray thermoplastic housing for installation on compatible signaling circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Fire Alarm & Life Safety |
| Part Number | 869STRC-AQ |
| Subcategory | Horn Strobes |
| Series | Edwards 869 Series |
| Product Type | Electronic Horn-Strobe |
| Operating Voltage | 24 VAC/VDC |
| Audible Device | Electronic Horn |
| Visual Device | Xenon Strobe |
| Lens Color | Clear |
| Strobe Output | 150 Candela |
| Flash Rate | Approx. 60 Flashes per Minute |
| Horn Sound Output | High-Decibel Electronic Audible Signal |
| Strobe Tube Life | Approx. 1,000 Hours |
| Housing Material | Engineered Flame-Resistant Thermoplastic |
| Housing Color | Gray |
| Mounting | 4-Inch Square Electrical Box |
| Application | Indoor |
| Wiring Connection | Screw Terminals |
| Polarity | Polarized Configuration |
| Dimensions | Approx. 5.5 in W × 5.5 in H |
| Horn Approval | UL 464 |
| Strobe Approval | UL 1638 |
| Weight | Approx. 1.2 lb (0.54 kg) |
Information About 869STRC-AQ
The 869STRC-AQ is part of the Edwards 869 Series combination horn-strobe family, developed for applications requiring both audible and visual notification from a single signaling appliance. Its construction combines an electronic horn, xenon flash tube, clear lens, and engineered flame-resistant thermoplastic housing, with terminals provided for straightforward field wiring. The appliance operates from nominal 24 VAC or VDC power and is intended for indoor installations using a compatible 4-inch-square electrical box and appropriate mounting arrangement. Low-current circuitry, high sound output, polarized circuit compatibility, and a long-life strobe tube support dependable operation in commercial fire alarm and general signaling systems.
Key Features:
- Combination Notification Appliance: Integrates an electronic horn and xenon strobe into one compact signaling device.
- 24 VAC/VDC Operation: Designed for nominal 24-volt AC or DC signaling circuits.
- Clear Xenon Strobe: Uses a clear-lens xenon flash tube for high-visibility visual notification.
- 150 Candela Output: Clear-lens configuration provides a nominal 150 cd visual output.
- High-Decibel Horn: Provides strong audible notification for commercial and industrial indoor applications.
- Low Current Draw: Electronic circuitry is designed to reduce signaling circuit current requirements.
- Long-Life Flash Tube: Xenon strobe tube is rated for approximately 1,000 hours of operation.
- Flame-Resistant Housing: Engineered thermoplastic enclosure provides durable protection for the internal electronics.
- Field Wiring Terminals: Integrated terminals simplify connection to compatible notification appliance circuits.
- Standard Box Installation: Designed for mounting with a standard 4-inch-square electrical box.
- Indoor Application: Intended for protected indoor signaling and fire alarm installations.
- Listed Signaling Design: Horn and strobe functions are associated with UL 464 and UL 1638 signaling requirements.
The 869STRC-AQ delivers the reliability and precision required for combined audible and visual notification in commercial fire alarm and indoor emergency signaling systems.
