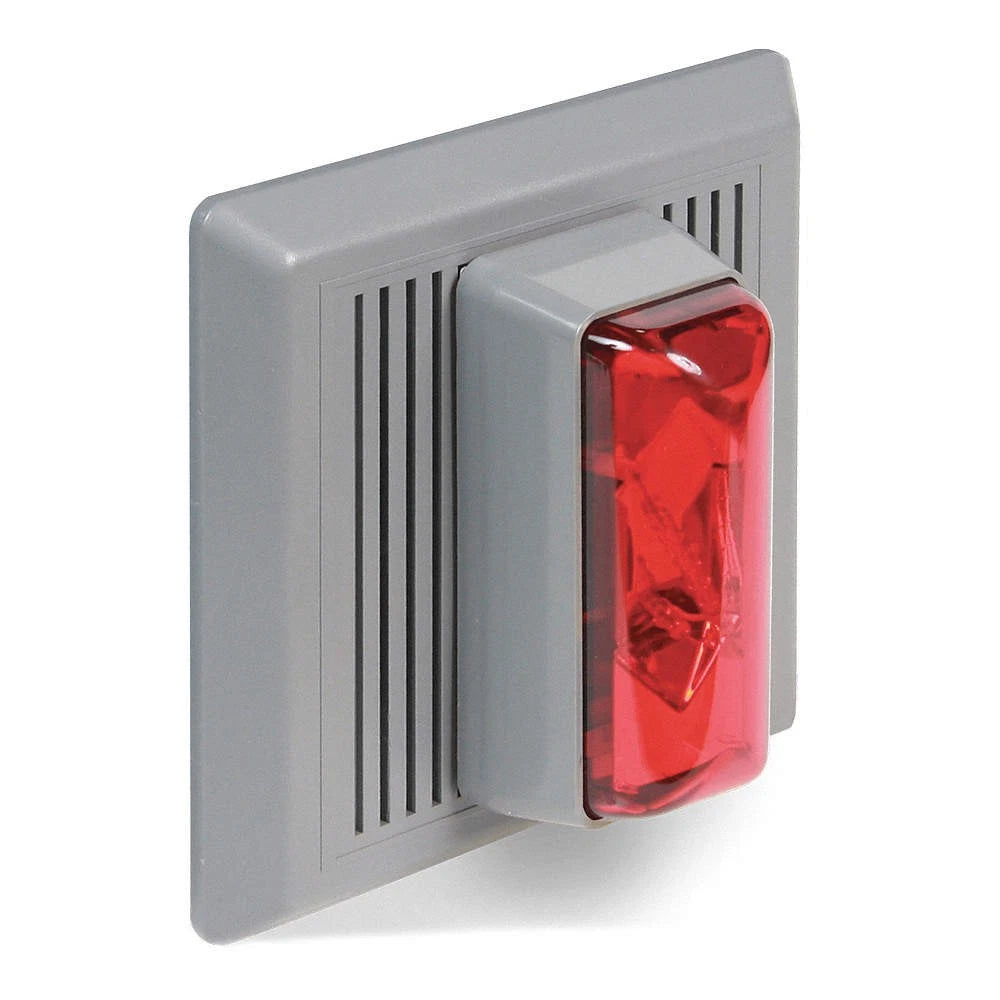

Edwards Signaling 869STRR-N5 AdaptaBeacon Red Xenon Horn Strobe
- Regular price
- $495.00
- Sale price
- $495.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 869STRR-N5
Description
The Edwards Signaling 869STRR-N5 is an AdaptaBeacon combination electronic horn and xenon strobe designed for indoor audible and visual signaling applications. Edwards Signaling part number 869STRR-N5 combines a high-decibel horn with a red-lens strobe in a gray engineered thermoplastic housing, with independent horn and strobe operation for alarm, paging, process-control, and general signaling systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Industrial Signaling |
| Part Number | 869STRR-N5 |
| Subcategory | Horn Strobes |
| Series | 869 Series / AdaptaBeacon |
| Product Type | Combination Electronic Horn and Strobe |
| Light Source | Xenon Strobe |
| Lens Color | Red |
| Horn / Strobe Operation | Independently Operable |
| Flash Rate | Approx. 60 Flashes per Minute |
| Audible Output | Approx. 100 dB at 1 m / 90 dB at 10 ft |
| Circuit Configuration | Diode Polarized for Compatible Supervised Circuits |
| Housing Material | Engineered Thermoplastic |
| Housing Color | Gray |
| Mounting Type | Indoor Flush Mount |
| Mounting Box | Standard 4 in Square Electrical Box with Extension Ring |
| Minimum Box Depth | Approx. 3 in (76 mm) Total |
| Indoor Operating Temperature | 32 to 120 °F (0 to 49 °C) |
| Indoor Humidity | Up to 85% RH at 86 °F (30 °C) |
| Strobe Tube Life | Approx. 1,000 Hours |
| Primary Application | Alarm, Paging, Process Control, Timing and General Signaling |
| Weight | Approx. 1.2 lb (0.54 kg) |
Information About 869STRR-N5
The 869STRR-N5 is part of the Edwards 869 Series AdaptaBeacon family of combination horn-strobe signaling appliances. Its assembly combines a xenon flash tube and electronic horn in a flame-resistant engineered thermoplastic enclosure, with separate circuitry allowing the audible and visual functions to operate independently when required. The appliance is designed for flush installation on a standard 4-inch-square electrical box with an extension ring providing the required mounting depth, while field terminals simplify permanent wiring. Diode polarization permits use on compatible electrically supervised signaling circuits, and the high-output horn provides approximately 100 dB at 1 meter while the xenon beacon flashes at approximately 60 flashes per minute.
Key Features:
- Combination Horn-Strobe: Integrates a high-decibel electronic horn and xenon visual beacon into one signaling appliance.
- Independent Operation: Horn and strobe circuits can be operated separately to accommodate different signaling sequences.
- Red Xenon Strobe: Provides a distinctive red visual signal for industrial and general alarm applications.
- 60 FPM Flash Rate: Xenon light source operates at approximately 60 flashes per minute.
- High Audible Output: Horn produces approximately 100 dB at 1 meter and 90 dB at 10 ft under specified test conditions.
- Low Current Design: Electronic circuitry minimizes electrical demand while maintaining strong audible and visual signaling.
- Diode Polarization: Designed for use with compatible electrically supervised signaling circuits.
- Flush-Mount Construction: Installs in a standard 4-inch-square electrical box with an appropriate extension ring.
- Durable Housing: Gray engineered thermoplastic enclosure provides mechanical protection for the signaling components.
- Field Wiring Terminals: Integrated terminals simplify electrical installation and servicing.
- Long-Life Xenon Tube: Strobe tube is designed for approximately 1,000 hours of operating life.
- General Signaling Application: Suitable for manufacturing, process control, timing, scheduling, paging, and general alarm installations.
The 869STRR-N5 delivers the reliability and precision required for combined high-decibel audible and distinctive visual signaling in commercial and industrial alarm applications.
