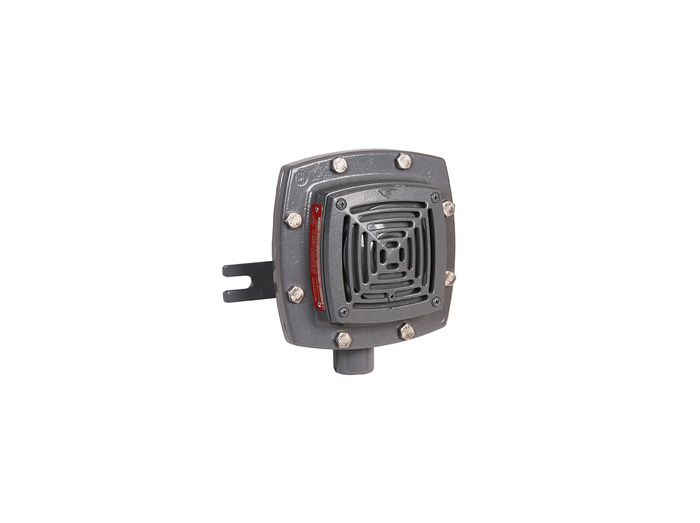

Edwards Signaling 879EX-P1 Explosion-Proof 125VDC Heavy-Duty Vibrating Horn
- Regular price
- $1,527.00
- Sale price
- $1,527.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 879EX-P1
Description
The Edwards Signaling 879EX-P1 is an explosion-proof vibrating horn engineered for high-decibel audible signaling in hazardous industrial environments. Operating on 125 VDC, it delivers powerful warning tones for emergency notification, process control, and safety applications. Its corrosion-resistant construction and hazardous-location certifications make it suitable for use in demanding facilities where reliable audible alerting is essential.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Industrial Signaling |
| Part Number | 879EX-P1 |
| Subcategory | Explosion-Proof Horns |
| Model | 879EX |
| Product Type | Vibrating Horn with Grill |
| Voltage Rating | 125 VDC |
| Current Rating | 0.025 A |
| Power Rating | 3.1 VA |
| Sound Intensity | 170 dB at 1 m, 97 dB at 10 ft |
| Housing Material | Corrosion-Resistant Heat-Flowed Epoxy |
| Mounting Type | Wall Mount |
| Conduit Tapping Size | 3/4 in |
| DC Coil Resistance | 600 Ohm |
| Hazardous Location Rating | Class I Div 1 & 2 Groups B, C, D |
| Dust Hazard Rating | Class II Div 1 & 2 Groups E, F, G |
| Additional Classification | Class III |
| Enclosure Rating | NEMA 4X |
| Approvals | UL Listed |
| Application | Indoor/Outdoor, Mining, Petroleum, Gas Plants, Grain Elevators, Paper Mills, Textile Plants, Tankers |
| Dimensions | 7-3/8 in W × 4-3/16 in D × 7-5/8 in H |
| Weight | 7.8 lb (3.54 kg) |
Information About 879EX-P1
The 879EX-P1 is part of the Edwards Signaling 879EX series of heavy-duty vibrating horns developed for hazardous and classified locations. Designed with a corrosion-resistant epoxy-coated housing and explosion-proof enclosure, the unit is built to withstand harsh industrial conditions while maintaining dependable performance. The horn provides high-intensity audible signaling for mines, petroleum facilities, gas plants, grain elevators, paper mills, textile plants, and marine applications. Its wall-mount configuration and NEMA 4X protection allow installation in both indoor and outdoor environments requiring rugged notification equipment.
Key Features:
- Explosion-Proof Design: Certified for hazardous and classified industrial locations.
- High-Decibel Output: Produces up to 170 dB at 1 meter for maximum audibility.
- Vibrating Horn Technology: Delivers dependable audible warning signals.
- 125 VDC Operation: Designed for industrial DC-powered systems.
- Corrosion-Resistant Housing: Features heat-flowed epoxy-coated construction.
- NEMA 4X Enclosure: Suitable for indoor and outdoor installations.
- Hazardous Location Approved: Certified for Class I, II, and III environments.
- Industrial Application Ready: Designed for oil, gas, mining, marine, and manufacturing facilities.
The 879EX-P1 delivers the reliability and precision required for hazardous-location audible warning and industrial safety notification systems.
