Edwards Signaling EG1VRF Genesis LED Wall Mount Horn Strobe 15/30/75 Candela
- Regular price
- $65.00
- Sale price
- $65.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EG1VRF
Description

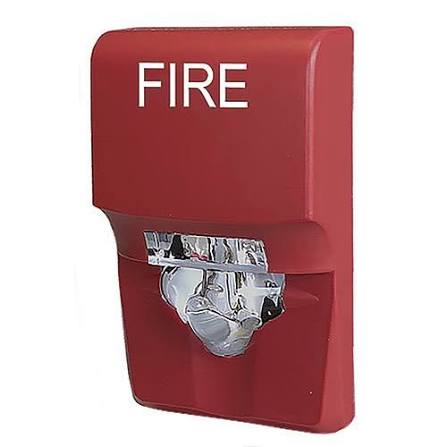

The Edwards Signaling EG1VRF is a Genesis LED Series wall-mounted horn-strobe notification appliance designed to provide combined audible and visual signaling in indoor fire alarm and life-safety systems. Edwards Signaling part number EG1VRF combines a low-profile housing, high-efficiency LED strobe technology, selectable candela settings, configurable horn output, and synchronization capability for compatible notification appliance circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Fire Alarm & Life Safety |
| Part Number | EG1VRF |
| Subcategory | Horn Strobes |
| Series | Genesis LED / EG1 Series |
| Product Type | Audible-Visual Notification Appliance |
| Notification Functions | Horn and LED Strobe |
| Light Source | High-Efficiency LED |
| Strobe Intensity | Field Selectable: 15, 30 or 75 cd |
| Installation Type | Wall Mount |
| Synchronization | Genesis Compatible Strobe Synchronization |
| Audible Output | Field Configurable |
| Primary Application | Fire Alarm / Emergency Occupant Notification |
| Environment | Indoor |
| Diagnostic Feature | Under-Cover Circuit Test Points |
| Typical Applications | Commercial Buildings, Schools, Healthcare Facilities, Offices and Industrial Facilities |
| Weight | Approx. 0.5 lb (0.23 kg) |
Information About EG1VRF
The EG1VRF is an Edwards Genesis LED Series audible-visible notification appliance developed for commercial fire alarm and emergency signaling installations. Its high-efficiency LED optical system produces a controlled visual notification pattern while requiring less operating current than traditional xenon-strobe technology, helping reduce NAC power and circuit requirements. The device incorporates selectable 15, 30, or 75 cd light output, configurable audible output, and Genesis synchronization technology for coordinated operation of multiple compatible appliances on the same notification circuit. A compact wall-mounted enclosure and accessible diagnostic test points simplify installation, circuit testing, inspection, and maintenance in offices, schools, healthcare facilities, industrial buildings, and other code-regulated occupancies.
Key Features:
- Combined notification appliance: Integrates audible horn signaling and visual LED strobe notification in one wall-mounted device.
- Genesis LED Series: Uses Edwards high-efficiency LED technology to reduce notification-circuit power requirements.
- Selectable candela output: Provides field-selectable 15, 30, or 75 cd visual intensity for application-specific configuration.
- High-efficiency optics: Focuses strobe illumination into a controlled distribution pattern for effective visual signaling.
- Configurable audible output: Field-adjustable sound settings allow the notification level to be matched to installation requirements.
- Strobe synchronization: Genesis control technology supports synchronized flashing of compatible devices on supported NAC circuits.
- Low-profile construction: Compact enclosure minimizes projection from the wall for a cleaner installed appearance.
- Diagnostic access: Under-cover test points simplify circuit measurements and troubleshooting without removing the installed device.
- Reduced circuit loading: Efficient LED electronics can lower current demand compared with conventional xenon notification appliances.
- Indoor installation: Designed for protected indoor fire alarm and emergency notification applications.
- Life-safety integration: Intended for connection to compatible fire alarm notification appliance circuits and signaling equipment.
- Code-oriented operation: Designed for life-safety installations requiring coordinated audible and visual occupant notification.
The EG1VRF delivers the reliability and precision required for synchronized audible and visual notification in commercial fire alarm and life-safety systems.
