Product Description P/N: MN-COM1S
Description
The Edwards Signaling MN-COM1S is a TCP/IP to RS-232 communications interface designed to connect FireWorks® workstations with EST3 fire alarm control panels. Manufactured by Edwards Signaling, the MN-COM1S provides secure Ethernet-based communication for command, control, and system monitoring in mass notification and life safety applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Fire Alarm Systems |
| Part Number | MN-COM1S |
| Subcategory | Fire Alarm Communication Interface |
| Product Type | TCP/IP to RS-232 Interface |
| System Compatibility | Edwards Signaling EST3 Fire Alarm Systems |
| Application | FireWorks Workstation Communication |
| Network Interface | 1 × RJ-45 Ethernet Port |
| Serial Interface | 1 × RS-232 Port |
| Ethernet Speed | 10/100 Mbps Auto-Negotiating |
| Communication Protocol | TCP/IP |
| Configuration | Embedded Browser-Based Interface |
| Supply Voltage | 18–28 VDC |
| Current Consumption | 60 mA |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | 0–93% Non-Condensing |
| Approvals | UL 864, CE, FCC Part 15 Class A |
| Included Accessories | Power Cable, RS-232 Data Cable |
| Weight | 1.5 lb (0.68 kg) |
Information About MN-COM1S

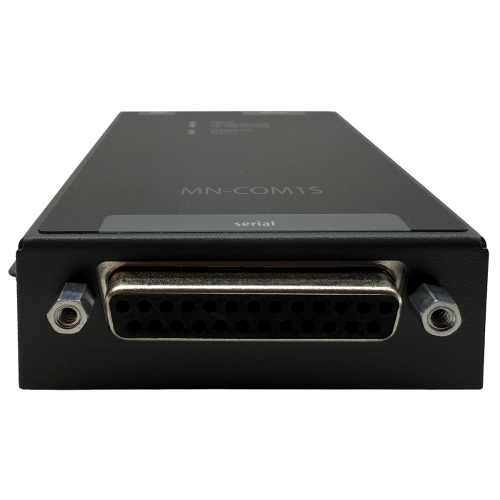

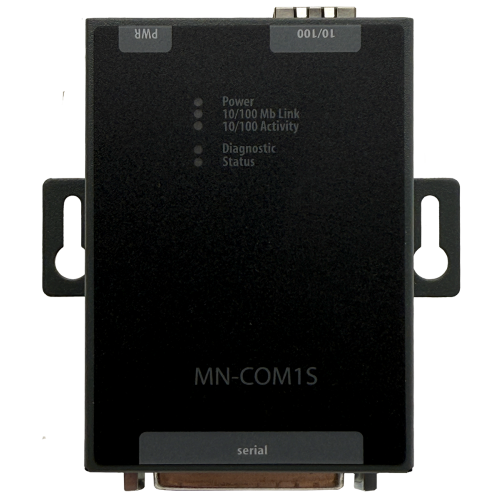

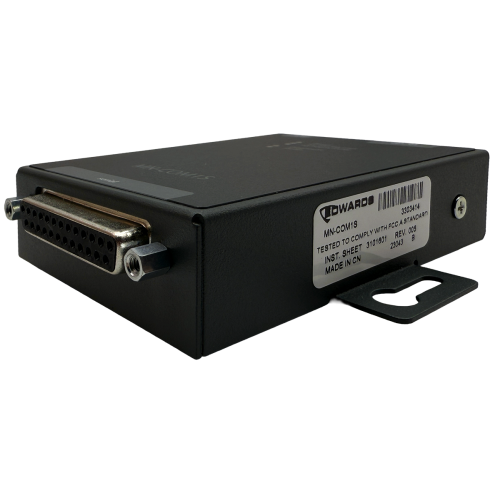

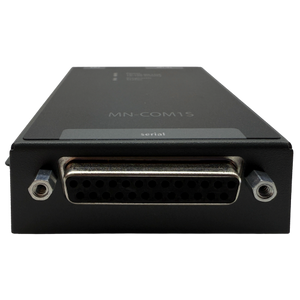

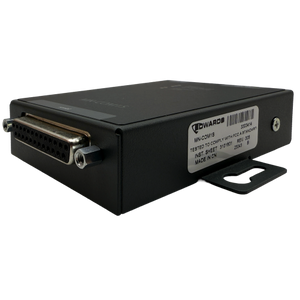

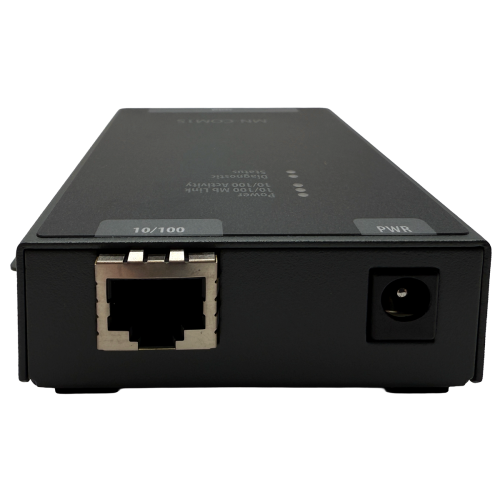

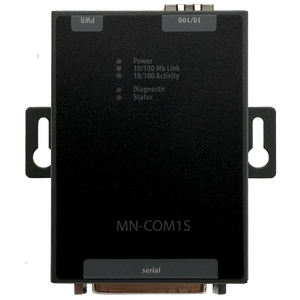

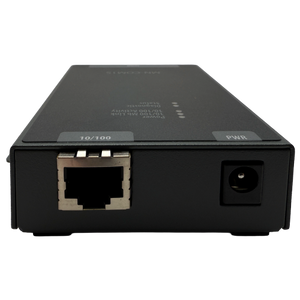

The MN-COM1S is a communications interface developed for the Edwards Signaling EST3 Mass Notification platform. It functions as a TCP/IP-to-RS-232 gateway, enabling reliable communication between a FireWorks workstation and an EST3 control panel through a standard Ethernet network. The module features one RJ-45 Ethernet port and one RS-232 serial port, supports browser-based configuration, and mounts inside compatible EST3 control panels or APS auxiliary power supply enclosures using dedicated mounting brackets. Designed for life safety applications, it is UL 864 listed and supplied with power and RS-232 data cables for installation.
Key Features:
- TCP/IP to RS-232 Interface: Bridges Ethernet communication with RS-232 serial devices.
- FireWorks® Integration: Connects FireWorks workstations directly to EST3 fire alarm control panels.
- Dual Communication Ports: Includes one RJ-45 Ethernet port and one RS-232 serial port.
- Browser-Based Configuration: Supports setup and configuration through an embedded web interface.
- UL 864 Listed: Certified for fire protective signaling and life safety applications.
- Flexible Installation: Mounts inside EST3 panels or APS auxiliary power supply enclosures.
- Complete Installation Kit: Includes power cable and RS-232 data cable.
- Reliable Network Communication: Supports 10/100 Mbps auto-negotiating Ethernet over TCP/IP.
The MN-COM1S delivers the reliability and precision required for secure fire alarm communications, network integration, and life safety system management.
