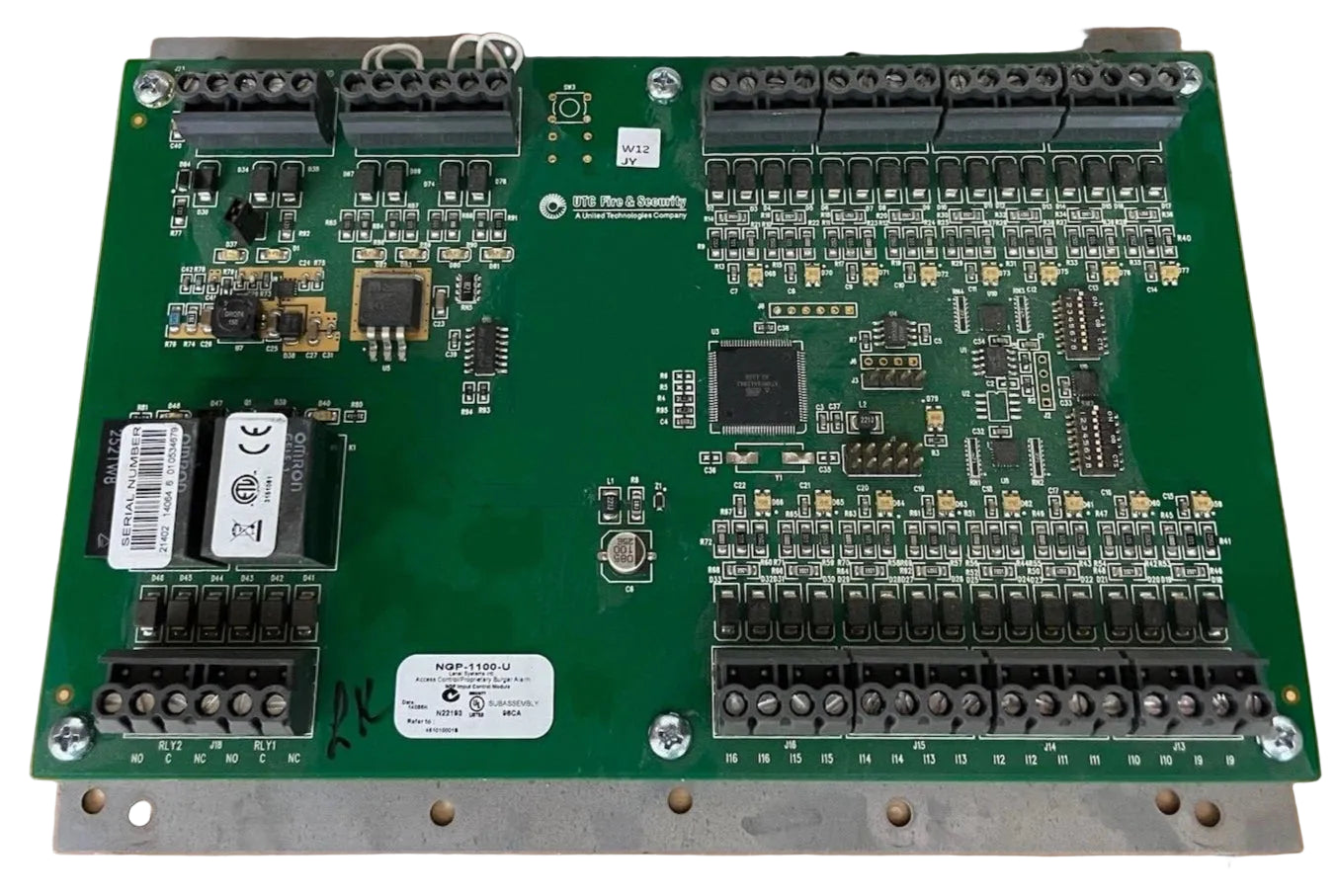

Edwards Signaling NGP-1100-U Intelligent Controller Module for Access Control Systems
- Regular price
- $457.00
- Sale price
- $457.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NGP-1100-U
Description
The Edwards Signaling NGP-1100-U is an intelligent controller module designed to support access control and security management applications. Manufactured by Edwards Signaling, the NGP-1100-U operates from a 12 to 24 VDC power source and provides reliable communication and control for integrated security systems while meeting industry compliance standards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Security Systems |
| Part Number | NGP-1100-U |
| Subcategory | Intelligent Controller Module |
| Input Voltage | 12 to 24 VDC ±10% |
| Current Consumption | 300 mA @ 12 VDC; 150 mA @ 24 VDC |
| Power Dissipation | 12.3 BTU/hour |
| Circuit Type | Low Voltage, Power-Limited Class 2 |
| Operating Temperature | 14°F to 158°F (-10°C to +70°C) |
| Storage Temperature | -40°F to 185°F (-40°C to +85°C) |
| Operating Humidity | 10% to 93% Non-Condensing |
| Storage Humidity | 10% to 95% Non-Condensing |
| Dimensions | 5 × 8 × 1.25 in. (127 × 203 × 32 mm) |
| Approvals | UL 294, UL 1076, FCC Part 15 Class A, CE, RoHS, C-Tick, WEEE |
| Application | Integrated Access Control Systems |
| Weight | 6.2 oz. (188 g) |
Information About NGP-1100-U
The NGP-1100-U is an intelligent control module developed for use within Edwards Signaling networked access control platforms. Designed for low-voltage, power-limited Class 2 circuits, it provides dependable communication between system controllers and connected security devices. The module features a compact form factor for convenient installation inside compatible control enclosures while supporting continuous operation across a wide industrial temperature range. Certified to UL 294 and UL 1076 standards, it is well suited for commercial and institutional security applications requiring reliable access control management.
Key Features:
- Intelligent Control Module: Provides communication and control for integrated access control systems.
- Low-Voltage Operation: Supports 12–24 VDC input for flexible system integration.
- Power-Limited Design: Intended for Class 2 low-voltage security circuits.
- Compact Construction: Fits easily into compatible control panel enclosures.
- Wide Operating Temperature: Operates reliably from -10°C to +70°C.
- Regulatory Compliance: Certified to UL 294 and UL 1076 security standards.
- EMC Certified: Meets FCC Part 15 Class A and CE requirements.
- Environmentally Compliant: RoHS and WEEE compliant for environmentally responsible installations.
The NGP-1100-U delivers the reliability and precision required for integrated access control, security management, and commercial building protection systems.
