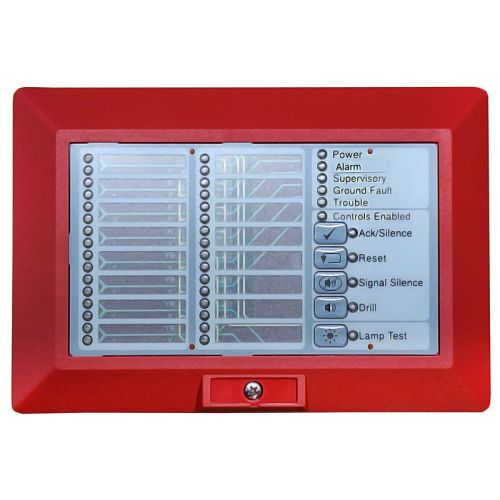

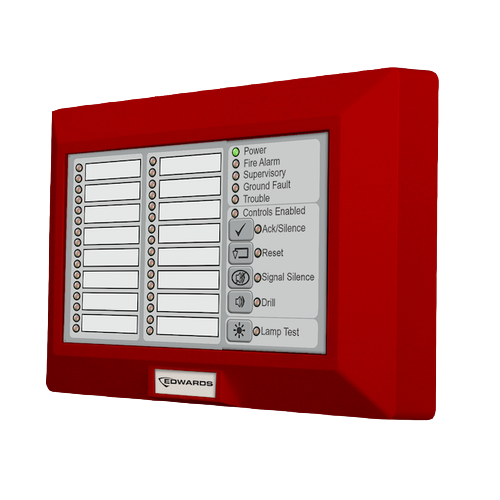

Edwards Signaling RLED-CR 16-Pair LED Zone Annunciator with Common Controls Red
- Regular price
- $564.00
- Sale price
- $564.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RLED-CR
Description
The Edwards Signaling RLED-CR is a 16-pair LED zone annunciator designed to provide remote fire alarm system status indication and common control functions. Featuring a red enclosure with English labeling, the annunciator delivers clear visual monitoring of alarm and trouble conditions while enabling remote system operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Fire Alarm Controls |
| Part Number | RLED-CR |
| Subcategory | Remote LED Annunciators |
| Product Series | R-Series |
| Product Type | 16-Pair LED Zone Annunciator |
| Zone Capacity | 16 Zone Groups |
| LED Configuration | 16 Pairs of Alarm and Trouble LEDs |
| Housing Color | Red |
| Language | English |
| Communication Protocol | RS-485 |
| Communication Wiring | Class A or Class B |
| Common Controls | Ack/Silence, Reset, Signal Silence, Drill, Lamp Test |
| Common Indicators | Power, Alarm, Supervisory, Trouble, Ground Fault, Controls Enabled |
| Internal Audible Indicator | Built-In Buzzer |
| Operating Voltage | 24 VDC |
| Standby Current | 154 mA |
| Alarm Current | 166 mA |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity Rating | Up to 93% RH Non-Condensing |
| Mounting Type | Standard 4-Inch Square Electrical Box |
| Dimensions | 8.5 in W × 5.75 in H × 1.5 in D |
| Weight | 2.0 lb (0.91 kg) |
Information About RLED-CR
The RLED-CR is part of the Edwards R-Series family of remote annunciators developed for centralized fire alarm monitoring and control. Designed with 16 zone groups, each containing dedicated alarm and trouble indicators, the unit allows operators to quickly identify system conditions from a remote location. Common control switches provide functions such as acknowledge, signal silence, reset, drill, and lamp test, reducing response time during alarm events. The annunciator communicates with compatible fire alarm control panels through RS-485 communications and can be expanded using optional R-Series LED expansion modules.
Key Features:
- 16-Pair LED Annunciation: Provides 16 zone groups with dedicated alarm and trouble indicators.
- Common Control Functions: Includes Ack/Silence, Reset, Signal Silence, Drill, and Lamp Test controls.
- Remote Fire Alarm Monitoring: Displays system status from a remote location.
- RS-485 Communications: Supports Class A or Class B communication wiring.
- Internal Audible Buzzer: Provides local audible indication of system events.
- Expandable Architecture: Supports up to two optional LED expansion modules.
- Red Housing Design: English-labeled red enclosure for fire alarm applications.
- No Programming Required: Receives configuration and status information directly from the control panel.
The RLED-CR delivers the reliability and precision required for remote fire alarm annunciation and system control applications.
