Edwards Signaling WG4RF-SVMHC Genesis WG4 High-Candela Outdoor Speaker Strobe Red FIRE
- Regular price
- $262.00
- Sale price
- $262.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WG4RF-SVMHC
Description
The Edwards Signaling WG4RF-SVMHC is a Genesis WG4 Series high-candela speaker-strobe designed for indoor and outdoor fire alarm notification applications. Edwards Signaling part number WG4RF-SVMHC combines a field-selectable voice evacuation speaker with a clear-lens xenon strobe offering 102, 123, 147, and 161 candela settings in a red housing marked FIRE.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Fire Alarm & Life Safety |
| Part Number | WG4RF-SVMHC |
| Subcategory | Outdoor Speaker Strobes |
| Series | Genesis WG4 Series |
| Product Type | High-Candela Speaker-Strobe Notification Appliance |
| Housing Color / Marking | Red / FIRE |
| Light Source | Xenon Strobe |
| Lens | Clear |
| Candela Settings | 102, 123, 147, 161 cd |
| Speaker Voltage | 25 VRMS or 70 VRMS, Field Selectable |
| Speaker Power Taps | 1/4, 1/2, 1, or 2 W |
| Strobe Operating Voltage | Nominal 24 VDC / 24 VFWR |
| Synchronization | Genesis Synchronization Compatible |
| Strobe Signaling | Continuous / Field-Configurable Temporal Option |
| Mounting Orientation | Wall or Ceiling |
| Environment | Indoor / Outdoor / Wet / Harsh Locations |
| Operating Temperature | Approx. -40°F to 151°F (-40°C to 66°C) |
| Field Wiring | 18–12 AWG (0.75–2.5 mm²) |
| Wiring Access | Room-Side |
| Primary Application | Emergency Voice Evacuation and Visual Fire Alarm Notification |
| Weight | Approx. 1.5 lb (0.68 kg) |
Information About WG4RF-SVMHC
The WG4RF-SVMHC is a Genesis WG4 Series weather-resistant speaker-strobe engineered for emergency voice communication and visual notification systems. Its low-profile construction incorporates a multi-tap speaker and high-output xenon strobe, with field-selectable speaker voltage, wattage, and candela settings that allow the appliance to be configured for specific installation requirements. The speaker supports compatible 25 VRMS or 70 VRMS audio circuits, while the visual section operates from a nominal 24 VDC or 24 VFWR notification appliance circuit and supports Genesis synchronization. Designed for wall or ceiling mounting, the appliance features room-side wiring, a wide environmental operating range, and construction suitable for demanding locations such as parking structures, industrial facilities, process areas, and exposed commercial spaces.
Key Features:
- High-Candela Strobe: Provides field-selectable 102, 123, 147, and 161 cd visual output for large or demanding notification areas.
- Voice Evacuation Speaker: Integrated speaker provides intelligible emergency voice and evacuation signaling from compatible audio systems.
- Dual Speaker Voltage: Field configurable for compatible 25 VRMS or 70 VRMS speaker circuits.
- Selectable Speaker Taps: Supports multiple field-selectable wattage settings for balancing sound output and amplifier loading.
- Xenon Strobe Technology: Clear-lens xenon light source provides high-intensity visual fire alarm notification.
- Genesis Synchronization: Fully compatible with supported Genesis synchronization protocols for coordinated strobe operation.
- Temporal Strobe Capability: Supports field-configurable temporal visual signaling where permitted by the system configuration.
- Indoor/Outdoor Rating: Designed for indoor, outdoor, wet, and demanding environmental applications when properly installed.
- Wide Temperature Range: Suitable for environments with temperatures from approximately -40°F to 151°F (-40°C to 66°C).

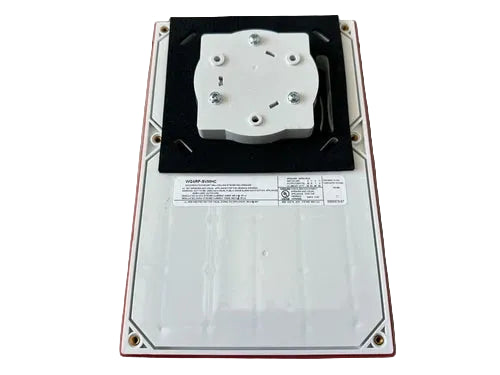

- Flexible Mounting: Low-profile construction supports both wall and ceiling mounting configurations.
- Room-Side Wiring: Accepts 18 to 12 AWG (0.75 to 2.5 mm²) wiring with connections accessible from the room side.
- FIRE Identification: Red enclosure with FIRE marking clearly identifies the appliance as part of the fire alarm notification system.
The WG4RF-SVMHC delivers the reliability and precision required for high-output visual notification and emergency voice evacuation signaling in demanding indoor and outdoor fire alarm applications.
Description
The Edwards Signaling WG4RF-SVMHC is a Genesis WG4 Series high-candela speaker-strobe designed for indoor and outdoor fire alarm notification applications. Edwards Signaling part number WG4RF-SVMHC combines a field-selectable voice evacuation speaker with a clear-lens xenon strobe offering 102, 123, 147, and 161 candela settings in a red housing marked FIRE.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Fire Alarm & Life Safety |
| Part Number | WG4RF-SVMHC |
| Subcategory | Outdoor Speaker Strobes |
| Series | Genesis WG4 Series |
| Product Type | High-Candela Speaker-Strobe Notification Appliance |
| Housing Color / Marking | Red / FIRE |
| Light Source | Xenon Strobe |
| Lens | Clear |
| Candela Settings | 102, 123, 147, 161 cd |
| Speaker Voltage | 25 VRMS or 70 VRMS, Field Selectable |
| Speaker Power Taps | 1/4, 1/2, 1, or 2 W |
| Strobe Operating Voltage | Nominal 24 VDC / 24 VFWR |
| Synchronization | Genesis Synchronization Compatible |
| Strobe Signaling | Continuous / Field-Configurable Temporal Option |
| Mounting Orientation | Wall or Ceiling |
| Environment | Indoor / Outdoor / Wet / Harsh Locations |
| Operating Temperature | Approx. -40°F to 151°F (-40°C to 66°C) |
| Field Wiring | 18–12 AWG (0.75–2.5 mm²) |
| Wiring Access | Room-Side |
| Primary Application | Emergency Voice Evacuation and Visual Fire Alarm Notification |
| Weight | Approx. 1.5 lb (0.68 kg) |
Information About WG4RF-SVMHC
The WG4RF-SVMHC is a Genesis WG4 Series weather-resistant speaker-strobe engineered for emergency voice communication and visual notification systems. Its low-profile construction incorporates a multi-tap speaker and high-output xenon strobe, with field-selectable speaker voltage, wattage, and candela settings that allow the appliance to be configured for specific installation requirements. The speaker supports compatible 25 VRMS or 70 VRMS audio circuits, while the visual section operates from a nominal 24 VDC or 24 VFWR notification appliance circuit and supports Genesis synchronization. Designed for wall or ceiling mounting, the appliance features room-side wiring, a wide environmental operating range, and construction suitable for demanding locations such as parking structures, industrial facilities, process areas, and exposed commercial spaces.
Key Features:
- High-Candela Strobe: Provides field-selectable 102, 123, 147, and 161 cd visual output for large or demanding notification areas.
- Voice Evacuation Speaker: Integrated speaker provides intelligible emergency voice and evacuation signaling from compatible audio systems.
- Dual Speaker Voltage: Field configurable for compatible 25 VRMS or 70 VRMS speaker circuits.
- Selectable Speaker Taps: Supports multiple field-selectable wattage settings for balancing sound output and amplifier loading.
- Xenon Strobe Technology: Clear-lens xenon light source provides high-intensity visual fire alarm notification.
- Genesis Synchronization: Fully compatible with supported Genesis synchronization protocols for coordinated strobe operation.
- Temporal Strobe Capability: Supports field-configurable temporal visual signaling where permitted by the system configuration.
- Indoor/Outdoor Rating: Designed for indoor, outdoor, wet, and demanding environmental applications when properly installed.
- Wide Temperature Range: Suitable for environments with temperatures from approximately -40°F to 151°F (-40°C to 66°C).
- Flexible Mounting: Low-profile construction supports both wall and ceiling mounting configurations.
- Room-Side Wiring: Accepts 18 to 12 AWG (0.75 to 2.5 mm²) wiring with connections accessible from the room side.
- FIRE Identification: Red enclosure with FIRE marking clearly identifies the appliance as part of the fire alarm notification system.
The WG4RF-SVMHC delivers the reliability and precision required for high-output visual notification and emergency voice evacuation signaling in demanding indoor and outdoor fire alarm applications.
