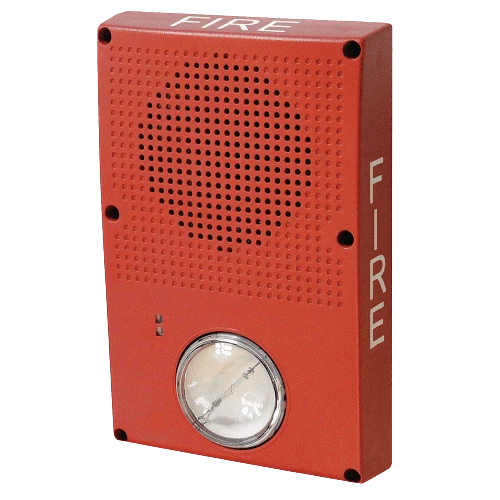

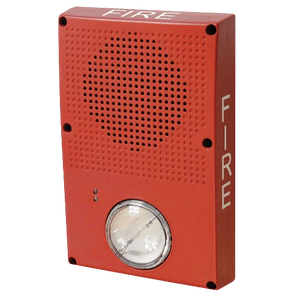

Edwards WG4RF-HVMC Genesis WG4 Outdoor Red FIRE Horn Strobe with Selectable Candela
- Regular price
- $215.00
- Sale price
- $215.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WG4RF-HVMC
Description
The Edwards WG4RF-HVMC is a Genesis WG4 Series outdoor horn-strobe designed to provide combined audible and visual fire alarm notification in wet, harsh, and temperature-extreme environments. Edwards part number WG4RF-HVMC features a red housing with FIRE marking, field-selectable standard candela output, a high-output 3.2 kHz horn, and operation from nominal 24 VDC or 24 VFWR notification circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Fire Alarm & Life Safety |
| Part Number | WG4RF-HVMC |
| Subcategory | Outdoor Horn Strobes |
| Series | Genesis WG4 |
| Product Type | Outdoor Audible/Visual Horn-Strobe |
| Housing Color / Marking | Red / FIRE |
| Nominal Operating Voltage | 24 VDC or 24 VFWR |
| Horn Frequency | 3.2 kHz |
| UL 1971 Indoor Candela Settings | 15, 29, 70, 87 cd |
| UL 1638 Outdoor Candela at -35°C | 6, 12, 28, 35 cd |
| CAN/ULC-S526 Candela at -40°C | 1, 3, 8, 10 cd |
| Strobe Current at 24 VDC | 107, 130, 210, 238 mA RMS, depending on candela setting |
| Horn Output, Temporal High at 24 V | 90.5 dBA UL 464; 100.5 dBA ULC-S525 |
| Operating Temperature | -40°F to 151°F (-40°C to 66°C) |
| Wire Size | 18–12 AWG |
| Dimensions | Approx. 5.6 × 8.5 × 1.4 in. |
| Mounting | Wall or Ceiling; Outdoor Surface Box Required for Surface Applications |
| Weight | Approx. 1.5 lb (0.68 kg) |
Information About WG4RF-HVMC
The WG4RF-HVMC is an Edwards Genesis WG4 Series notification appliance engineered for outdoor and indoor fire alarm signaling applications requiring both audible and visual notification. Its weather-resistant construction supports operation in environments ranging from -40°F to 151°F (-40°C to 66°C), making it suitable for parking structures, industrial facilities, process areas, loading zones, and other exposed locations. The appliance provides four field-selectable candela settings and selectable audible output, while its flexible mounting arrangement permits wall or ceiling installation with the strobe oriented in any of four positions. Compatibility with regulated 24 VDC and 24 VFWR notification appliance circuits, wide-range field wiring terminals, and applicable UL/ULC signaling requirements supports integration into commercial and industrial life-safety systems.
Key Features:
- Outdoor-rated construction: Designed for reliable fire alarm notification in wet, harsh, and environmentally exposed locations.
- Wide temperature range: Operates from -40°F to 151°F (-40°C to 66°C) for demanding indoor and outdoor applications.
- Combined notification: Integrates a high-output audible horn and flashing visual strobe in one appliance.
- Selectable candela output: Provides four field-adjustable light-output settings to accommodate installation requirements.
- Visible setting indication: Selected candela value can be viewed through the appliance viewport after installation.
- 3.2 kHz horn output: Produces a strong audible fire alarm signal suitable for areas with elevated ambient noise.
- Selectable sound level: Supports field adjustment of audible output according to notification and installation requirements.
- Flexible orientation: Supports wall or ceiling mounting with the strobe positioned in any of four orientations.
- 24-volt operation: Designed for nominal 24 VDC or 24 VFWR notification appliance circuits.
- FIRE identification: Red housing incorporates FIRE marking for clear identification as a fire alarm notification device.
- Standard field wiring: Accommodates 18 to 12 AWG conductors for practical installation and circuit continuation.
- Listed notification design: Designed for applicable UL 1971, UL 1638, UL 464 and Canadian notification appliance requirements.
The WG4RF-HVMC delivers the reliability and precision required for audible and visual fire alarm notification in outdoor, wet, industrial, and other harsh environments.
