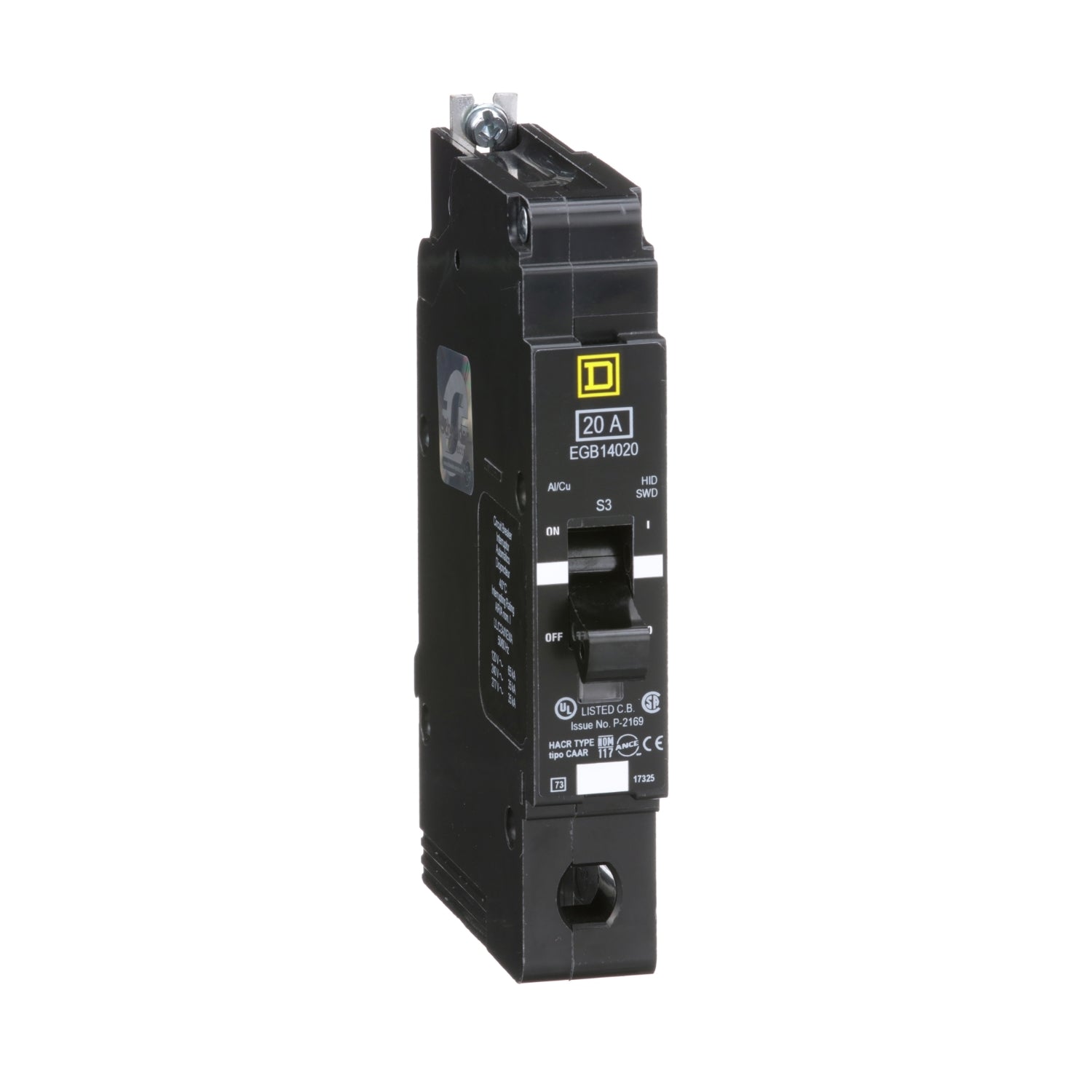

EGB14020 | Schneider Electric 20A 277V 1-Pole High-Interrupting EGB Series Bolt-On MCCB
- Regular price
- $81.00
- Sale price
- $81.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EGB14020
Description
The Schneider Electric EGB14020 is a 20-amp, 277-volt molded case circuit breaker designed to provide high-performance overcurrent protection in commercial and industrial applications. This single-pole breaker uses thermal-magnetic trip technology to respond effectively to overloads and short-circuit faults. With a bolt-on mounting configuration and a high interrupting rating of 35 kA at 480 V, the EGB14020 delivers robust protection for demanding electrical systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | EGB14020 |
| Subcategory | Molded Case Circuit Breaker |
| Family | EGB Series |
| Type | EGB |
| Voltage Rating | 277 V |
| Amperage Rating | 20 A |
| Phase | 1-Phase |
| Number of Poles | 1 |
| AIC Rating | 35 kA @ 480 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Connection Type | Bolt-On |
| Mounting Style | Panelboard / MCCB Installation |
| Temperature Rating | 40 °C |
| Application | Commercial and industrial high-interrupting branch-circuit protection |
Information About EGB14020
The EGB14020 is part of Schneider Electric’s EGB Series, a high-interrupting line of molded case breakers engineered for reliability in single-phase branch-circuit applications. Its compact design and bolt-on connection allow secure installation into compatible panelboards while ensuring stable electrical contact. Featuring LI trip functions, the breaker offers both long-time overload response and instantaneous short-circuit protection. With its elevated interrupting capacity of 35 kA at 480 V, the EGB14020 is well-suited for systems requiring enhanced fault-clearing capability.
Key Features:
- EGB Series high-interrupting design: Supports demanding commercial and industrial installations.
- 20A, 277V rating: Suitable for single-phase lighting and branch-circuit protection.
- Thermal-magnetic trip unit: Provides overload and instantaneous short-circuit protection.
- 35 kA interrupt rating: Safely clears high fault currents to enhance system reliability.
- Single-pole configuration: Designed for individual circuit protection.
- Bolt-on connection: Ensures secure mounting in compatible panelboards.
- LI trip functions: Includes long-time and instantaneous characteristics for precise protection.
The EGB14020 delivers the reliability and precision required for high-interrupting molded case circuit protection.
