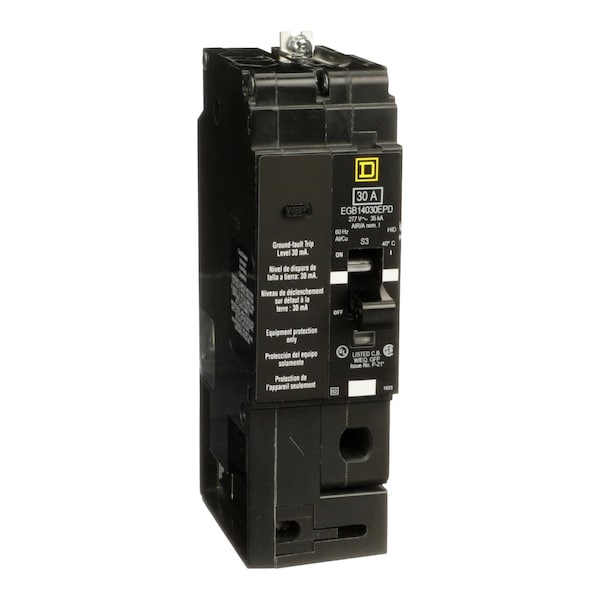

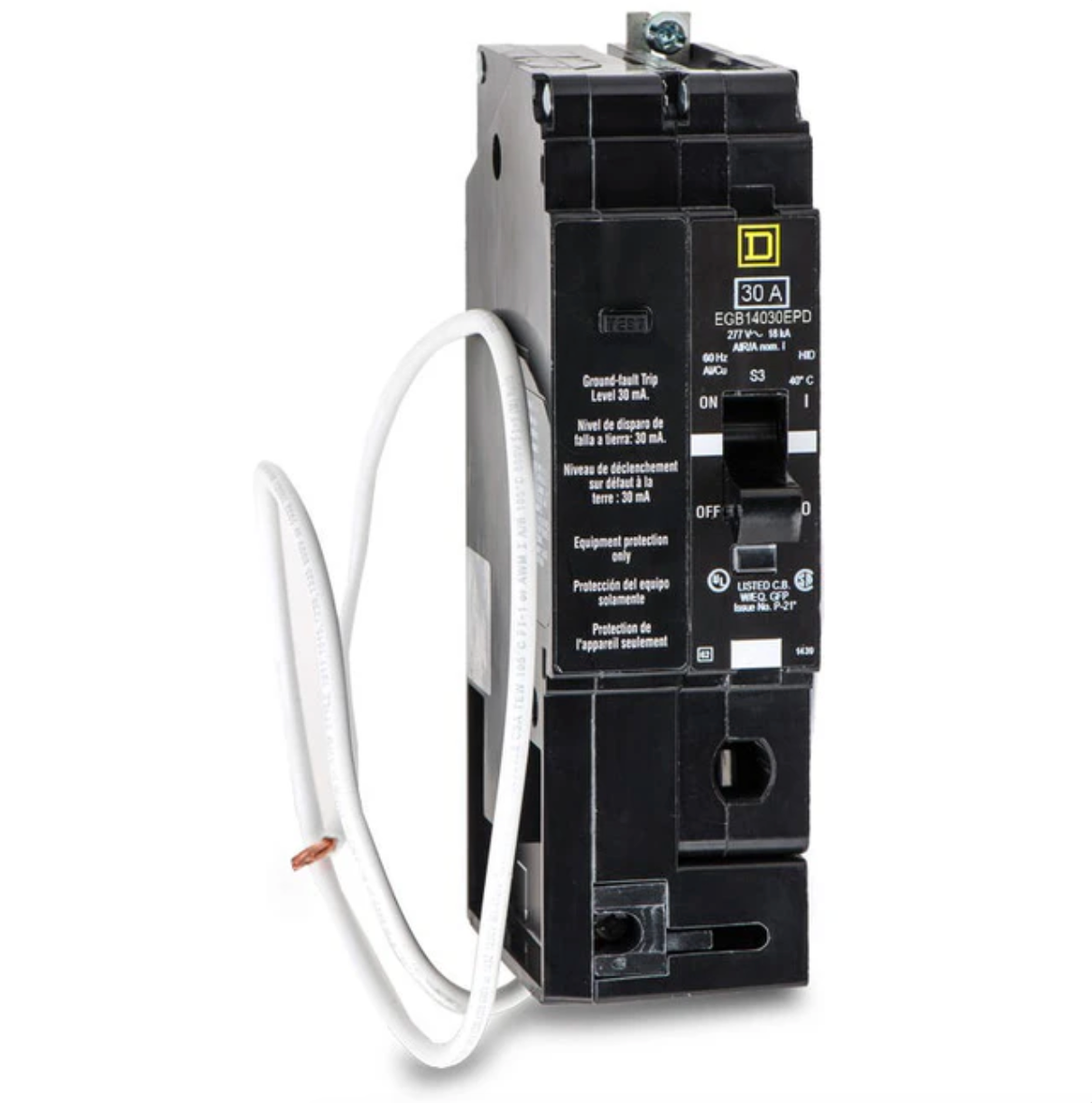

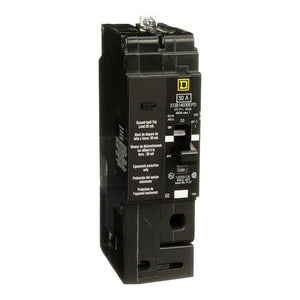

EGB14030EPD | Square D 30A 1-Pole 277 VAC Molded Case Circuit Breaker, Thermal Magnetic, Bolt-On
- Regular price
- $1,704.00
- Sale price
- $1,704.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EGB14030EPD
Description
The Square D EGB14030EPD is a 1-pole molded-case circuit breaker rated for 30 amps at 277 VAC. It provides reliable overload, short-circuit, and ground-fault protection for lighting and power distribution systems. With its bolt-on mounting and thermal-magnetic trip technology, the EGB14030EPD ensures safe and consistent performance in commercial and industrial electrical installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | EGB14030EPD |
| Subcategory | Molded Case |
| Series | EGB Series |
| Frame Type | E-Frame |
| Poles | 1 |
| Amperage Rating | 30 A |
| Voltage Rating | 277 VAC |
| Phase | 1 |
| Interrupting Rating | 35 kAIC @ 480 V |
| Trip Functions | Long Time & Instantaneous |
| Protection Type | Thermal Magnetic |
| Ground Fault Protection | 30 mA |
| Mounting Type | Bolt-On |
| Connection Type | Lug |
| Wire Range | AWG 14–6 Cu / AWG 12–4 Al |
| Operating Temperature | –25 °C to 70 °C (–13 °F to 158 °F) |
| Panel Compatibility | Square D NF Panelboards |
| Certifications | cULus, HACR, RoHS |
| Country of Origin | Mexico |
| Dimensions (H × W) | 6.64 in × 1.96 in |
| Weight | 2 lb |
Information About EGB14030EPD
The EGB14030EPD is part of Square D’s E-Frame EGB Series—engineered for use in NF panelboards and other lighting distribution equipment. This molded-case breaker offers long-time and instantaneous trip functions, providing dependable protection in single-phase 277 V AC systems. Built with a bolt-on connection and calibrated for 40 °C operation, it meets cULus and HACR standards for safety and performance. Its design allows for use with both copper and aluminum conductors, ensuring flexibility across a variety of installation environments.
Key Features:
- High Interrupting Capacity: Rated 35 kAIC at 480 V for dependable fault protection.
- Thermal-Magnetic Protection: Combines long-time and instantaneous trip functions for precise circuit safety.
- Bolt-On Mounting: Secures easily in NF panelboards with strong electrical contact.
- Ground-Fault Protection: 30 mA sensitivity enhances personnel and equipment safety.
- Wide Wire Range: Supports AWG 14 to 6 Cu and AWG 12 to 4 Al conductors.
- Rugged E-Frame Construction: Designed for long-term reliability in demanding electrical environments.
- Certified Performance: cULus and HACR rated, meeting North American safety standards.
- Temperature-Rated Calibration: Factory-set for 40 °C ambient operation.
The EGB14030EPD delivers the reliability and precision required for dependable overcurrent and ground-fault protection in commercial power systems.
