Part #: EGB24020 Manufactured by: Schneider Electric
Regular price
$265.00
Sale price
$265.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The EGB24020 is a two-pole E-Frame Mini Circuit Breaker designed for lighting panelboard applications, specifically within...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: EGB24020
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: EGB24020

Description / Specifications

Description

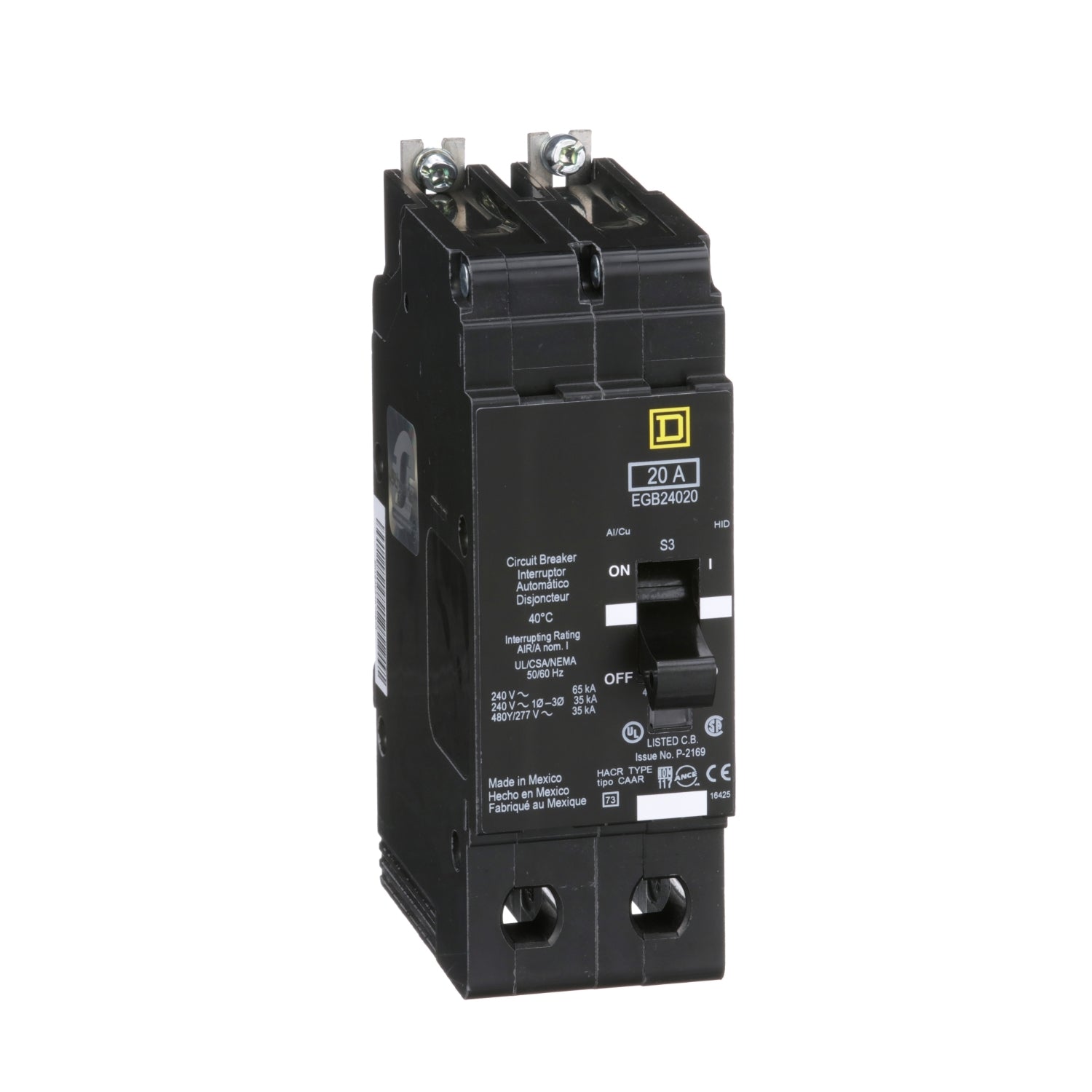

The EGB24020 is a two-pole E-Frame mini circuit breaker designed for use in Square D NF Panelboards, renowned for their reliability and robust features suitable for lighting applications. Featuring a thermal-magnetic trip unit, this breaker provides superior protection against both overload and short circuits. It includes a signal indicator to notify when a trip occurs.

Rated HACR and HID, the EGB24020 operates at 20A with an operating voltage of 480Y/277 VAC. It offers a maximum interrupt rating of 65 kA at 120 VAC and is capable of handling a hold current of up to 270A, ensuring reliable tripping. The trip current is set at 875A. Various accessories are available to enhance its functionality.



Technical Specifications

Part #

EGB24020

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker Range of Product

Product or Component Type

Miniature circuit-breaker

Device short name

EGB

Module type

E-Frame

Trip unit rating

875 A Line

Rated Current

20 A

Maximum Operating Voltage

480Y/277 V AC

Electrical Connection

Lugs aluminum, AWG 12...AWG 6 aluminum, AWG 14...AWG 6 copper

Holding Current

270 A

Local Signaling

Trip indicator

Mounting Mode

Bolt-on

Number of Poles

2

Number of Spaces

2

Number of Spaces Required

2

Product Destination

NF panelboard

Protection Type

Short-circuit, Overload

Trip Unit Technology

Thermal-magnetic

Breaking Capacity Code

G

Tightening Torque

30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)

Height

5.66 in (143.76 mm)

Width

1.96 in (49.78 mm)

Depth

4.05 in (102.87 mm)

Net Weight

3 lb(US) (1.36 kg)





Information About EGB24020

The EGB24020 is a two-pole E-Frame Mini Circuit Breaker designed for use in lighting panelboard applications, specifically tailored for Square D NF Panelboards. Known for their reliability and robust features, E-Frame breakers ensure superior protection against overloads and short circuits. Equipped with a thermal-magnetic trip unit, these breakers include a signal indicator that notifies when a trip event occurs.

Rated as HACR (Heating, Air Conditioning, and Refrigeration) and HID (High Intensity Discharge) compatible, the EGB24020 operates at 20A with an operating voltage of 480Y/277 VAC. It boasts a maximum interrupt rating of 65 kA at 120 VAC. The breaker is designed to withstand a hold current of up to 270A, ensuring reliable tripping when necessary, with a guaranteed trip current of 875A.

This breaker is adaptable with various accessories, enhancing its versatility and application flexibility. Calibrated for optimal performance at 40 degrees Celsius, it meets UL standards for High Intensity Discharge applications.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
