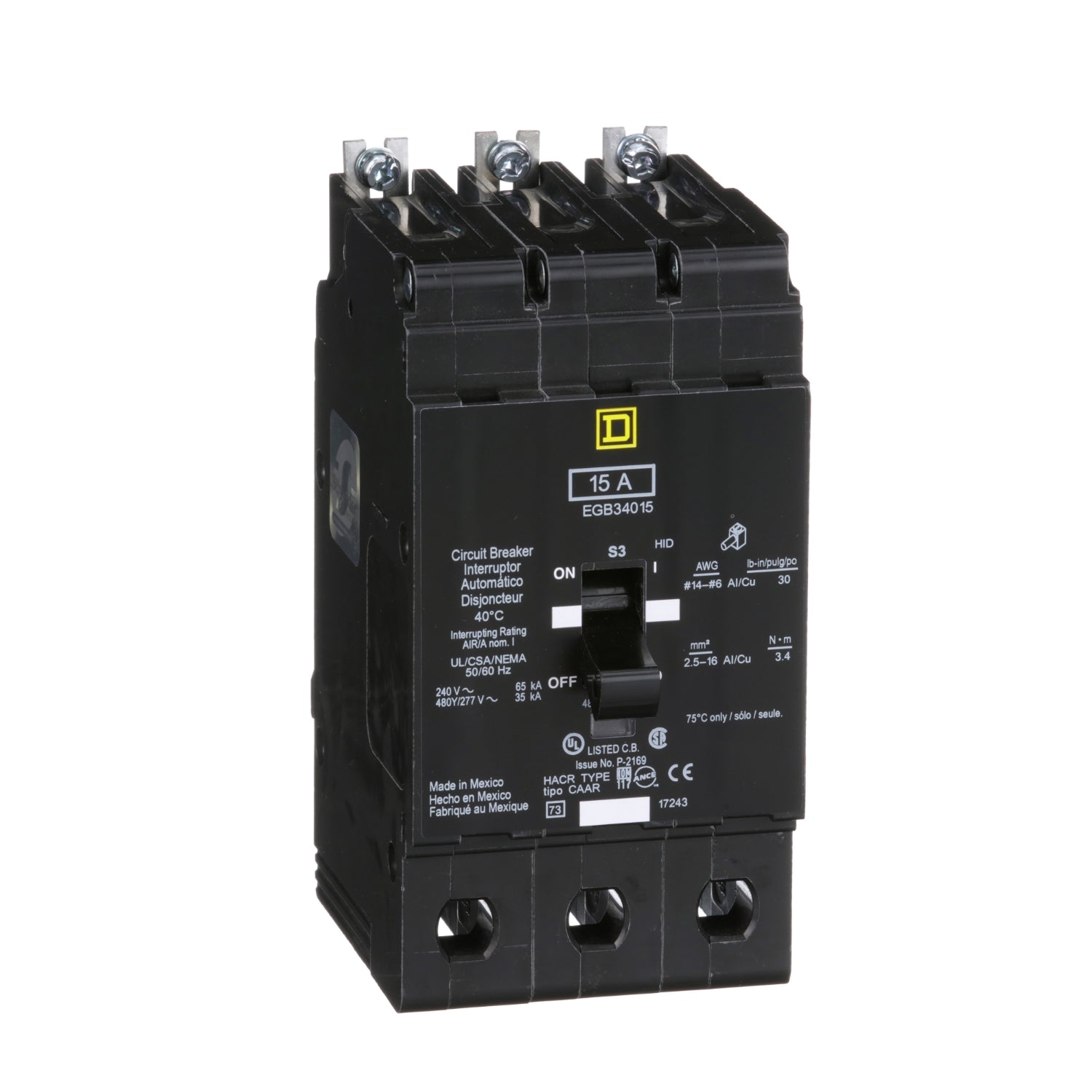

EGB34015 | Schneider Electric Mini Circuit Breaker
- Regular price
- $344.00
- Sale price
- $344.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EGB34015
Description
The EGB34015 is a mini circuit breaker from the E-Frame series, designed for use in Square D NF Panelboards. This three-pole circuit breaker is rated at 15A with an operational voltage of 480Y/277 VAC. It features a 65 kA maximum interrupt rating at 120 VAC. The E-Frame breaker provides reliable overload and short circuit protection and includes a thermal-magnetic trip unit with a signal indicator for trip occurrence. It is HACR and HID rated, with a hold current of 270A and a trip current of 875A. This breaker supports bolt-on mounting and is calibrated for 40 degrees Celsius. The product is UL Listed as High Intensity Discharge and has multiple available accessories.
Technical Specifications
|
Part # |
EGB34015 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range of Product |
125 A Frame EDB-EGB-EJB |
|
Product or Component Type |
Miniature circuit-breaker |
|
Device short name |
EGB |
|
Module type |
E-Frame |
|
Trip unit rating |
875 A |
|
Line Rated Current |
15 A |
|
Maximum Operating Voltage |
480Y/277 V AC |
|
AWG gauge |
AWG 12...AWG 6 aluminium |
|
Electrical connection |
Lugs aluminium |
|
Holding Current |
270 A |
|
Local Signalling |
Trip indicator |
|
Mounting Mode |
Bolt-on |
|
Number of Poles |
3 |
|
Number of Spaces |
3 |
|
Number of Spaces Required |
3 |
|
Product Destination |
NF panelboard |
|
Protection Type |
Short-circuit, Overload |
|
Trip unit technology |
Thermal-magnetic |
|
Breaking Capacity Code |
G |
|
Tightening Torque |
30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6) |
|
Height |
5.66 in (143.76 mm) |
|
Width |
2.94 in (74.68 mm) |
|
Depth |
4.05 in (102.87 mm) |
|
Net Weight |
4 lb (1.81 kg) |
Information About EGB34015
The EGB34015 is a Mini Circuit Breaker, E-Frame, rated at 15A, 3 Pole, 480Y/277 VAC, with a maximum interrupting capacity of 65 kA. E-Frame breakers are designed for lighting panelboards and are used specifically in Square D NF panelboards. These circuit breakers are known for their effectiveness and reliability, providing a wide array of robust features for superior overload and short circuit protection.
E-Frame breakers incorporate a thermal-magnetic trip unit. This trip unit is designed to respond to both overcurrent conditions and short circuits, offering comprehensive protection for electrical systems. Additionally, these breakers include a trip indicator, which provides a visual signal when a trip has occurred. This feature enhances safety and allows for quick identification of circuit interruptions.
The EGB34015 breaker is HACR (Heating, Air Conditioning, and Refrigeration) rated, making it suitable for use in HVAC applications. It is also HID (High Intensity Discharge) rated, indicating its capability to handle the demands of high intensity discharge lighting systems. This breaker has a three-pole configuration and operates at a voltage of 480Y/277 VAC. It provides a maximum interrupting capacity of 65 kA at 120 VAC, ensuring reliable performance under high fault conditions.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
