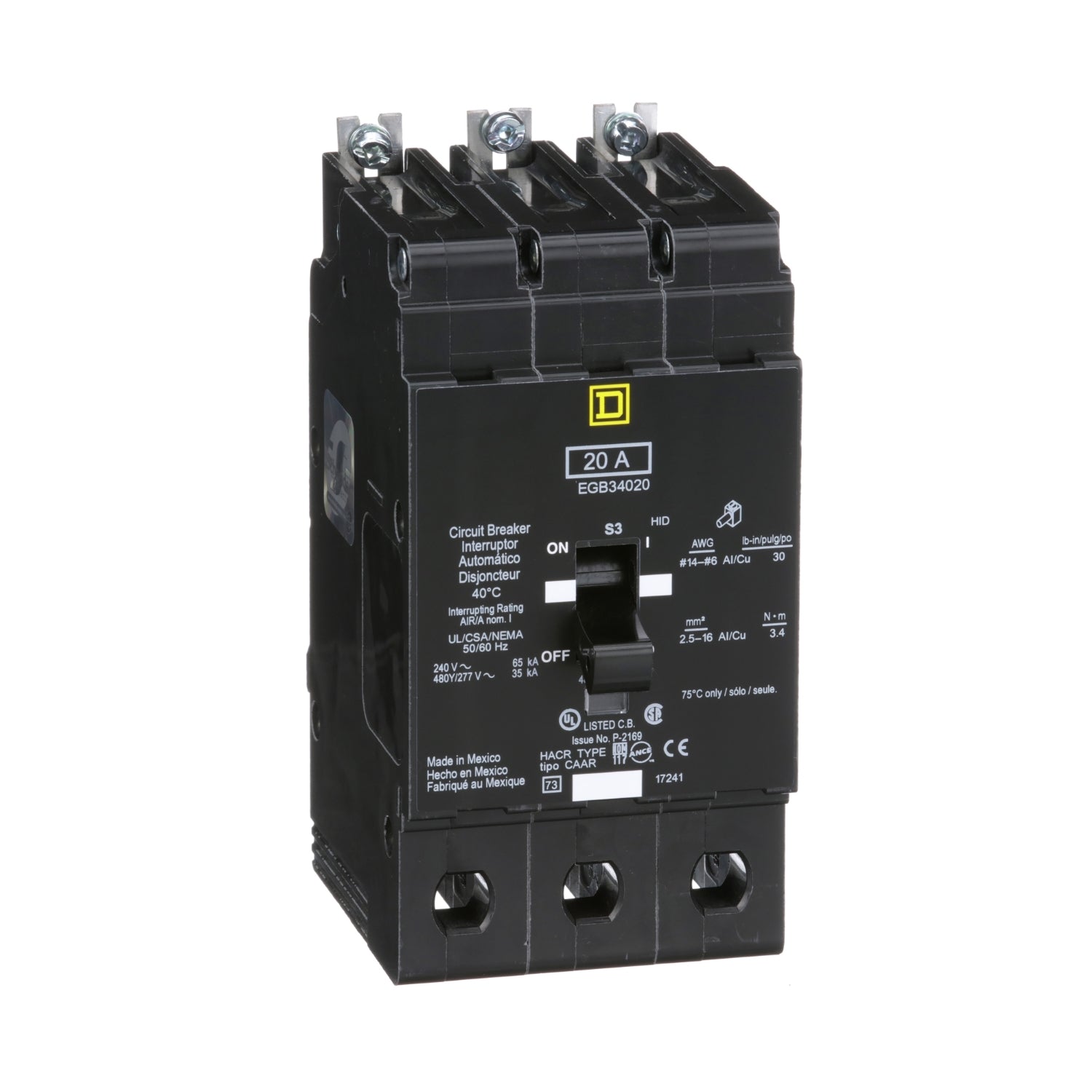

EGB34020 | Schneider Electric EGB Series 3-Pole 20A Thermal Magnetic Molded Case Circuit Breaker Bolt-On
- Regular price
- $284.00
- Sale price
- $284.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EGB34020
Description
The Schneider Electric EGB34020 is a three-pole molded case circuit breaker designed for protection of three-phase electrical distribution systems. It is rated for 20 amps at 277/480 volts and provides thermal magnetic protection with long-time and instantaneous trip functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | EGB34020 |
| Subcategory | Molded Case Circuit Breaker |
| Family | EGB Series |
| Type | EGB |
| Rated Voltage | 277/480 VAC |
| Rated Current | 20 A |
| Interrupt Rating | 35 kA at 480 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Number of Poles | 3 |
| Phase | Three-phase |
| Connection Type | Bolt-On |
| Operating Temperature | 40 °C |
Information About EGB34020
The EGB34020 is part of the Schneider Electric EGB Series, engineered for dependable low-voltage power distribution in industrial and commercial environments. It features a compact molded case design optimized for bolt-on mounting in panelboards and switchgear. The thermal magnetic trip unit provides reliable long-time overload protection and instantaneous short-circuit interruption. This circuit breaker is commonly used in applications requiring high interrupting capacity and secure mechanical mounting for three-phase circuits.
Key Features
- Three-pole molded case design: Provides coordinated protection and disconnection across all phases in three-phase electrical systems.
- 20 amp continuous current rating: Suitable for low-current branch and control circuits in industrial and commercial installations.
- Thermal magnetic protection system: Combines long-time overload sensing with instantaneous short-circuit interruption.
- Long-time and instantaneous trip functions: Ensures dependable response to sustained overcurrent and sudden fault conditions.
- High interrupting capacity: Rated at 35 kA at 480 V for use in systems with elevated available fault current.
- Bolt-on mounting configuration: Provides a secure and vibration-resistant attachment to panel bus structures.
- EGB Series construction: Designed for durability and consistent performance in demanding electrical environments.
The EGB34020 delivers the reliability and precision required for protecting three-phase electrical distribution circuits in industrial and commercial power systems.
