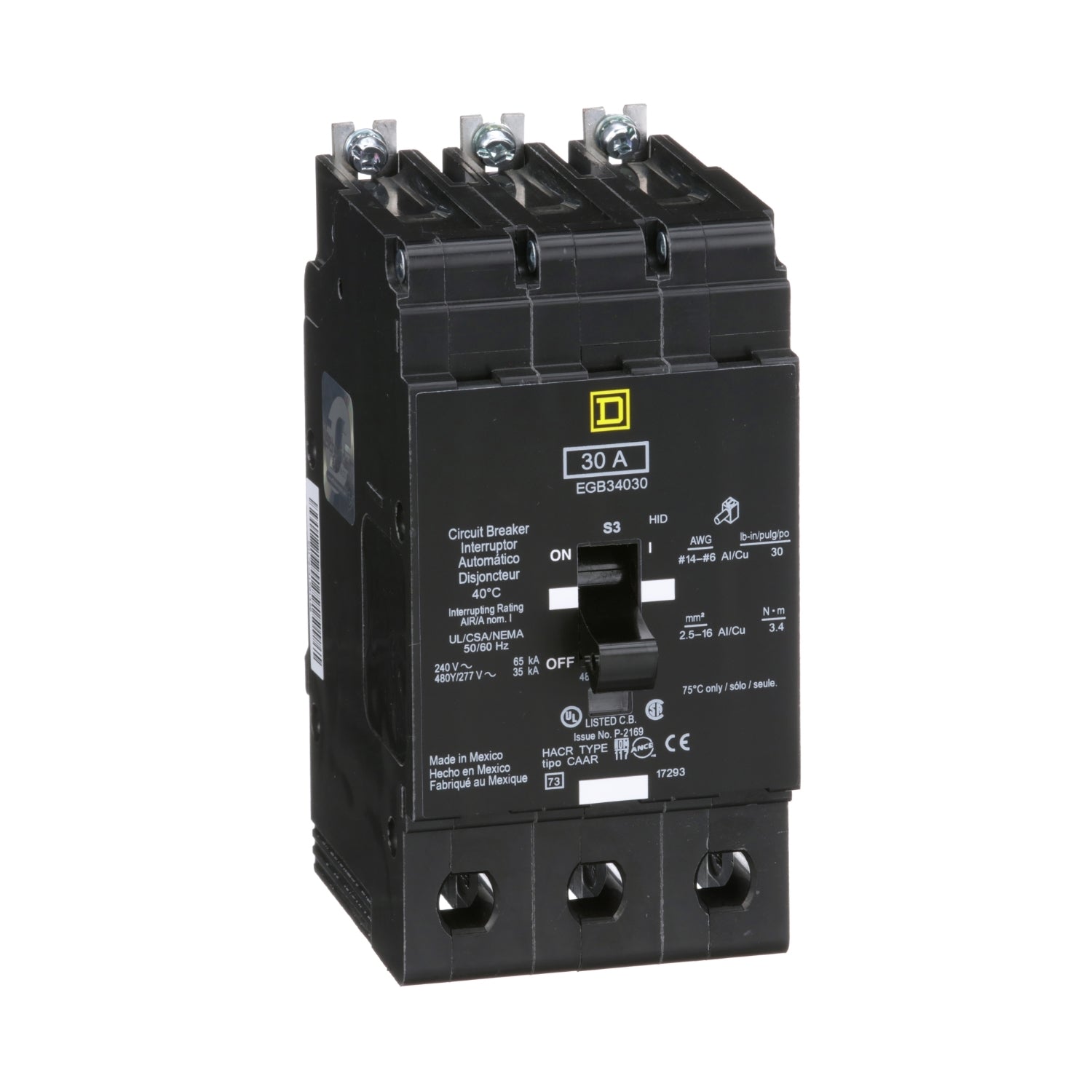

EGB34030 | Schneider Electric Square D E-Frame Molded Case Circuit Breaker 30A 3-Pole 480Y/277V
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EGB34030
Description
The Schneider Electric EGB34030 is a mini molded case circuit breaker designed for lighting and power distribution in Square D NF panelboards. This Schneider Electric Square D part number EGB34030 is rated at 30 amperes with a three-pole configuration and operates at 480Y/277 VAC. It provides thermal-magnetic protection with visual trip indication for reliable fault detection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | EGB34030 |
| Subcategory | Molded Case Circuit Breaker |
| Series / Family | E-Frame (EGB Series) |
| Type | EGB |
| Current Rating | 30 A |
| Voltage Rating | 480Y/277 VAC |
| Number of Poles | 3 |
| Phase | 3 Phase |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Interrupting Capacity | 35 kA @ 480 V, 35 kA @ 277 V, 65 kA @ 240 V, 65 kA @ 120 V |
| Hold Current | 270 A |
| Trip Current | 875 A |
| Mounting Type | Bolt-On |
| HACR Rated | Yes |
| HID Rated | Yes |
Information About EGB34030
The EGB34030 is a molded case circuit breaker from the Schneider Electric Square D E-Frame series, engineered specifically for use in NF lighting panelboards. It incorporates a compact E-Frame design with a fixed thermal-magnetic trip unit that responds accurately to overloads and short-circuit conditions. A built-in trip indicator provides immediate visual confirmation of breaker status, aiding maintenance and troubleshooting. This breaker is commonly installed in commercial and industrial lighting distribution systems requiring high interrupting capacity and dependable protection.
Key Features
- E-Frame series design: Developed for Square D NF panelboard lighting and distribution applications.
- Thermal-magnetic trip unit: Provides dependable long-time overload and instantaneous short-circuit protection.
- 30 ampere current rating: Suitable for lighting and branch circuits with moderate load requirements.
- Three-pole configuration: Ensures coordinated protection across all phases in three-phase systems.
- High interrupting capability: Rated up to 65 kA at lower system voltages for robust fault handling.
- Visual trip indication: Integrated signal indicator simplifies fault identification and servicing.
- HACR and HID ratings: Supports use with heating, refrigeration, and high-intensity discharge lighting loads.
The EGB34030 delivers the reliability and precision required for protecting three-phase lighting and distribution circuits in commercial and industrial electrical installations.
