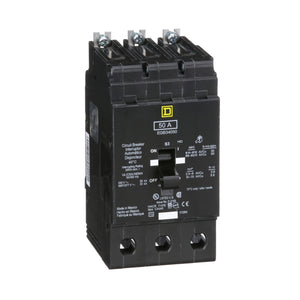

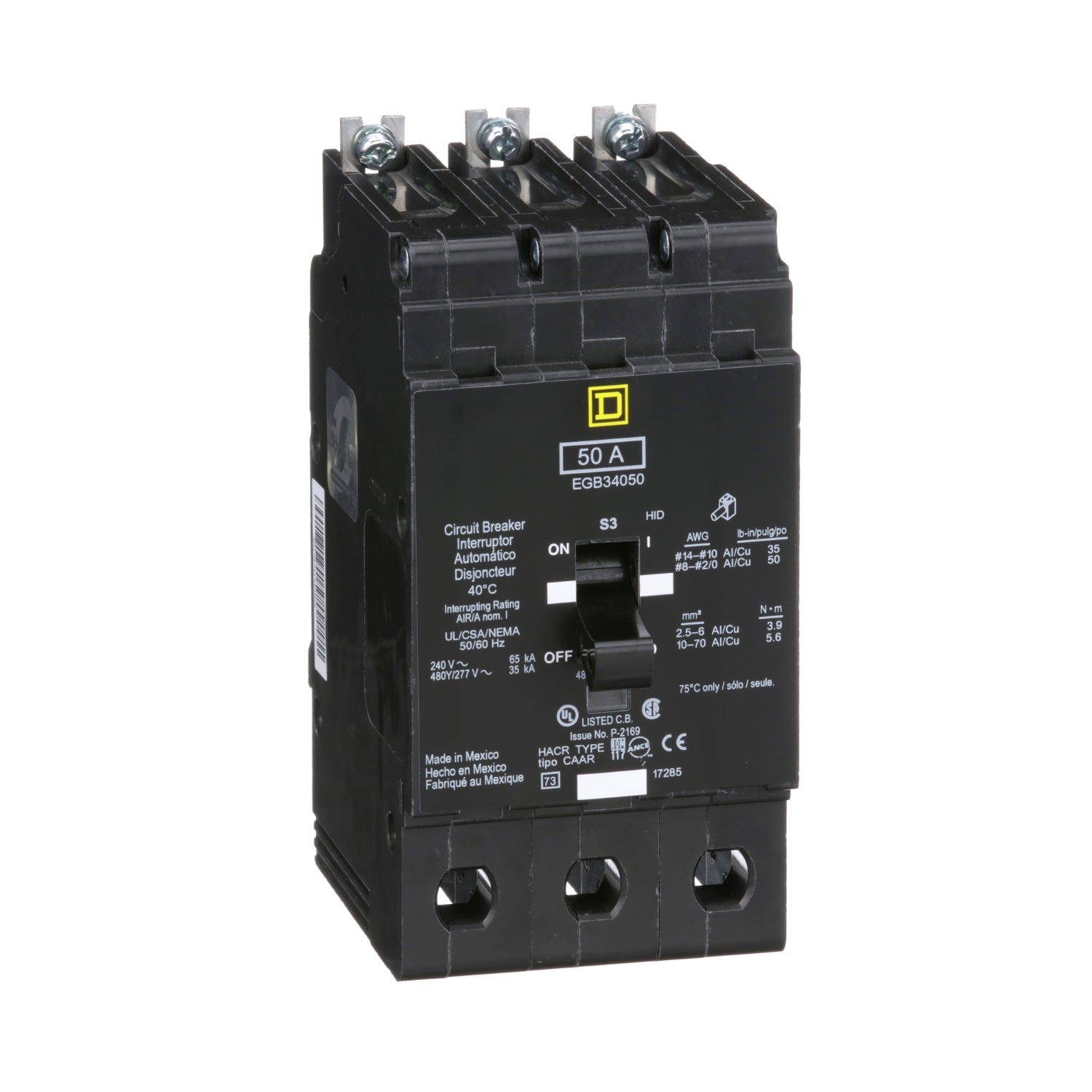

EGB34050 | Schneider Electric Mini Circuit Breaker
- Regular price
- $309.00
- Sale price
- $309.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EGB34050
Description
The EGB34050 is a 50A, 3-pole mini circuit breaker from the E-Frame series, designed for use in Square D NF panelboards. Engineered for lighting panelboard applications, E-Frame breakers provide robust features including thermal-magnetic trip units and trip indicators to signal circuit interruptions. This breaker is rated for HACR and HID applications, with an operational voltage of 480Y/277 VAC. It offers a maximum interrupt rating of 65 kA at 120 VAC, and features a hold current of 630A and a trip current of 1800A.
Technical Specifications
|
Part Number |
EGB34050 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range of Product |
125 A Frame EDB-EGB-EJB |
|
Product or Component Type |
Miniature circuit-breaker |
|
Device short name |
EGB |
|
Module type |
E-Frame |
|
Trip unit rating |
1800 A Line Rated Current |
|
Rated Current |
50 A |
|
Maximum Operating Voltage |
480Y/277 V AC |
|
AWG Gauge |
AWG 12...AWG 2/0 aluminum<br>AWG 14...AWG 2/0 copper |
|
Electrical Connection |
Lugs aluminum |
|
Holding Current |
630 A |
|
Local Signaling |
Trip indicator |
|
Mounting Mode |
Bolt-on |
|
Number of Poles |
3 |
|
Number of Spaces |
3 |
|
Number of Spaces Required |
3 |
|
Product Destination |
NF panelboard |
|
Protection Type |
Short-circuit<br>Overload |
|
Trip Unit Technology |
Thermal-magnetic |
|
Breaking Capacity Code |
G |
|
Height |
5.66 in (143.76 mm) |
|
Width |
2.94 in (74.68 mm) |
|
Depth |
4.05 in (102.87 mm) |
|
Net Weight |
4 lb(US) (1.81 kg) |
Information About EGB34050
The EGB34050 E-Frame circuit breaker is specifically engineered for use in Square D NF Panelboards, offering robust features tailored for lighting panelboard applications. Designed to deliver superior protection against overloads and short circuits, all E-Frame breakers are equipped with a thermal-magnetic trip unit and a signal indicator that alerts when a trip occurs. This breaker is both HACR (Heating, Air Conditioning, and Refrigeration) and HID (High Intensity Discharge) rated, ensuring versatility and reliability across different electrical environments.
Rated at 50A for a three-pole configuration, the EGB34050 operates at an operational voltage of 480Y/277 VAC. It boasts a maximum interrupt rating of 65 kA at 120 VAC, making it suitable for demanding industrial and commercial applications. The breaker has a hold current of 630A, which defines the maximum current it can sustain without tripping, and a trip current of 1800A, the threshold at which the breaker is guaranteed to trip.
