EGB34060 | Schneider Electric Mini Circuit Breaker
- Regular price
- $330.00
- Sale price
- $330.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

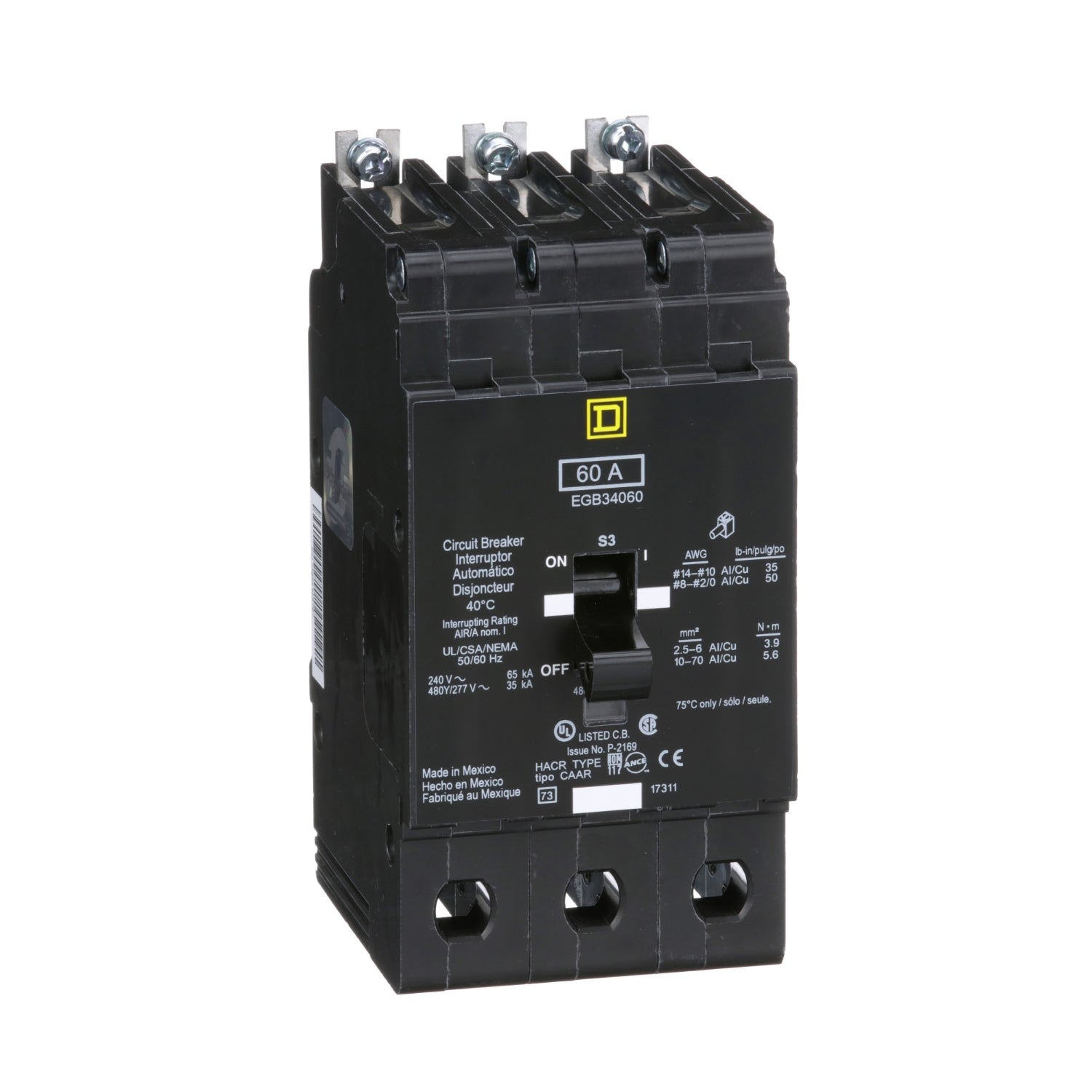

Product Description P/N: EGB34060
Description
The EGB34060 is a Mini Circuit Breaker from the E-Frame series, rated at 60 amperes and configured with 3 poles. It operates at a maximum voltage of 480Y/277 VAC and provides a 65 kA maximum interrupt rating at 120 VAC. The breaker is specifically designed for use in Square D NF Panelboards, offering reliable overload and short circuit protection.
The E-Frame breakers feature a thermal-magnetic trip unit and include a signal indicator that activates when a trip occurs. This specific breaker is HACR rated and HID rated, ensuring compliance with industry standards for various applications. The device is calibrated for optimal performance at 40 degrees Celsius.
The electrical characteristics include a holding current of 630A, which is the maximum current the breaker can sustain without tripping. The trip current is set at 1800A, guaranteeing the breaker will trip under excessive current conditions. The breaker utilizes a bolt-on mounting mode for secure installation within the panelboard.
Technical Specifications
|
Part # |
EGB34060 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range of Product |
125 A Frame EDB-EGB-EJB |
|
Product or Component Type |
Miniature circuit-breaker |
|
Device short name |
EGB |
|
Module type |
E-Frame |
|
Trip unit rating |
1800 A |
|
Line Rated Current |
60 A |
|
Maximum operating voltage |
480Y/277 V AC |
|
Circuit breaker application |
HACR rated |
|
Electrical connection |
Lugs aluminium |
|
Holding Current |
630 A |
|
Local signalling |
Trip indicator |
|
Mounting Mode |
Bolt-on |
|
Number of poles |
3 |
|
Number of spaces |
3 |
|
Number of spaces required |
3 |
|
Product destination |
NF panelboard |
|
Protection Type |
Overload, Short-circuit |
|
Trip unit technology |
Thermal-magnetic |
|
Breaking capacity code |
G |
|
Height |
5.66 in (143.76 mm) |
|
Width |
2.94 in (74.68 mm) |
|
Depth |
4.05 in (102.87 mm) |
|
Net Weight |
4 lb (1.81 kg) |
Information About EGB34060
The EGB34060 is a miniature circuit breaker from the E-Frame series, rated at 60A with three poles and an operational voltage of 480Y/277 VAC. This circuit breaker is specifically designed for use in Square D NF Panelboards and offers robust features to ensure reliable performance. The E-Frame breakers, including this model, provide superior protection against overloads and short circuits.
This breaker incorporates a thermal-magnetic trip unit, which provides effective circuit protection by responding to both overcurrent and short-circuit conditions. The thermal element of the trip unit responds to overload conditions by heating and bending a bimetallic strip, which triggers the trip mechanism. The magnetic element responds to short-circuit conditions by producing a magnetic field that moves a plunger to trip the breaker.
The EGB34060 features a local trip indicator, which provides a visual indication when the breaker has tripped. This feature enhances the safety and reliability of the breaker by allowing for quick identification of tripped conditions. The device is also HACR (Heating, Air Conditioning, and Refrigeration) rated, making it suitable for use in HVAC applications, and HID (High Intensity Discharge) rated, ensuring it can handle the demands of lighting circuits.
