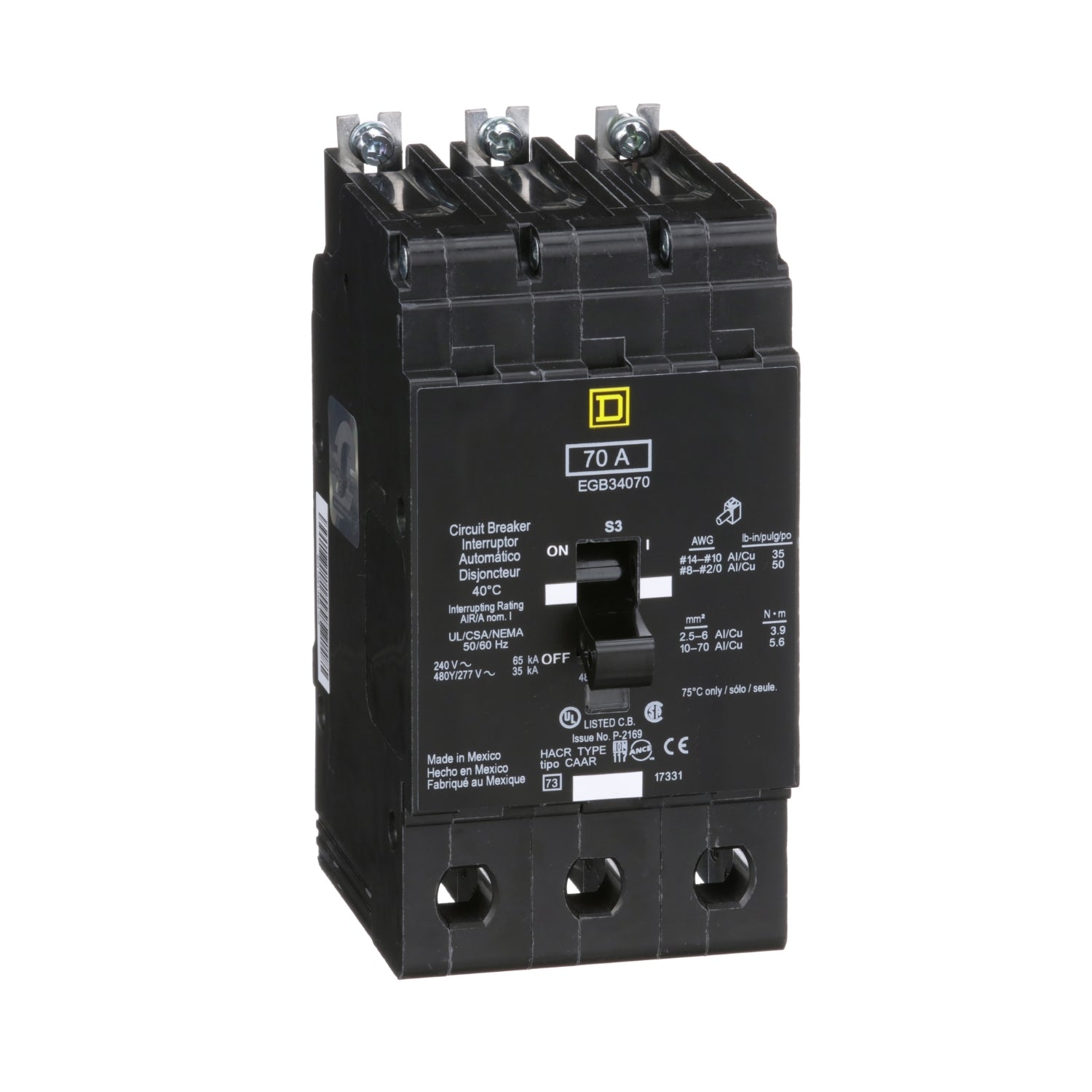

EGB34070 | Schneider Electric Mini Circuit Breaker
- Regular price
- $379.00
- Sale price
- $379.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EGB34070
Description
The EGB34070 is an E-Frame Mini Circuit Breaker designed for lighting panelboard applications, particularly suited for Square D NF Panelboards. Known for their reliability, E-Frame breakers offer robust features tailored for superior overload and short circuit protection. Equipped with a thermal-magnetic trip unit and a signal indicator, they promptly signal in case of a trip event.
This specific breaker is both HACR and HID rated, ensuring compatibility and reliability across various applications. With a rating of 70A and 3 poles, it operates at an operating voltage of 480Y/277 VAC, providing efficient protection within this voltage range. It boasts a maximum interrupt rating of 65 kA at 120 VAC, guaranteeing effective circuit interruption when required.
Technical Specifications
|
Part # |
EGB34070 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range of Product |
125 A Frame EDB-EGB-EJB |
|
Product or Component Type |
Miniature circuit-breaker |
|
Device short name |
EGB |
|
Module type |
E-Frame |
|
Trip unit rating |
1800 A |
|
Line Rated Current |
70 A |
|
Maximum operating voltage |
480Y/277 V AC |
|
AWG gauge |
AWG 12...AWG 2/0 aluminium |
|
|
AWG 14...AWG 2/0 copper |
|
Circuit breaker application |
HACR rated |
|
Electrical connection |
Lugs aluminium |
|
Holding Current |
630 A |
|
Local signalling |
Trip indicator |
|
Mounting Mode |
Bolt-on |
|
Number of poles |
3 |
|
Number of spaces |
3 |
|
Number of spaces required |
3 |
|
Product destination |
NF panelboard |
|
Protection Type |
Short-circuit |
|
Trip unit technology |
Thermal-magnetic |
|
Breaking capacity code |
G |
Information About EGB34070
The EGB34070 Mini Circuit Breaker, belonging to the E-Frame series, is specifically designed for use in Square D NF Panelboards, particularly for lighting panelboard circuits. Renowned for their effectiveness and reliability, E-Frame breakers offer a diverse range of robust features tailored for superior overload and short circuit protection. Equipped with a thermal-magnetic trip unit, these breakers also feature a signal indicator that promptly notifies users in the event of a trip occurrence.
This particular circuit breaker is HACR (Heating, Air Conditioning, and Refrigeration) and HID (High Intensity Discharge) rated, ensuring its suitability for a wide array of applications. Operating at 70A and comprising three poles, it functions within an operational voltage range of 480Y/277 VAC. With a maximum interrupt rating of 65 kA at 120 VAC, it guarantees efficient protection against electrical overloads and short circuits.
For added reliability, the device boasts a hold current capacity of 630A, ensuring that the breaker trips effectively when required. Its trip current is set at 1800A, providing a benchmark for guaranteed tripping under specified conditions. Furthermore, users benefit from a selection of available accessories, enhancing the breaker's versatility and adaptability to varying installation requirements.
